Test Procedure

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

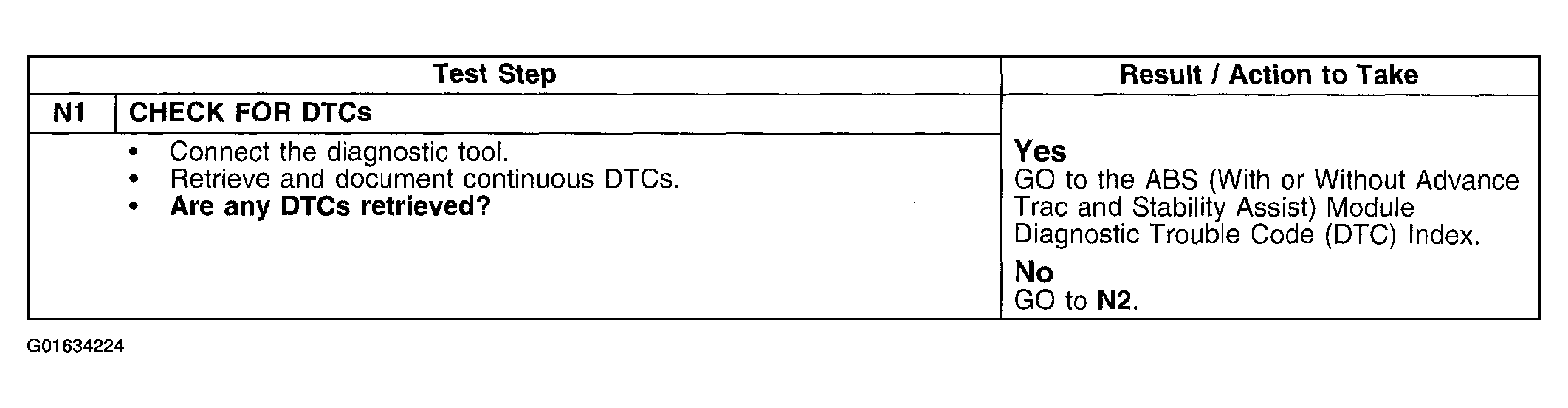

Fig 1: Pinpoint Test N: The Advance Trac Is Inoperative (Step L1)
G01634224Courtesy of FORD MOTOR CO.

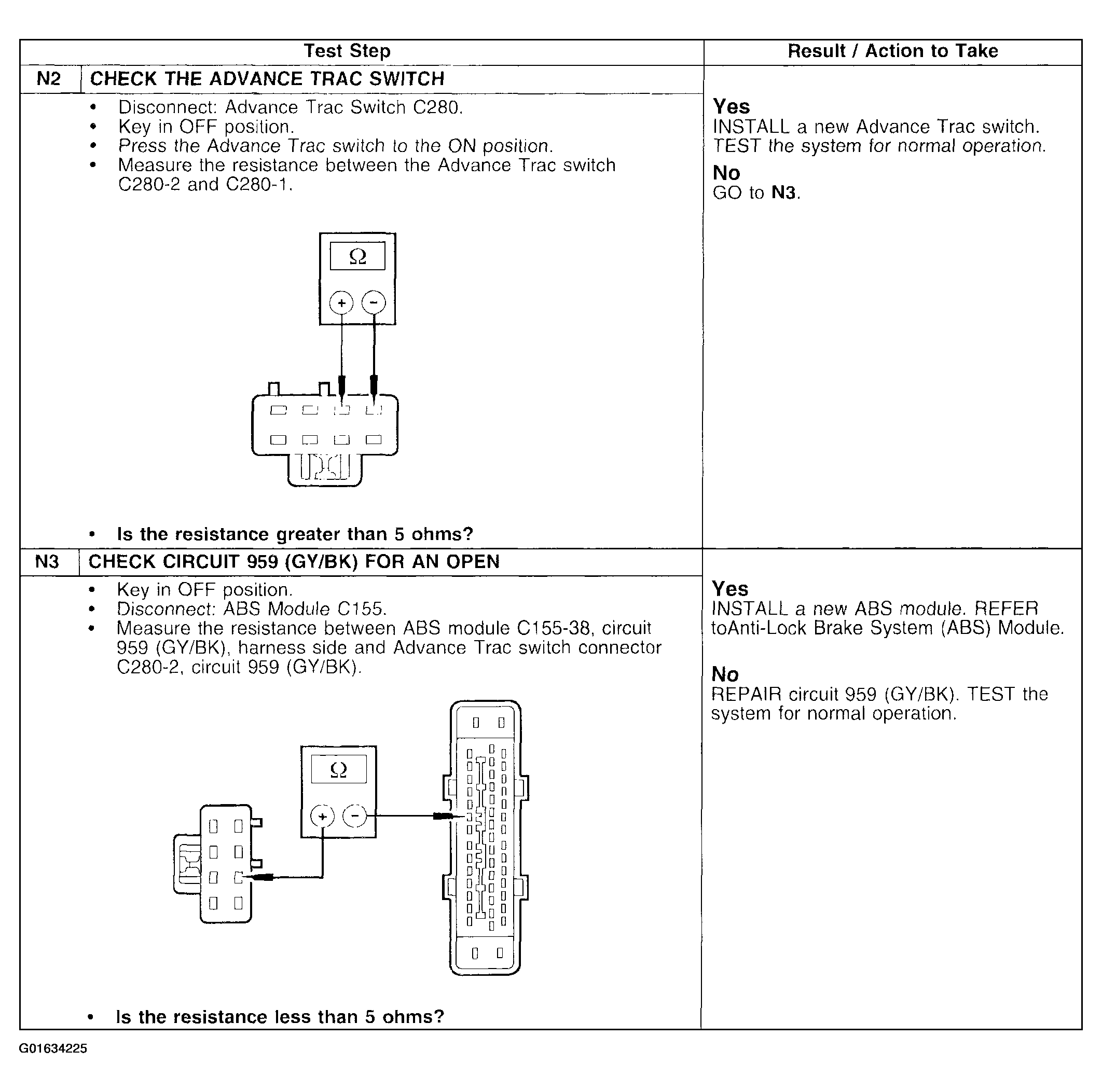

Fig 2: Pinpoint Test N: The Advance Trac Is Inoperative (Steps L2 & L3)
G01634225Courtesy of FORD MOTOR CO.
