Seat Position Sensor: Installation

WARNING: This page is about a different car, the 2005 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat position sensor.
    1. Install the magnet assembly onto the pivot and slide forward.
    2. Install the bolt.
    3. Position the sensor and engage the retaining tab.
    4. Install the bolt.
    5. Connect the electrical connector.

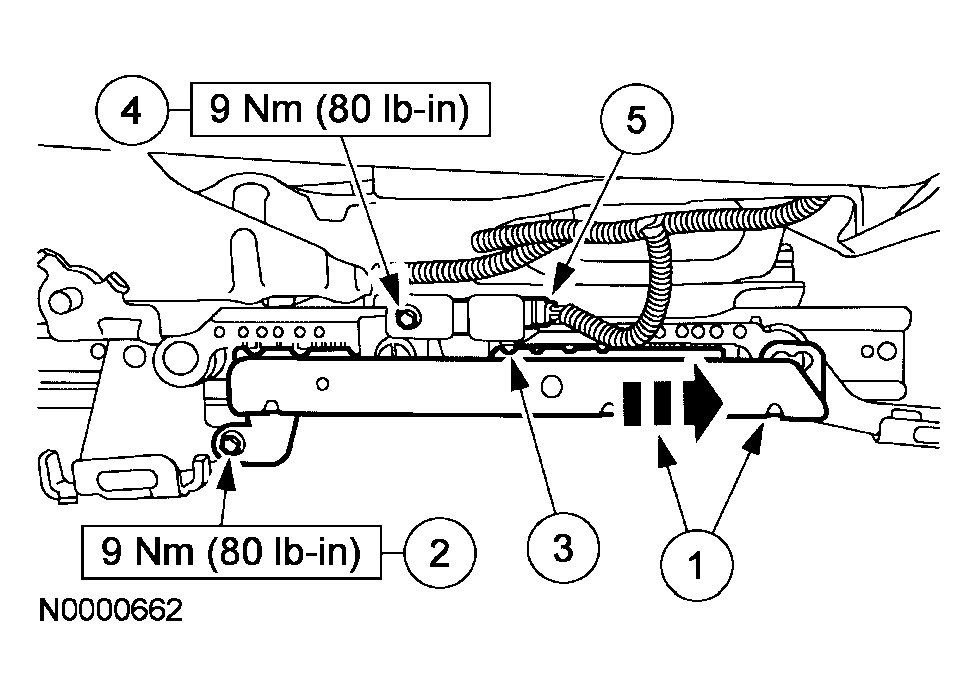

    Fig 1: Installing Seat Position Sensor
    G03881300Courtesy of FORD MOTOR CO.
  2. Repower the system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
