Removal and Installation

WARNING: This page is about a different car, the 2005 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery. For additional information, Refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the driver seat. For additional information, Refer to SEATING .
  3. Remove the DSM.
    1. Disconnect the electrical connectors.
    2. Remove the screws.

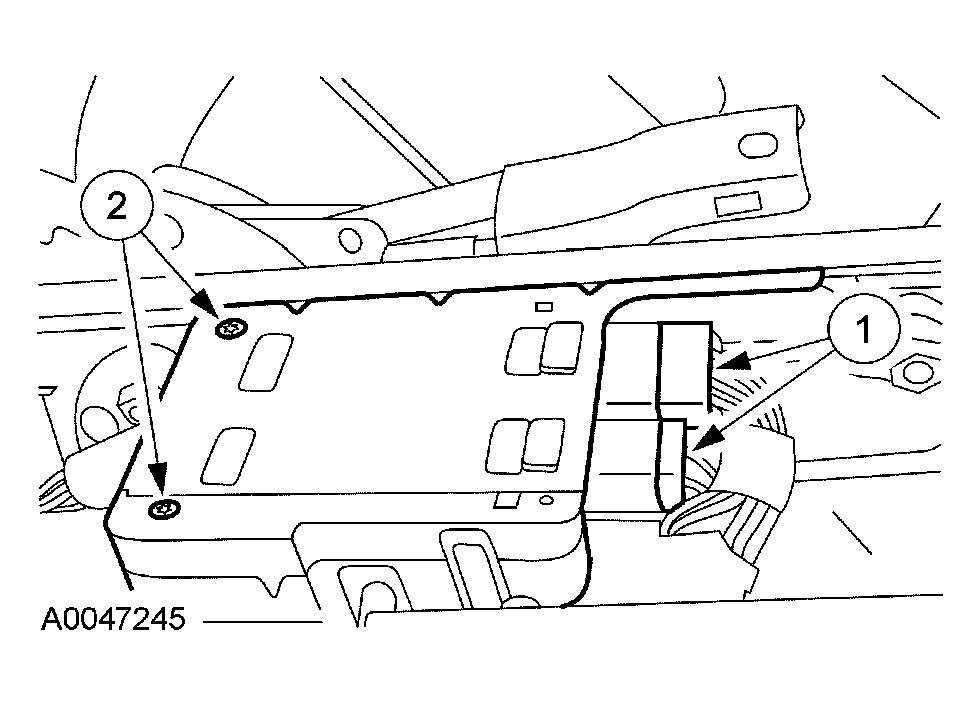

    Fig 1: Removing DSM
    G04003791Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
