Item 18: Quick Connect Fitting Removal Note

  1. Unclip the tab.

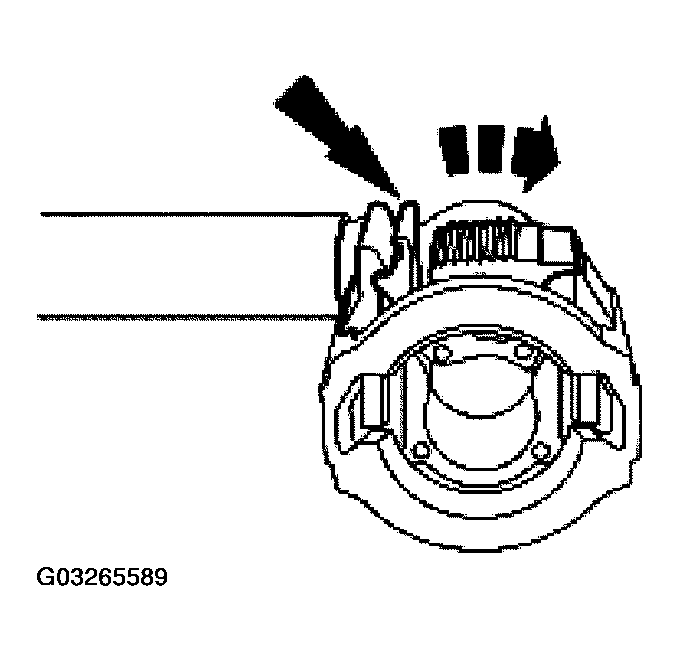

    Fig 1: Unclipping Tab
    G03265589Courtesy of FORD MOTOR CO.
  2. Depress the tabs and press the clip downward.

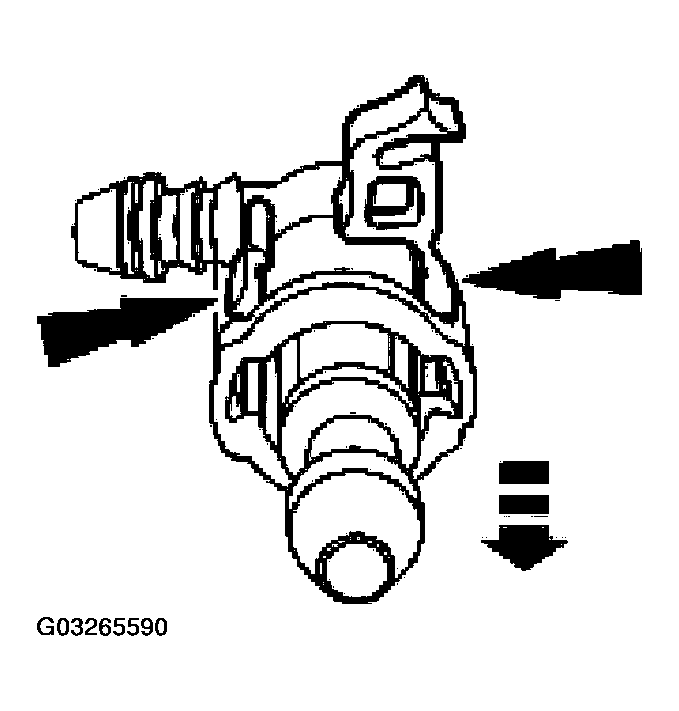

    Fig 2: Depressing Tabs And Pressing Clip Downward
    G03265590Courtesy of FORD MOTOR CO.
  3. Separate the fittings.

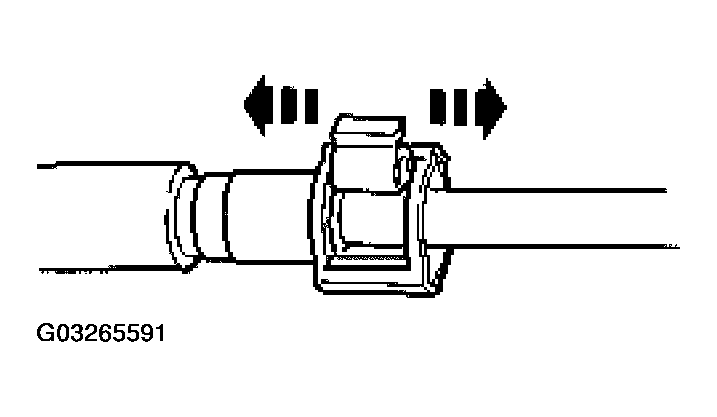

    Fig 3: Separating Fittings
    G03265591Courtesy of FORD MOTOR CO.
