Accessory Drive

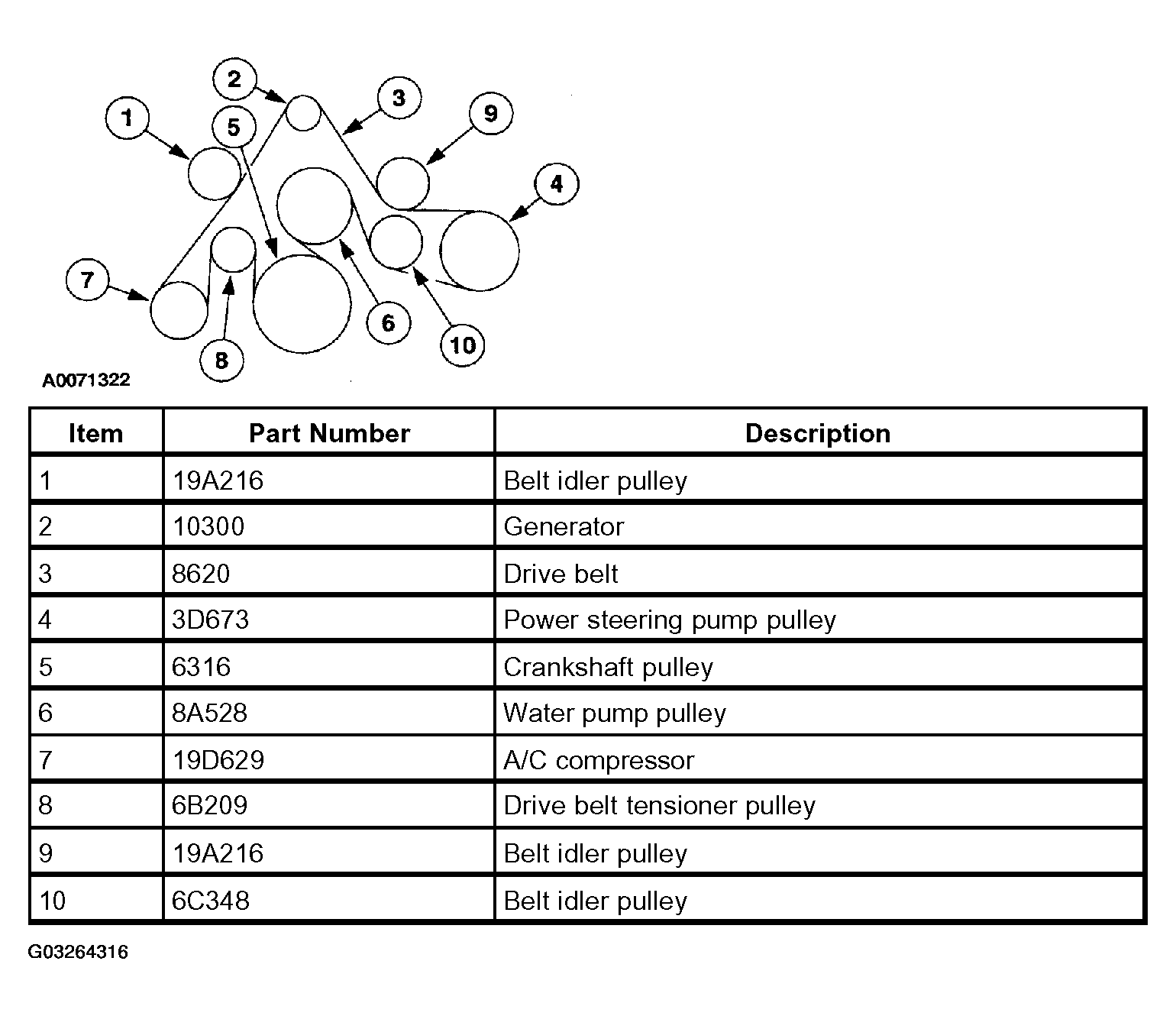

Fig 1: Accessory Drive Belt Routing

G03264316

Courtesy of FORD MOTOR CO.

The accessory drive:

Has a single serpentine drive belt (six ribs).
Has an automatic tensioner.
Is not adjustable.
