Cooling Fan: Notes

Fig 1: Identifying Special Tool(s)
G03264893Courtesy of FORD MOTOR CO.
  1. Remove the parts in the order indicated in the following illustration and table.

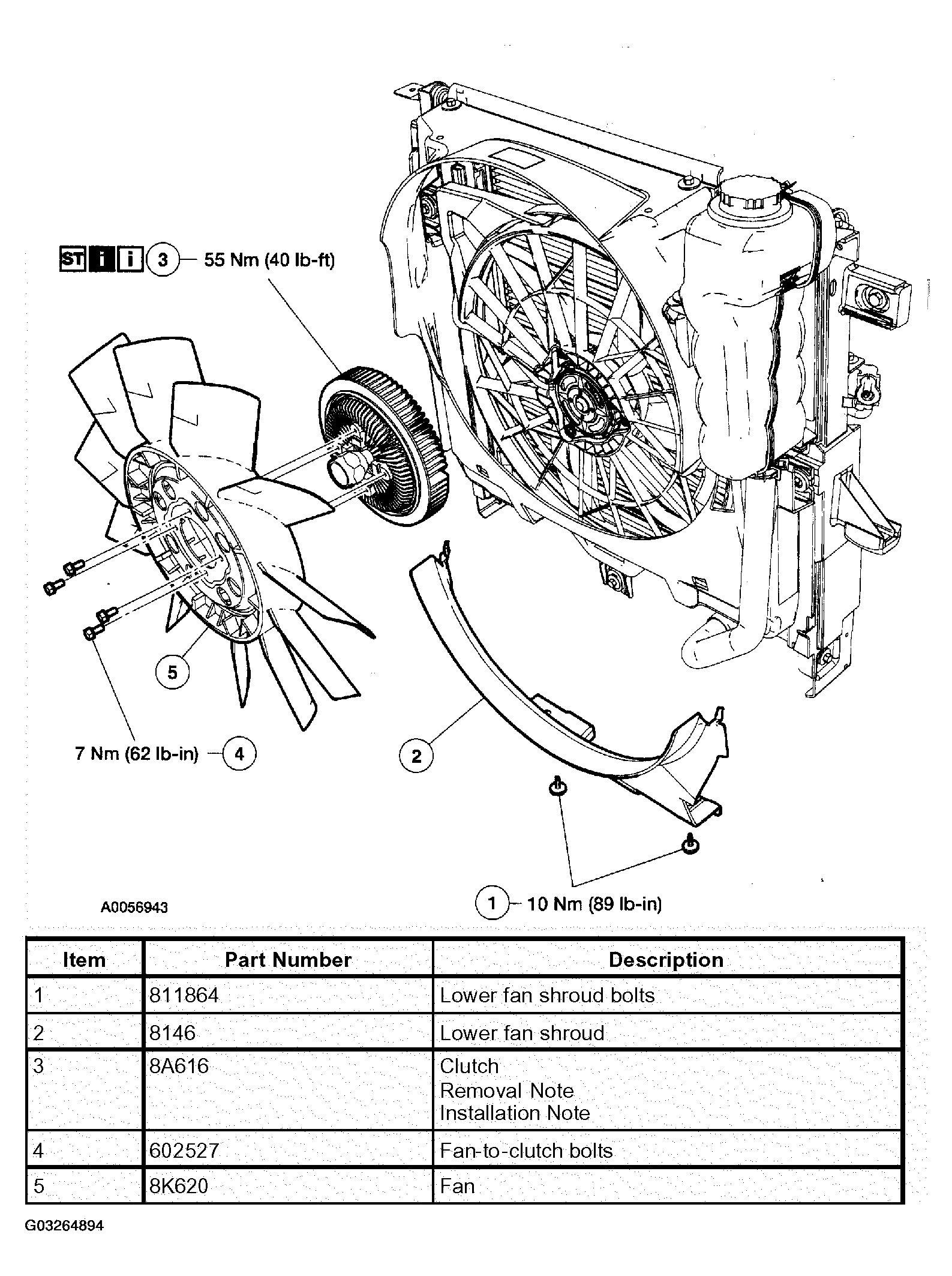

    Fig 2: Removing Cooling Fan Components
    G03264894Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
