Item 5 And 8: Front Axle Assembly Isolation Bushing Installation Note

  1. Set the new bushing in the housing bore and install the special tools. Align the arrow marks on the special tool with the index mark on the axle housing.

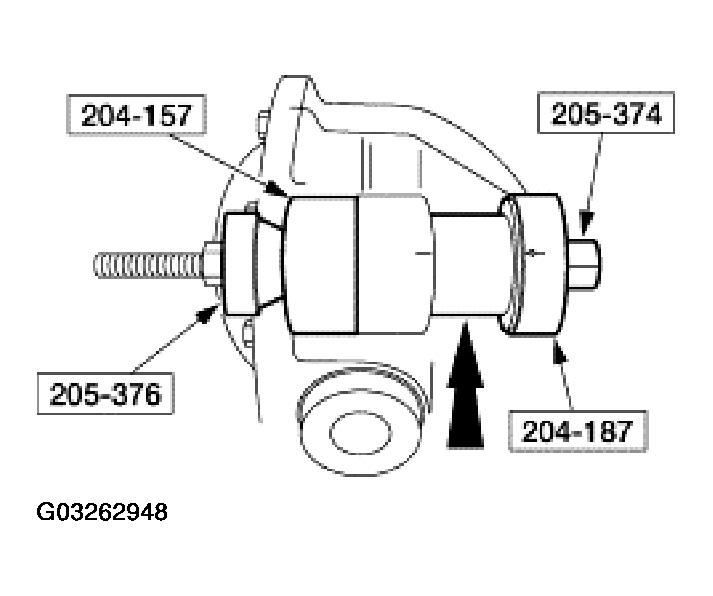

    Fig 1: Aligning Arrow Mark With Index Mark
    G03262948Courtesy of FORD MOTOR CO.
  2. Draw the bushing into the housing to the gap measured earlier in this procedure.

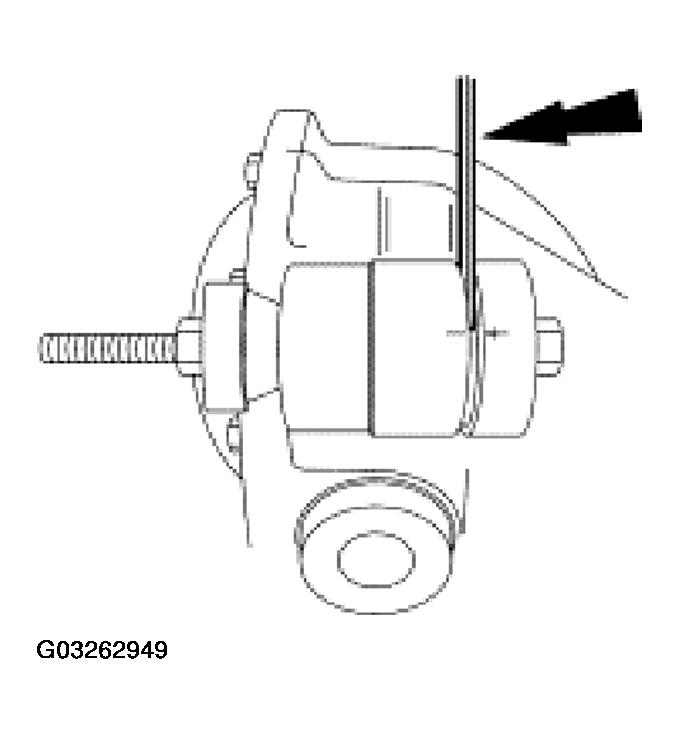

    Fig 2: Drawing Bushing Into Housing To Gap Measured Earlier
    G03262949Courtesy of FORD MOTOR CO.
