Item 30: Axle Isolator Bushing Assembly Note

  1. Using the special tools, install the rear axle isolator bushing.

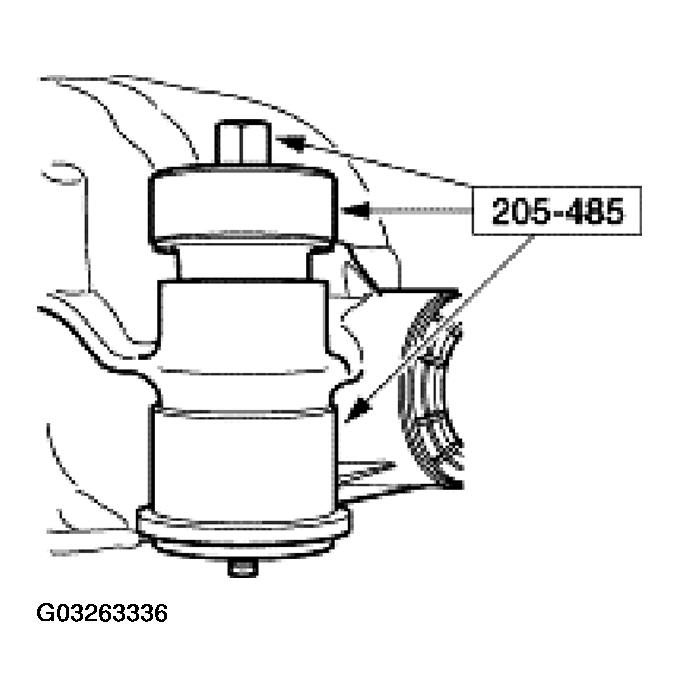

    Fig 1: Installing Rear Axle Isolator Bushing
    G03263336Courtesy of FORD MOTOR CO.
