Front Axle Differential Case: Material

MATERIAL CHART

Item Specification
SAE 80W-90 Premium Front Axle Lubricant XL-80W90-QL WSP-M2C197-A
  1. Remove the differential case from the differential housing. For additional information, refer to FRONT AXLE ASSEMBLY .
  2. Remove the parts in the order indicated in the following illustration and table.

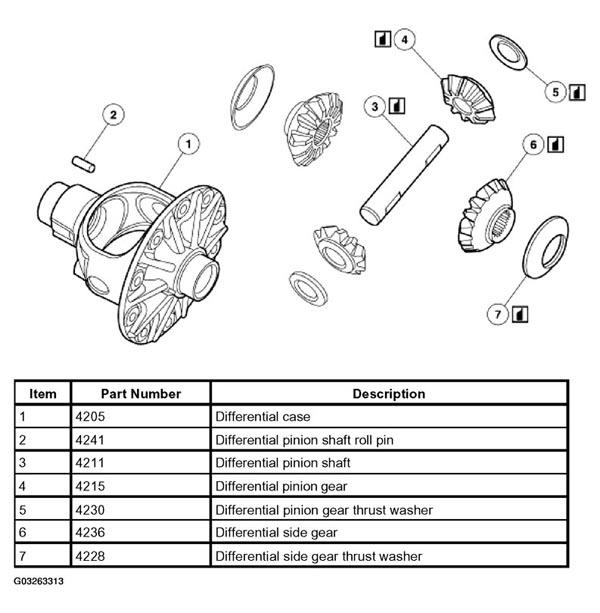

    Fig 1: Disassemble Order Of Front Axle Differential Case Components
    G03263313Courtesy of FORD MOTOR CO.
  3. To assemble, reverse the disassembly procedure.
