Home >> Lincoln >> 2004 >> Aviator AWD >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Driveline System >> Disassembly And Assembly >> Front Axle Assembly >> Special Tool(s)

Special Tool(s)

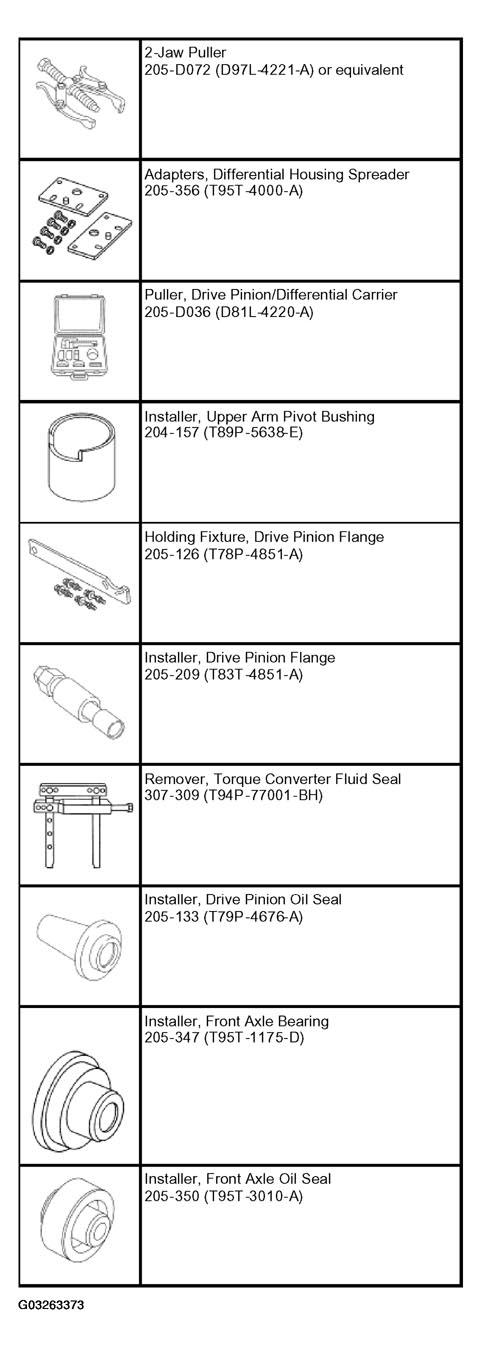

Fig 1: Identifying Special Tool(s) (1 Of 3)
G03263373Courtesy of FORD MOTOR CO.

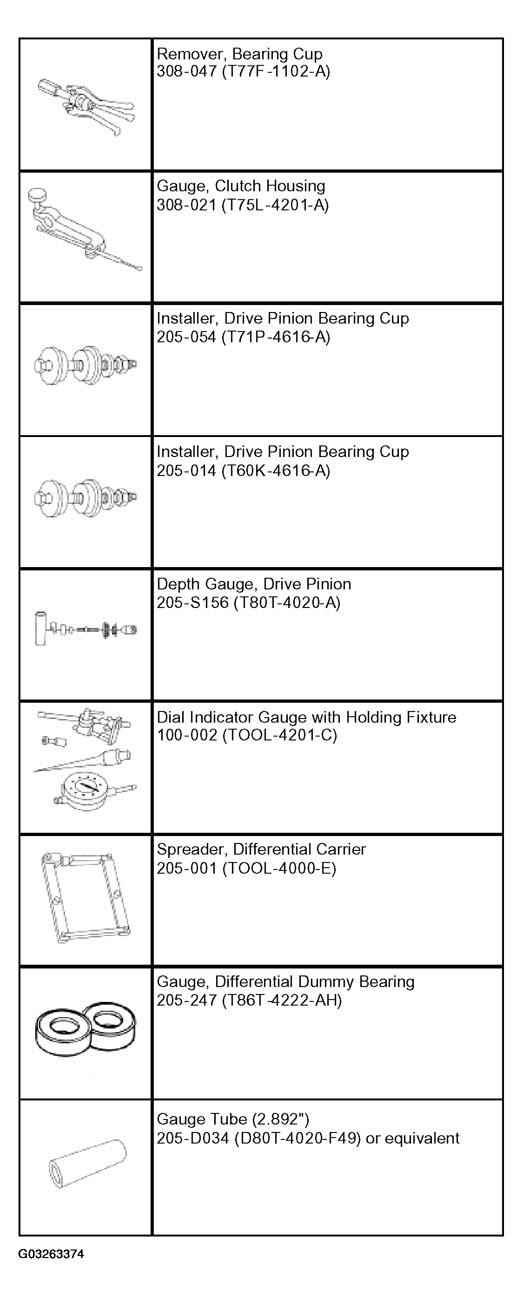

Fig 2: Identifying Special Tool(s) (2 Of 3)
G03263374Courtesy of FORD MOTOR CO.

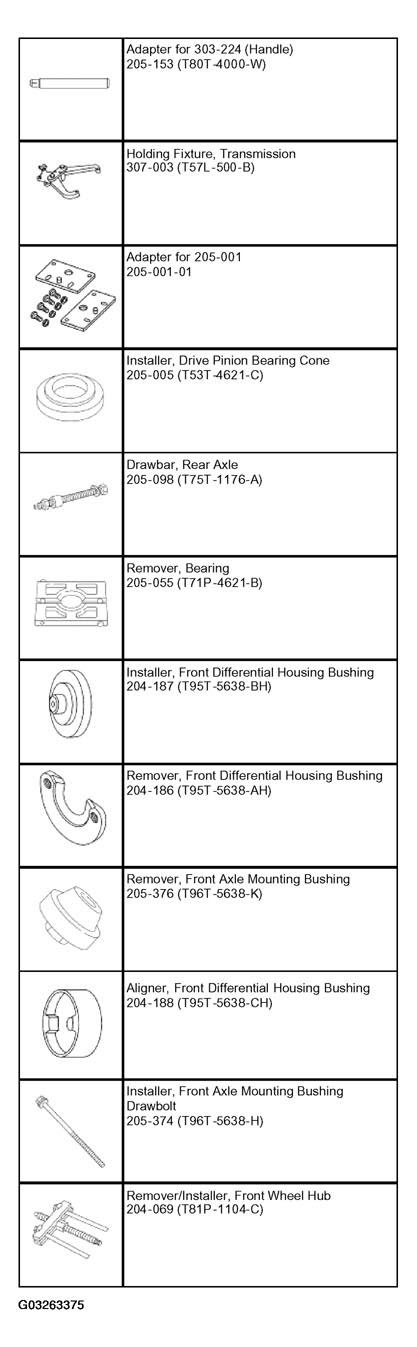

Fig 3: Identifying Special Tool(s) (3 Of 3)
G03263375Courtesy of FORD MOTOR CO.
