Vehicle Security Module C3008a

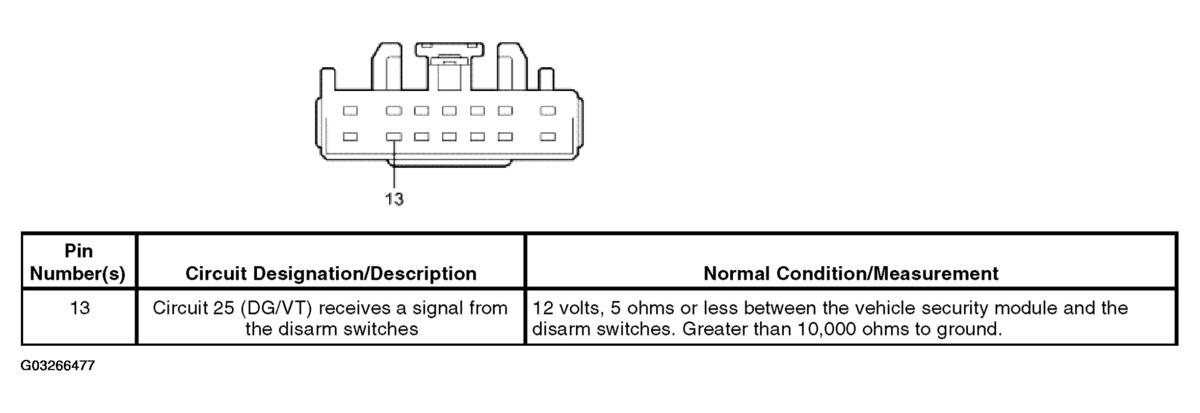

Fig 1: Identifying Vehicle Security Module C3008a

G03266477

Courtesy of FORD MOTOR CO.
