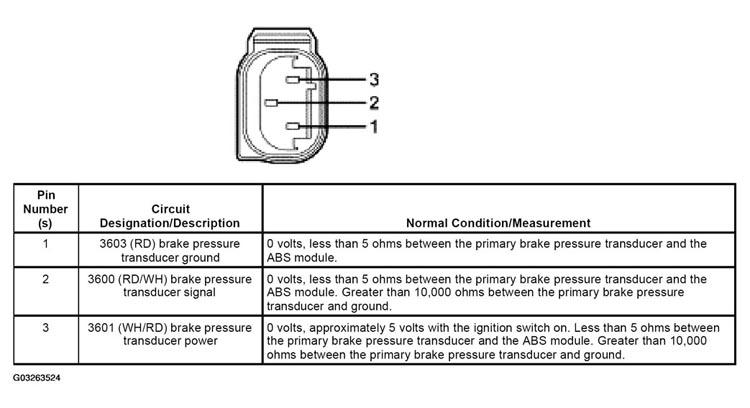

Home >> Lincoln >> 2004 >> Aviator AWD >> Repair and Diagnosis (Single Page) >> Brakes >> Traction Control >> Anti-Lock Control >> Diagnosis And Testing >> Anti-Lock Control >> Connector Circuit Reference Table >> Primary Brake Pressure Transducer C147
