Home >> Lincoln >> 2003 >> Town Car Protection Series >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission External Controls >> Diagnosis And Testing >> External Controls >> Pinpoint Test C

Pinpoint Test C

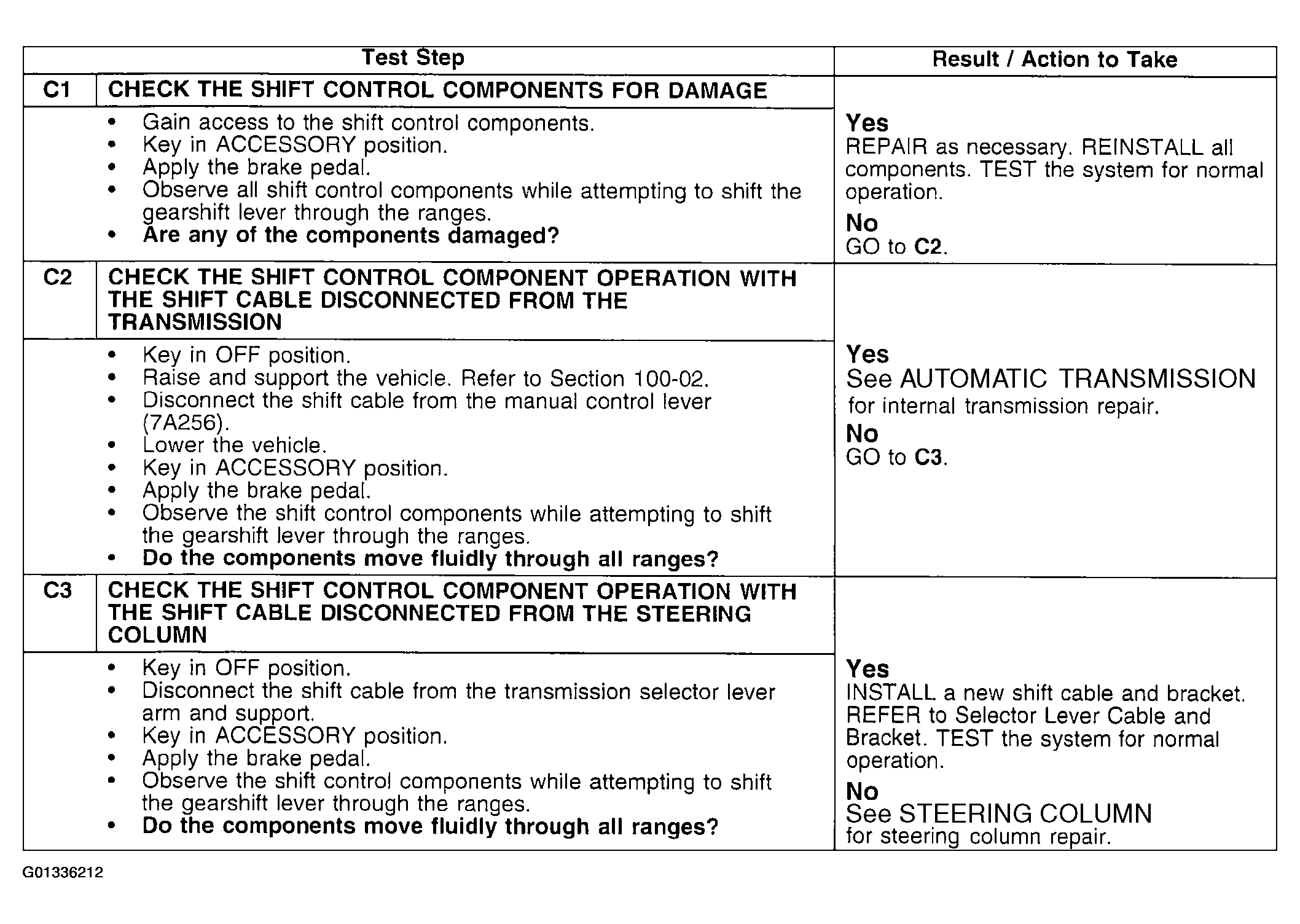

Fig 1: Pinpoint Test C: The Control Linkage Is Binding

G01336212

Courtesy of FORD MOTOR CO.
