Symptom Chart

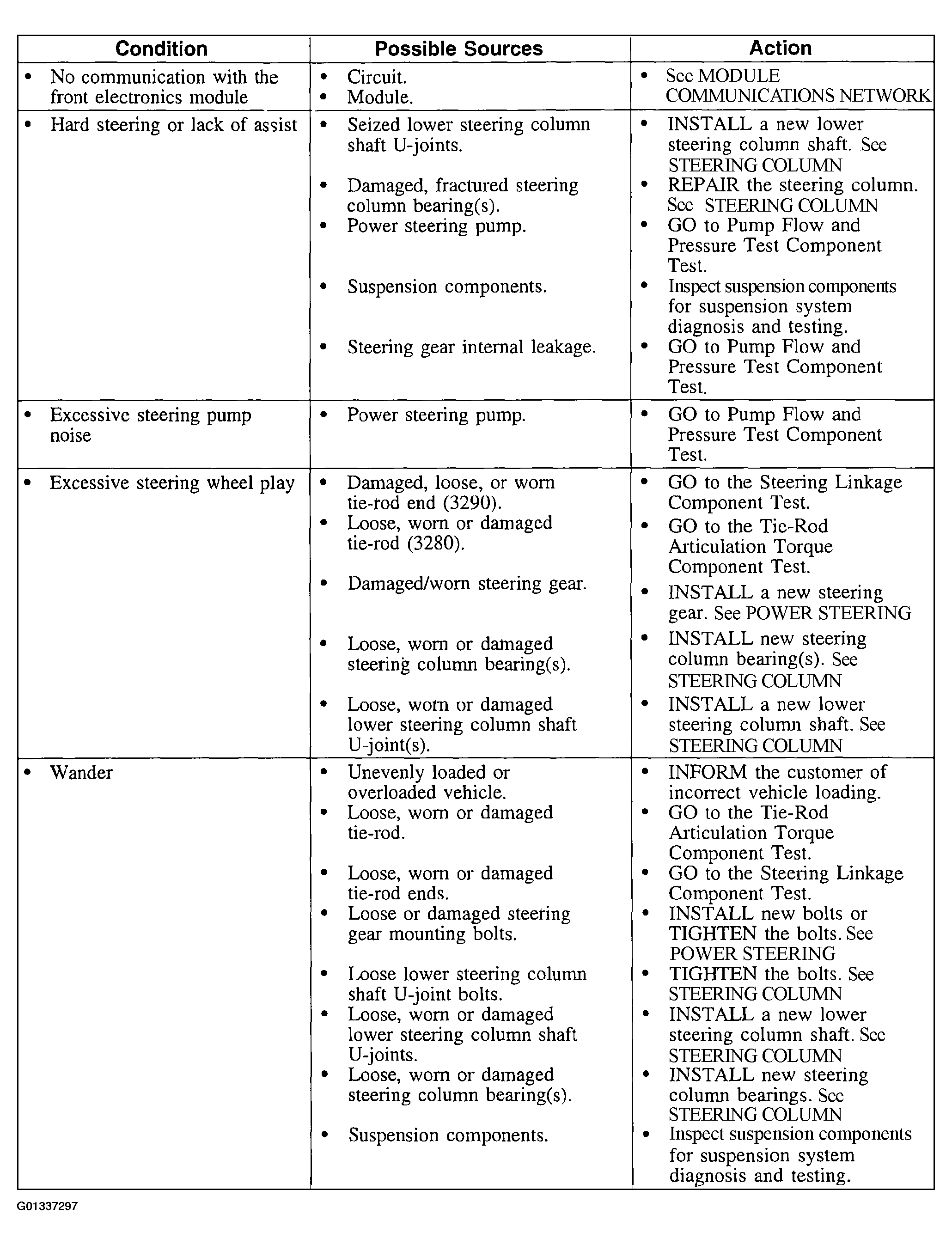

Fig 1: Symptom Chart (1 Of 3)

G01337297

Courtesy of FORD MOTOR CO.

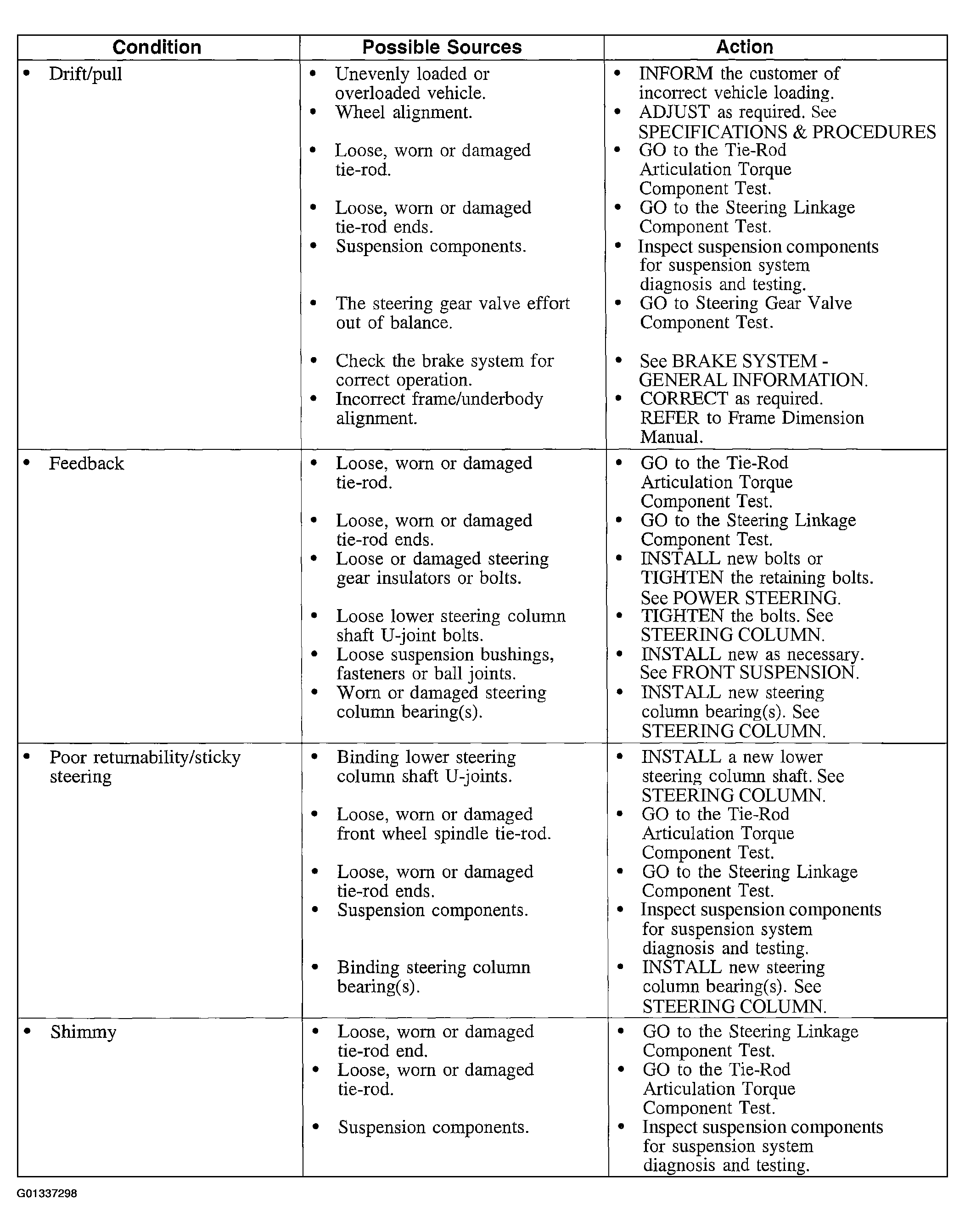

Fig 2: Symptom Chart (2 Of 3)

G01337298

Courtesy of FORD MOTOR CO.

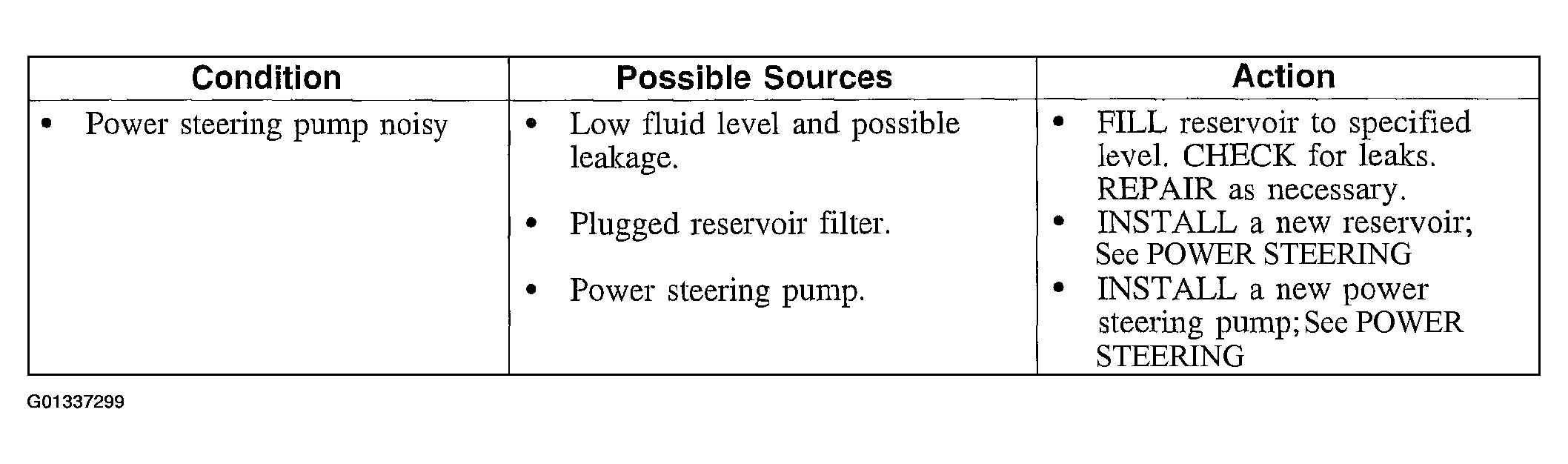

Fig 3: Symptom Chart (3 Of 3)

G01337299

Courtesy of FORD MOTOR CO.
