Blower Motor Resistor C293
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

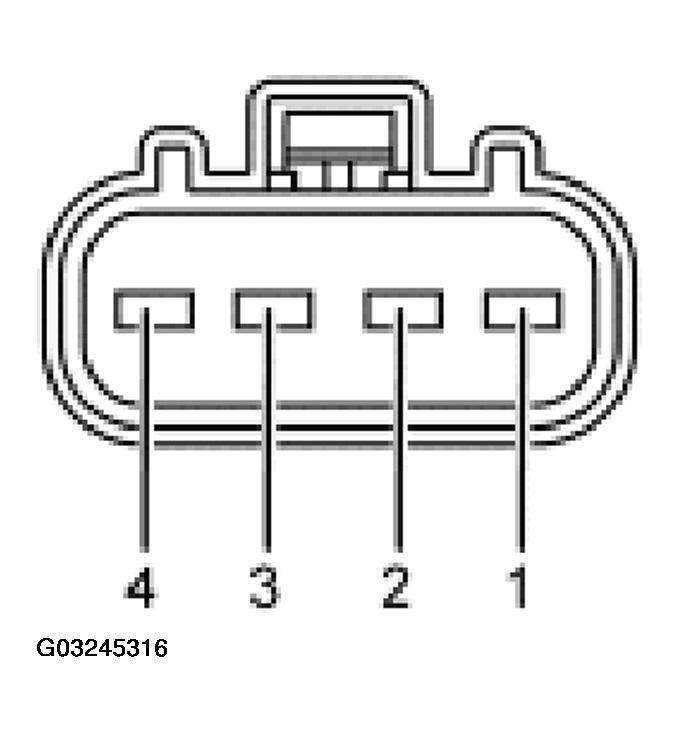

BLOWER MOTOR RESISTOR C293 CIRCUIT REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | CKT 260 (RD/OG) blower resistor to blower switch (MED-LO) | Resistance of 0 ohms to chassis ground with auxiliary blower switch in MED-LO. |
| 2 | CKT 261 (OG/BK) blower resistor to blower switch (HI) and to blower motor. | Greater than 10 volts with the blower motor switch in any position except HI and the function selector switch in any position except OFF. |
| 3 | CKT 269 (LB/OG) blower resistor to blower switch (MED-HI) | Resistance of 0 ohms to chassis ground with auxiliary blower switch in MED-HI. |
| 4 | CKT 1205 (BK) blower resistor to ground | Resistance of 0 ohms to chassis ground. |
