Removal & Installation

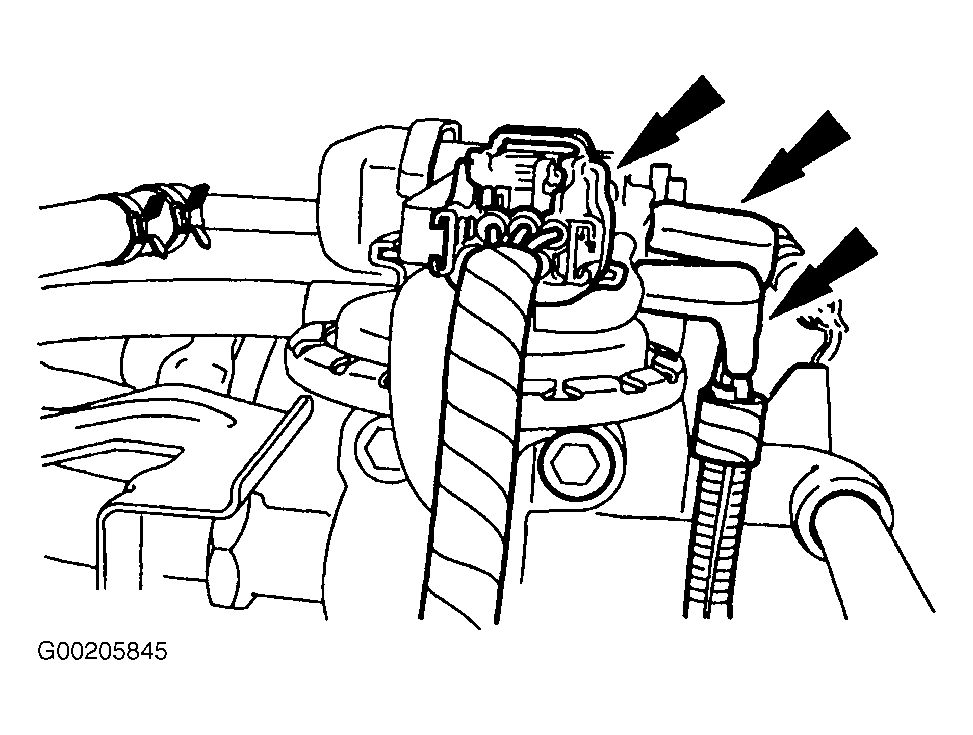

Disconnect the electrical connector and the vacuum hoses. See Figure. Disconnect the vacuum hose. Remove the bolt and disconnect the accelerator cables from the retainer. Remove the bolt and the accelerator cable bracket. Disconnect the Exhaust Gas Recirculation (EGR) tube from the EGR system module. Remove bolts, ESM module, and gasket. To install, reverse the removal procedure.
