Forward Clutch Pack Specifications

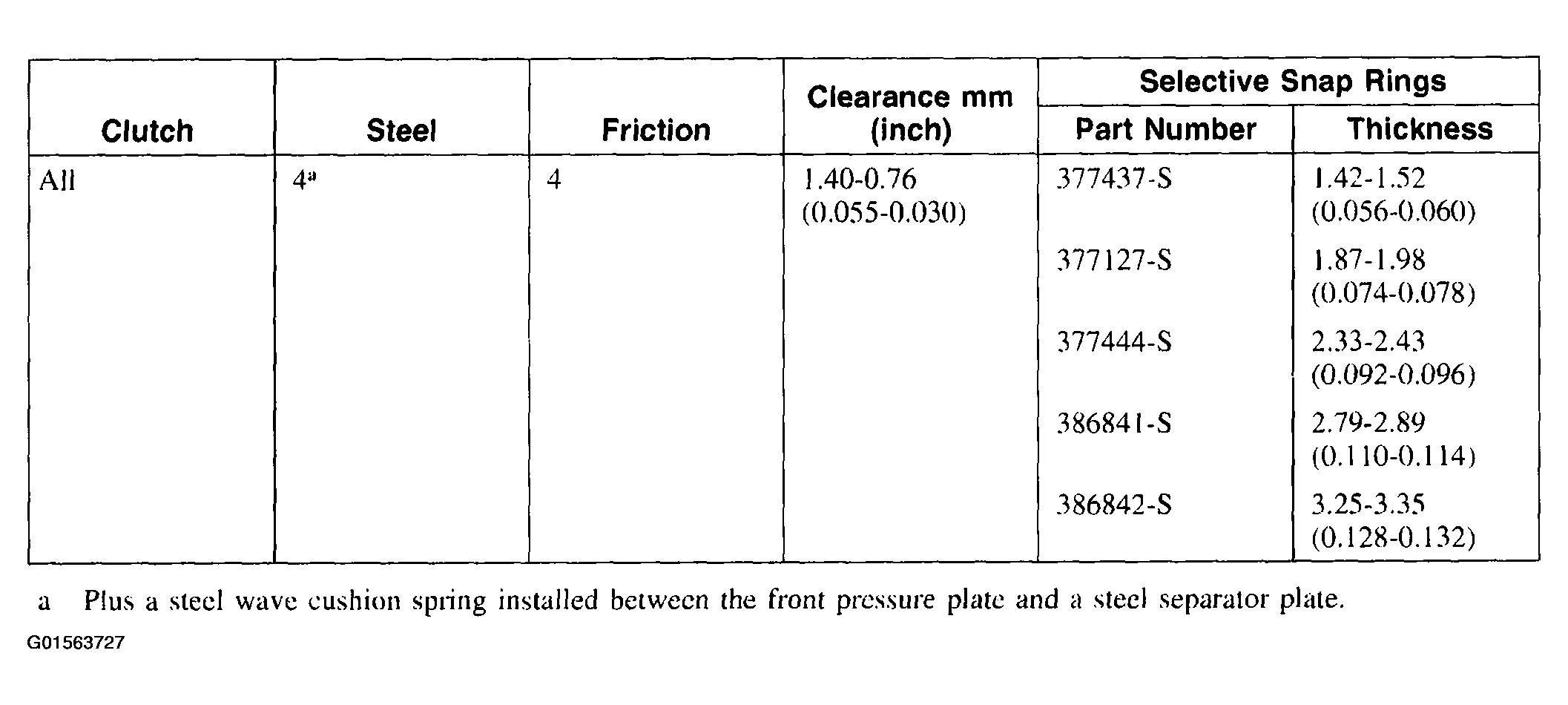

Fig 1: Forward Clutch Pack Specifications

G01563727

Courtesy of FORD MOTOR CO.
