Torque Specifications

Fig 1: Torque Specifications Table (1 Of 2)

G01493471

Courtesy of FORD MOTOR CO.

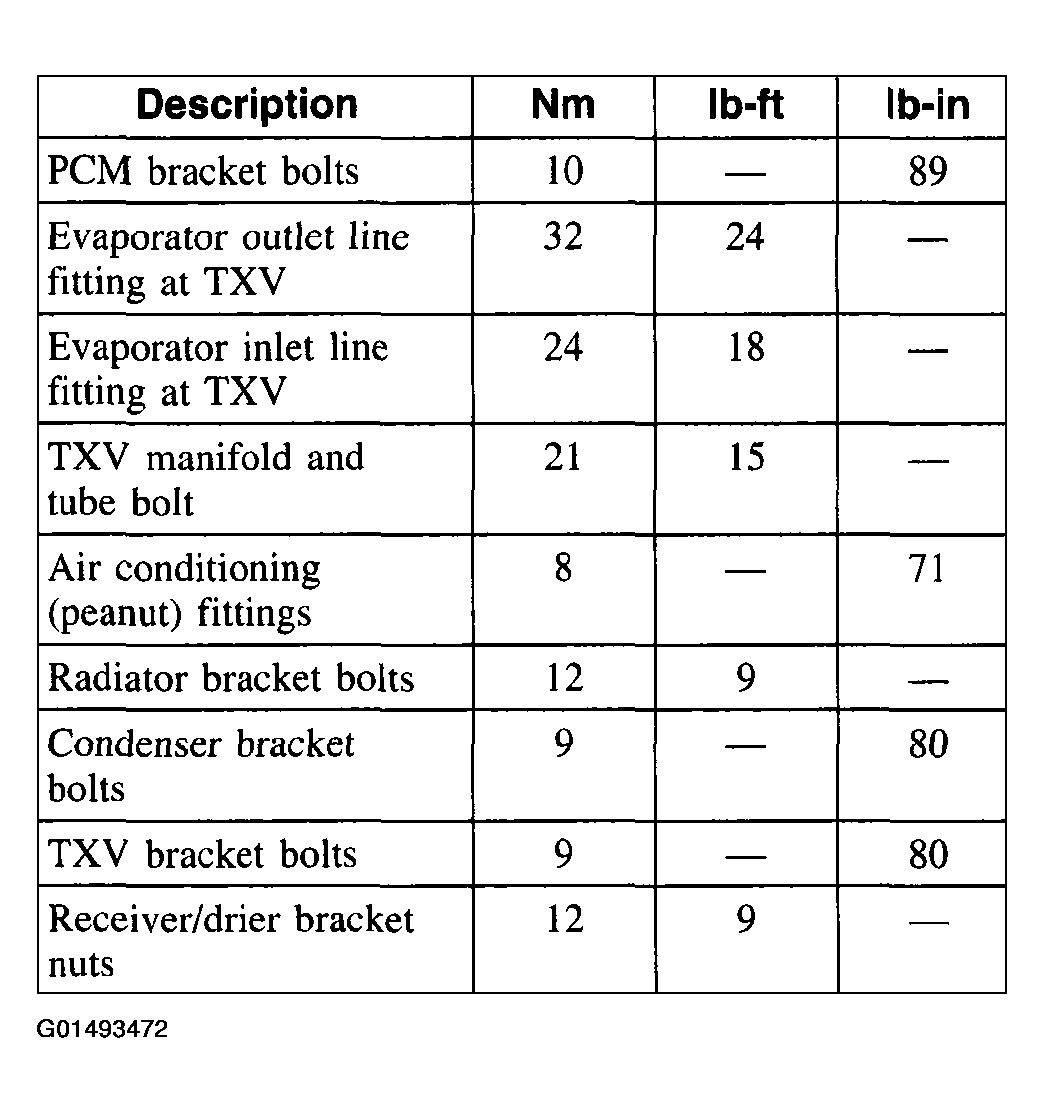

Fig 2: Torque Specifications Table (2 Of 2)

G01493472

Courtesy of FORD MOTOR CO.
