Pinpoint Test Aa: The Temperature Control Is Inoperative Using The Rear Auxiliary Climate Controls

WARNING: This page is about a different car, the 2004 Lincoln Navigator and 2004 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Carry out this test only if the front auxiliary climate control assembly temperature control operates correctly.

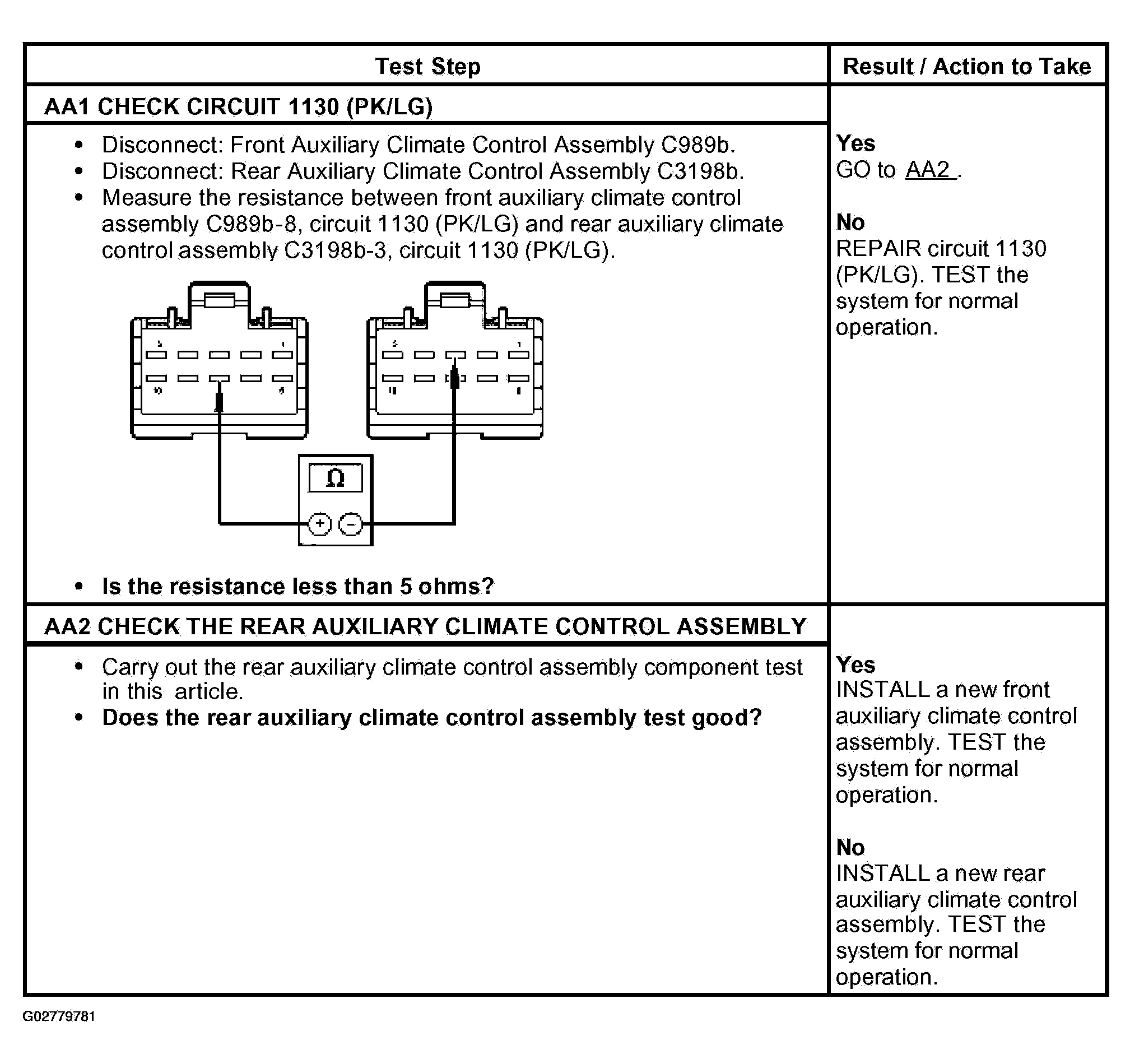

Fig 1: Pinpoint Test AA: Temperature Control Is Inoperative Using Rear Auxiliary Climate Controls
G02779781Courtesy of FORD MOTOR CO.
