In-Vehicle Temperature Sensor - Expedition

WARNING: This page is about a different car, the 2004 Lincoln Navigator and 2004 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

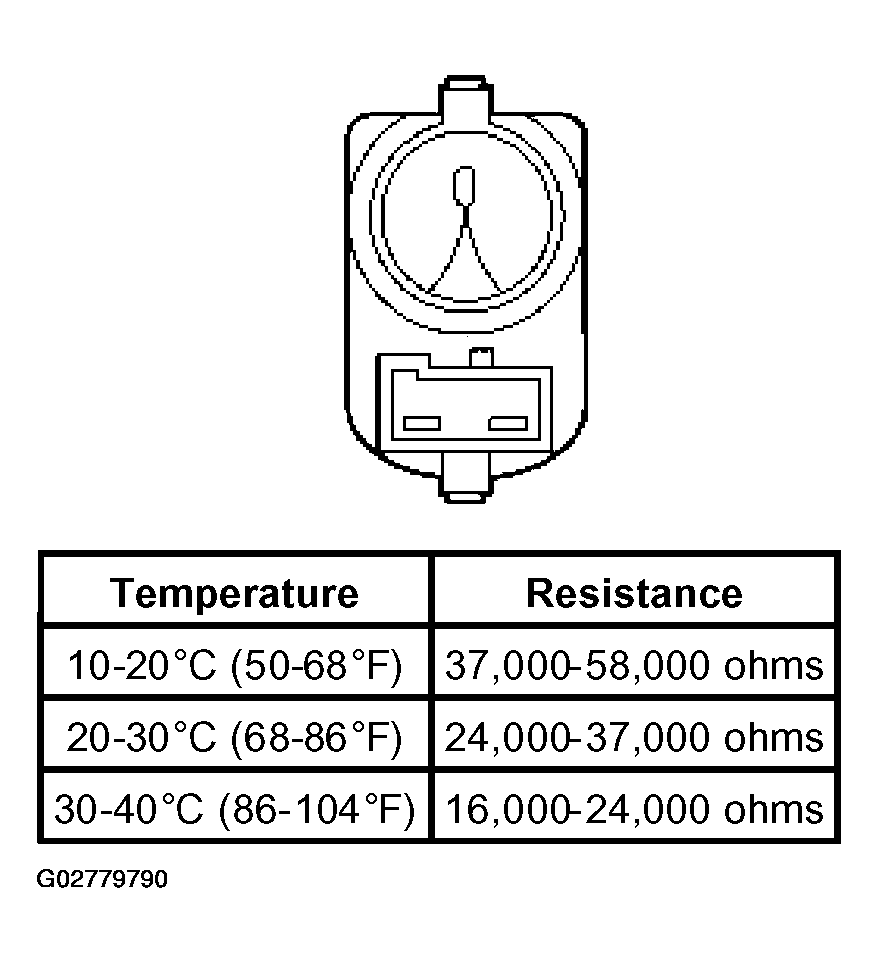

Fig 1: In-Vehicle Temperature Sensor Specifications - Expedition
G02779790Courtesy of FORD MOTOR CO.
