Pinpoint Test R: DTCS C2777 And C2778 Sensor Cluster Bus Failure

NOTE: Check all pins of the sensor cluster and stability assist module when removing connectors. Care should be taken when reinstalling these connectors.

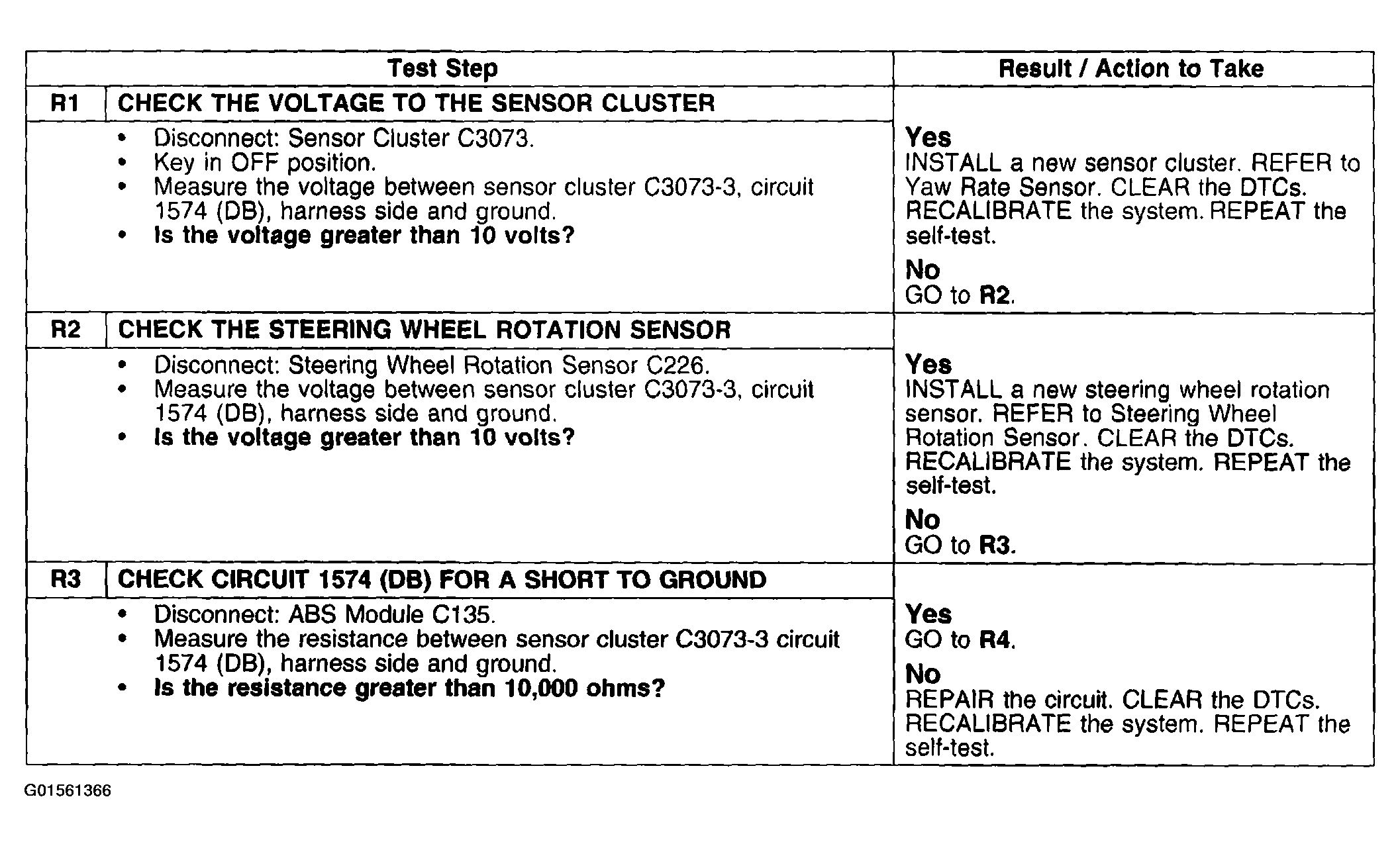

Fig 1: Pinpoint Test R: DTCs C2777 And C2778 Sensor Cluster Bus Failure (R1-R3)

Courtesy of FORD MOTOR CO.

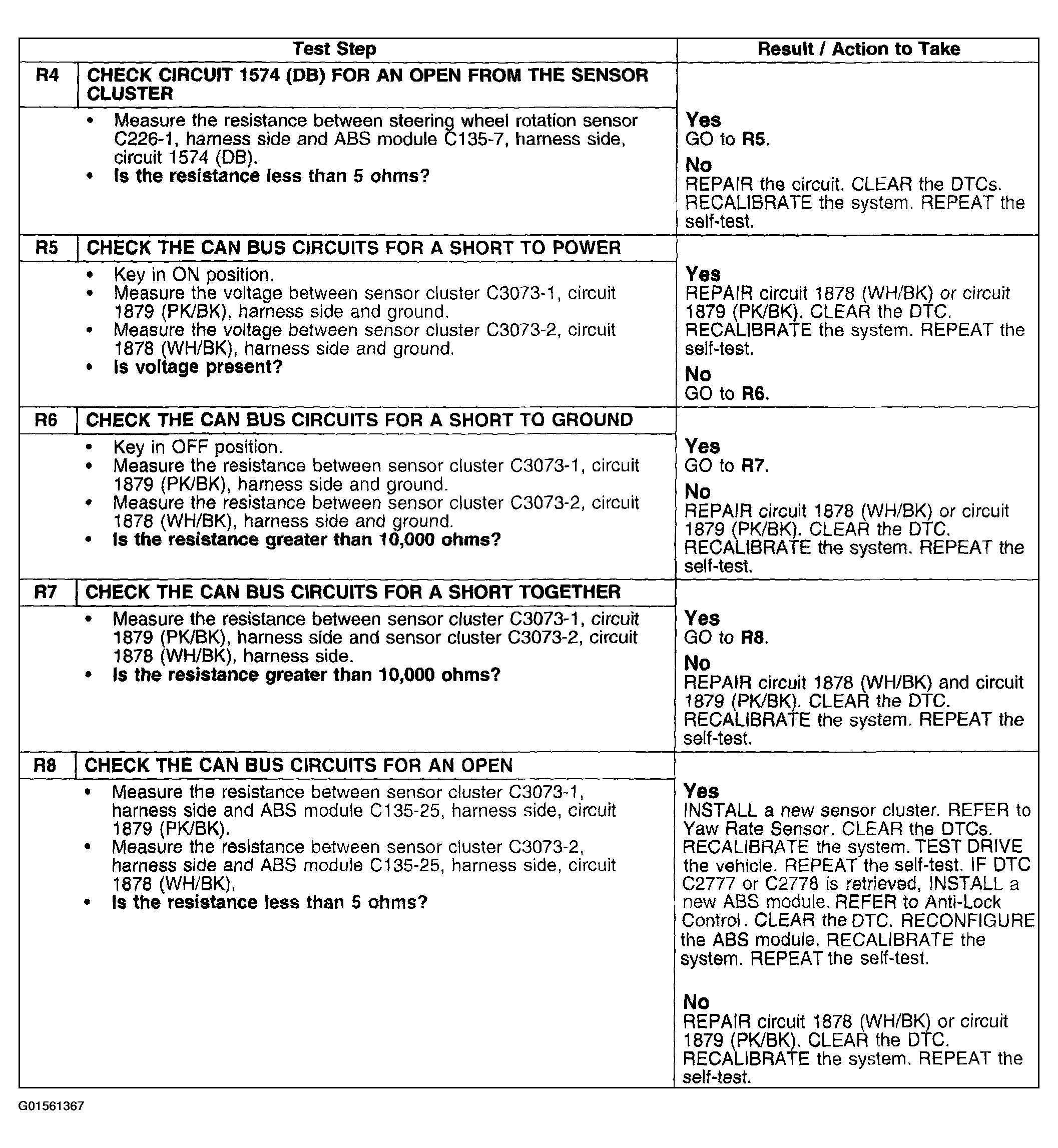

Fig 2: Pinpoint Test R: DTCs C2777 And C2778 Sensor Cluster Bus Failure (R4-R8)

Courtesy of FORD MOTOR CO.
