Home >> Lincoln >> 2003 >> Navigator RWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Control-Traction Control & Stability Assist >> Diagnosis And Testing >> Anti-Lock Control >> Pinpoint Tests >> Pinpoint Test N: Advance TRAC® Cannot Be Disabled/Is Inoperative

Pinpoint Test N: Advance TRAC® Cannot Be Disabled/Is Inoperative

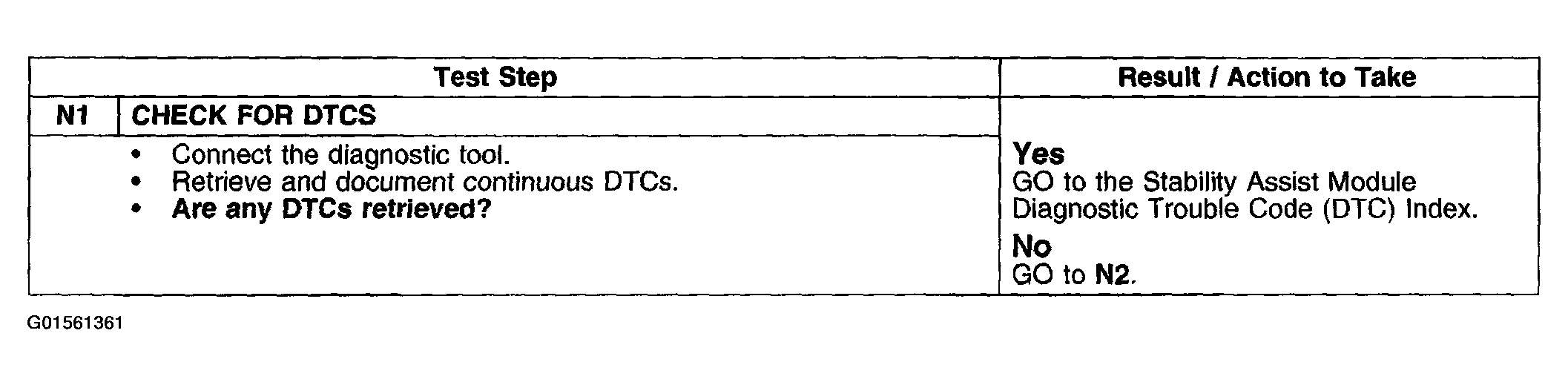

Fig 1: Pinpoint Test N: Advance Trac® Cannot Be Disabled/Is Inoperative (N1)
G01561361Courtesy of FORD MOTOR CO.

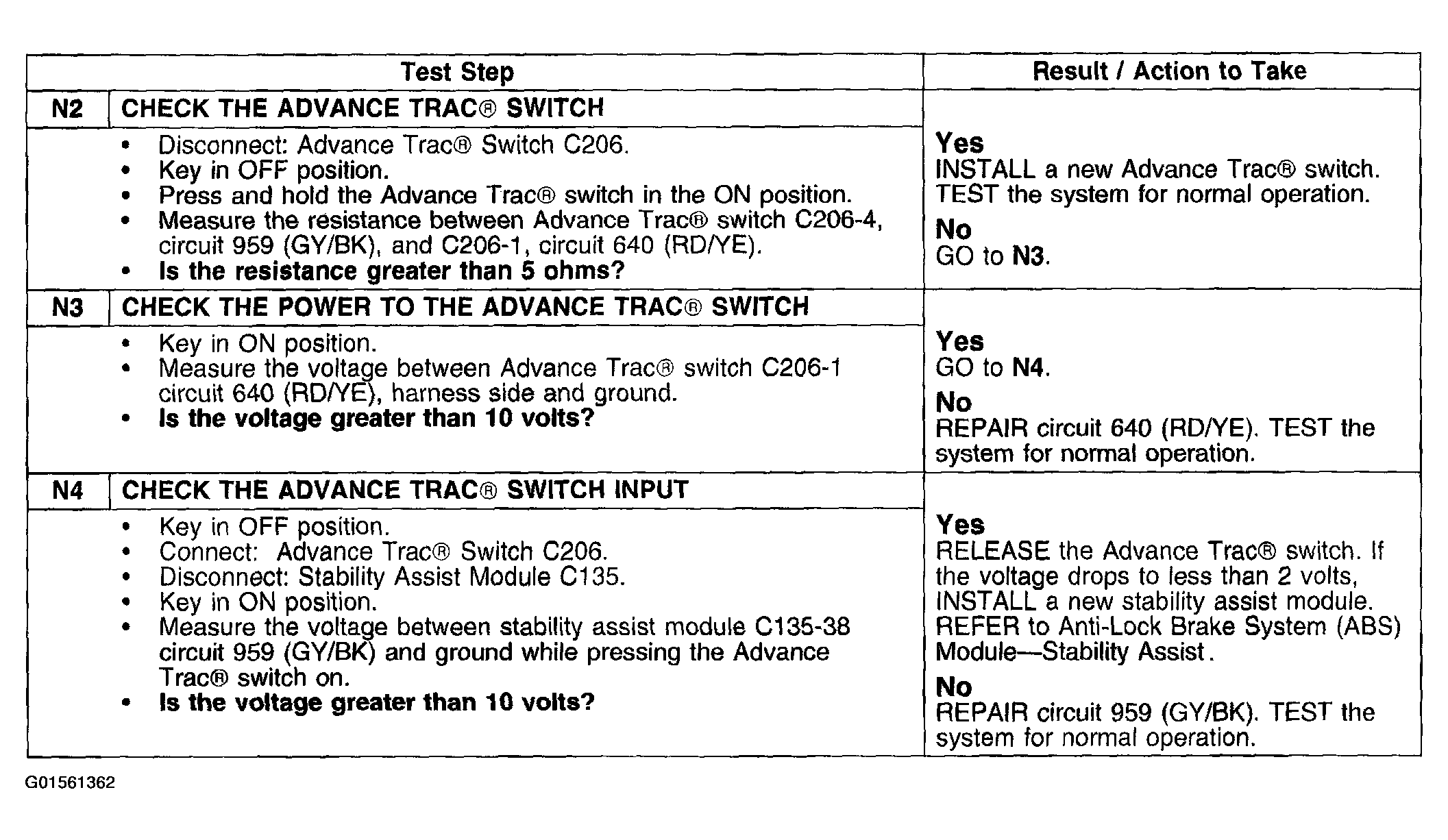

Fig 2: Pinpoint Test N: Advance Trac® Cannot Be Disabled/Is Inoperative (N2-N4)
G01561362Courtesy of FORD MOTOR CO.
