Pinpoint Test K: DTC C1288-Pressure Transducer Main/Primary Input Circuit Failure

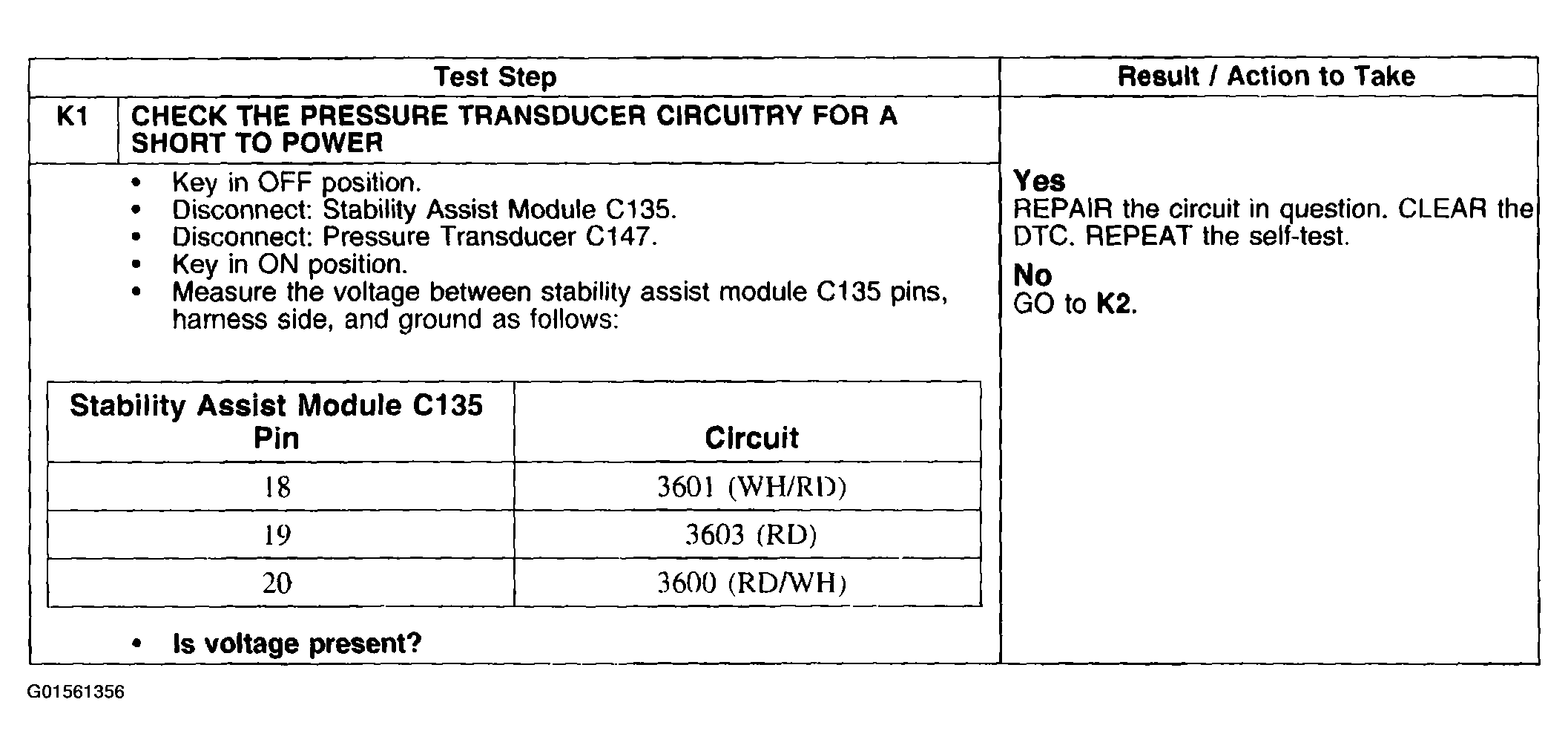

Fig 1: Pinpoint Test K: DTC C1288-Pressure Transducer Main/Primary Input Circuit Failure (K1)
G01561356Courtesy of FORD MOTOR CO.

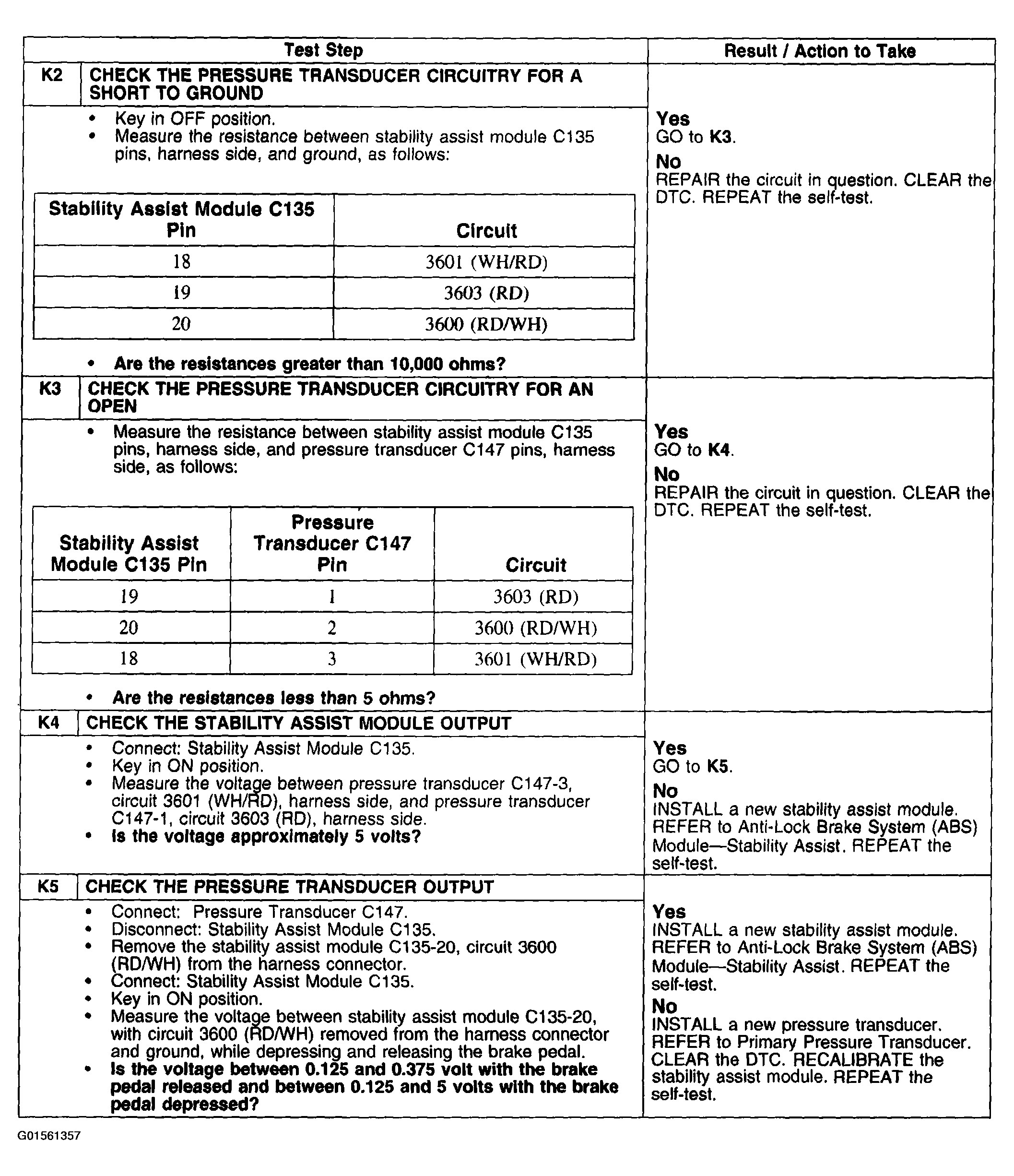

Fig 2: Pinpoint Test K: DTC C1288-Pressure Transducer Main/Primary Input Circuit Failure (K2-K5)
G01561357Courtesy of FORD MOTOR CO.
