Pinpoint Test A: Power Liftgate Does Not Operate - Using Keyless Entry Remote Transmitter

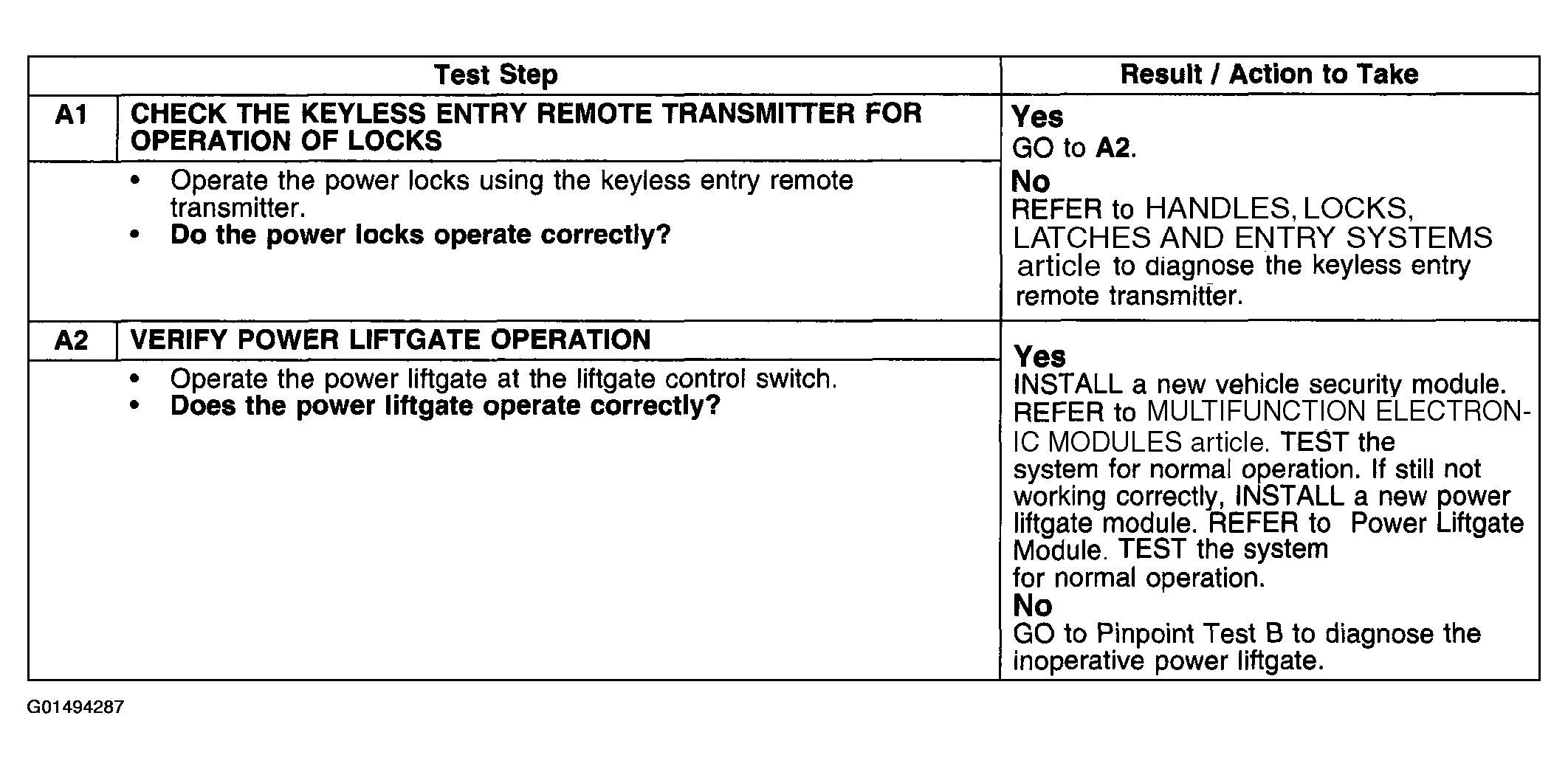

Fig 1: Pinpoint Test A: Power Liftgate Does Not Operate - Using Keyless Entry Remote Transmitter
G01494287Courtesy of FORD MOTOR CO.
