Removal and Installation

  1. Remove the driver side air bag module. Refer to AIR BAG RESTRAINT SYSTEMS .
  2. Remove the speed control actuator switch.
    1. Release the four (A) speed control actuator switch clips and remove the (B) speed control actuator switch.
    2. Disconnect the speed control actuator switch electrical connector.

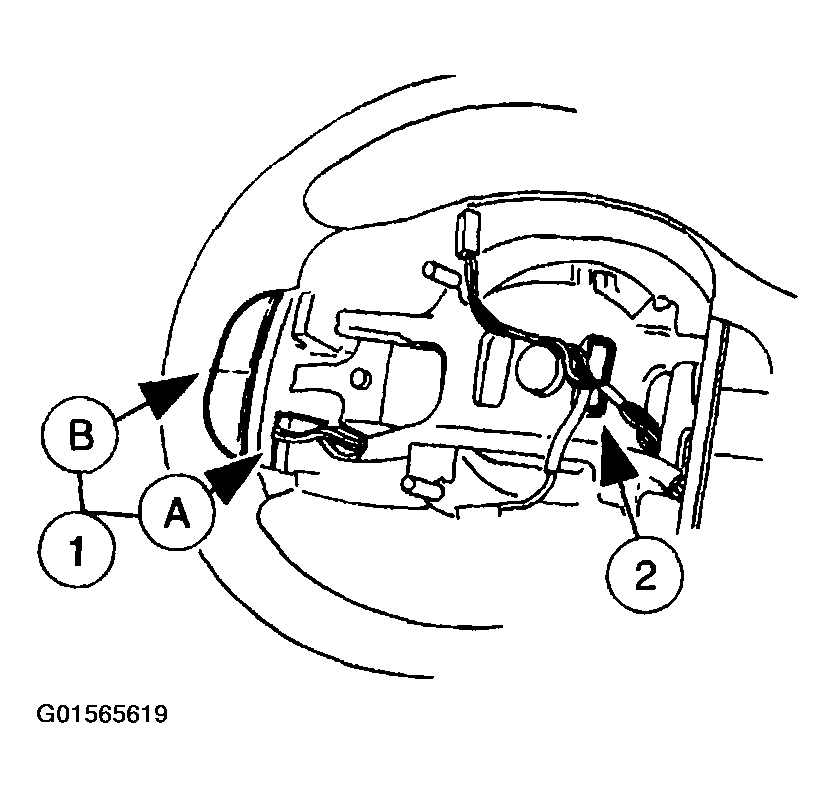

      Fig 1: Disconnecting Speed Control Actuator Switch Electrical Connector
      G01565619Courtesy of FORD MOTOR CO.
    3. To install, reverse the removal procedure.
