Lincoln
>>
2003
>>
Navigator RWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Vehicle Speed Control
>>
Diagnosis And Testing
>>
Speed Control
>>
Pinpoint Test
>>
Pinpoint Test D Chart: Speed Control Switches Are Inoperative
Pinpoint Test D Chart: Speed Control Switches Are Inoperative

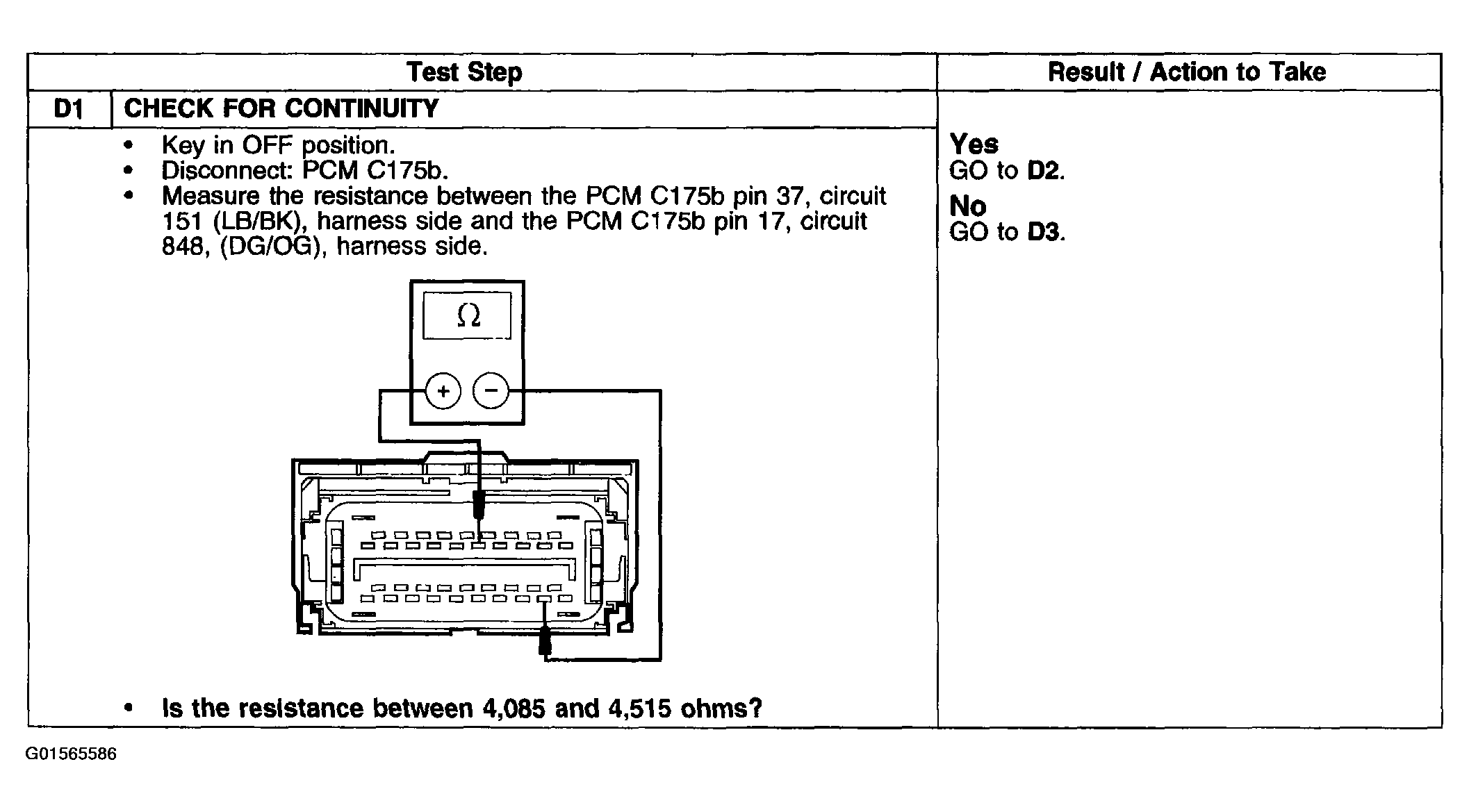

Fig 1: Pinpoint Test D Chart: Speed Control Switches Are Inoperative (D1)
Courtesy of FORD MOTOR CO.

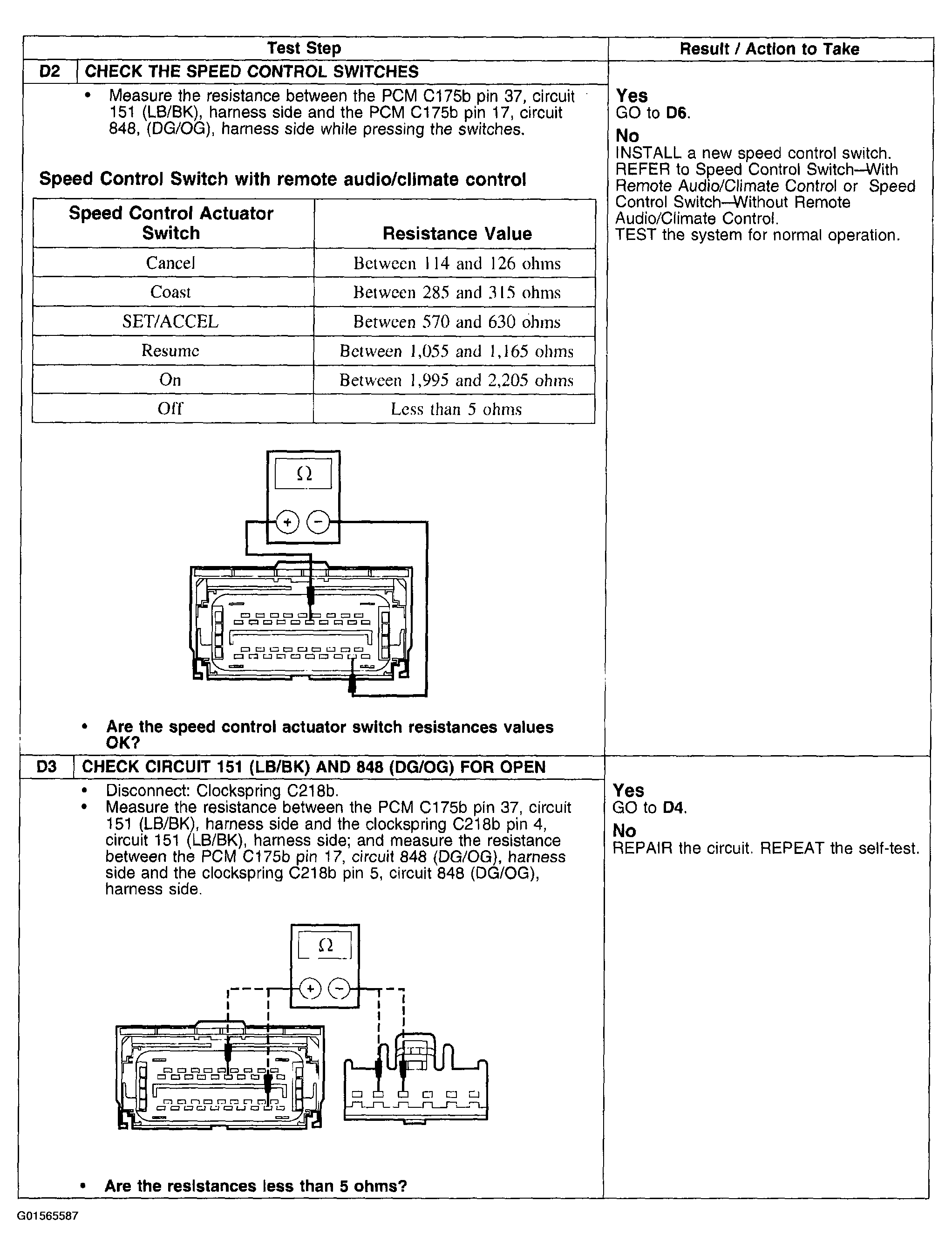

Fig 2: Pinpoint Test D Chart: Speed Control Switches Are Inoperative (D2-D3)
Courtesy of FORD MOTOR CO.

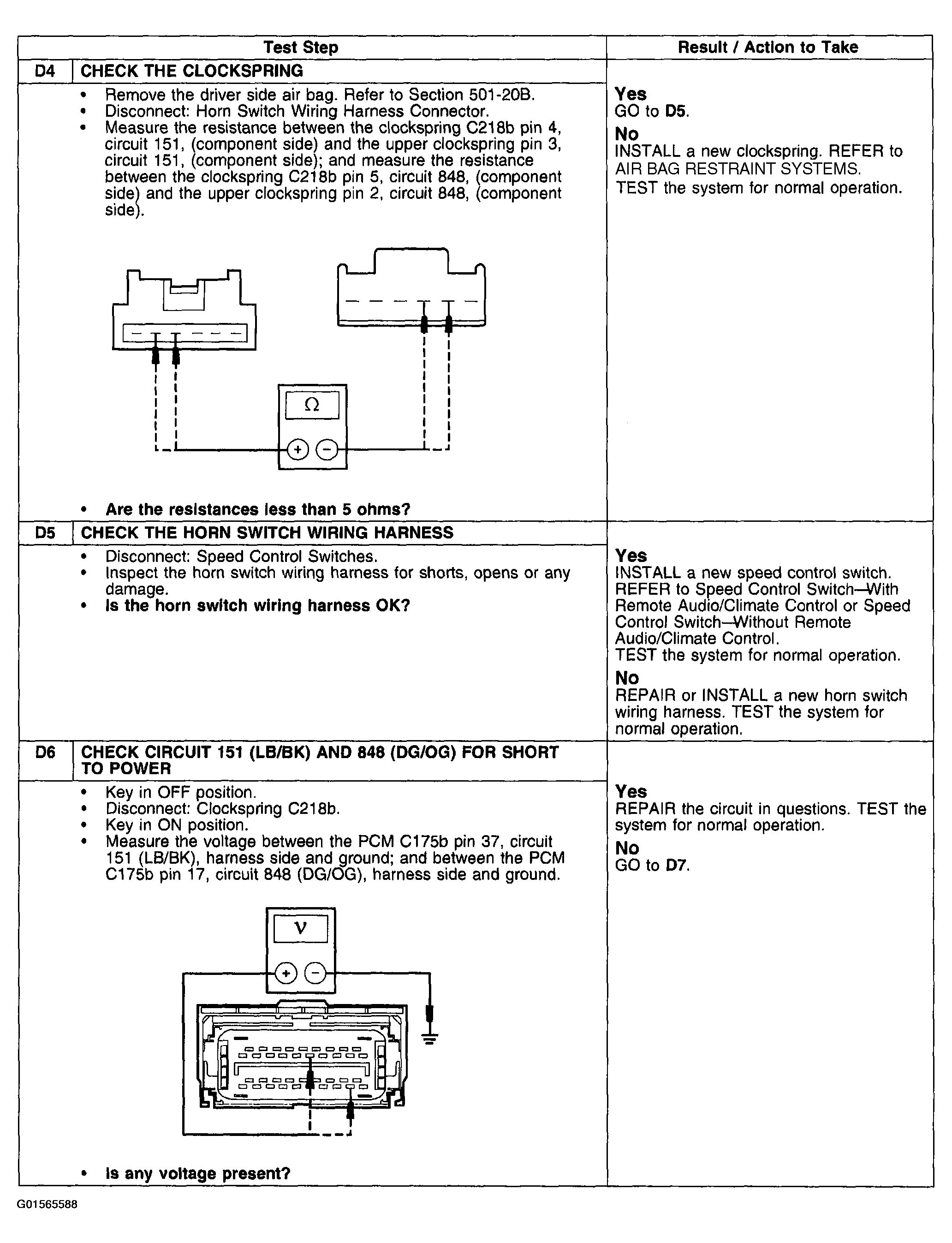

Fig 3: Pinpoint Test D Chart: Speed Control Switches Are Inoperative (D4-D6)
Courtesy of FORD MOTOR CO.

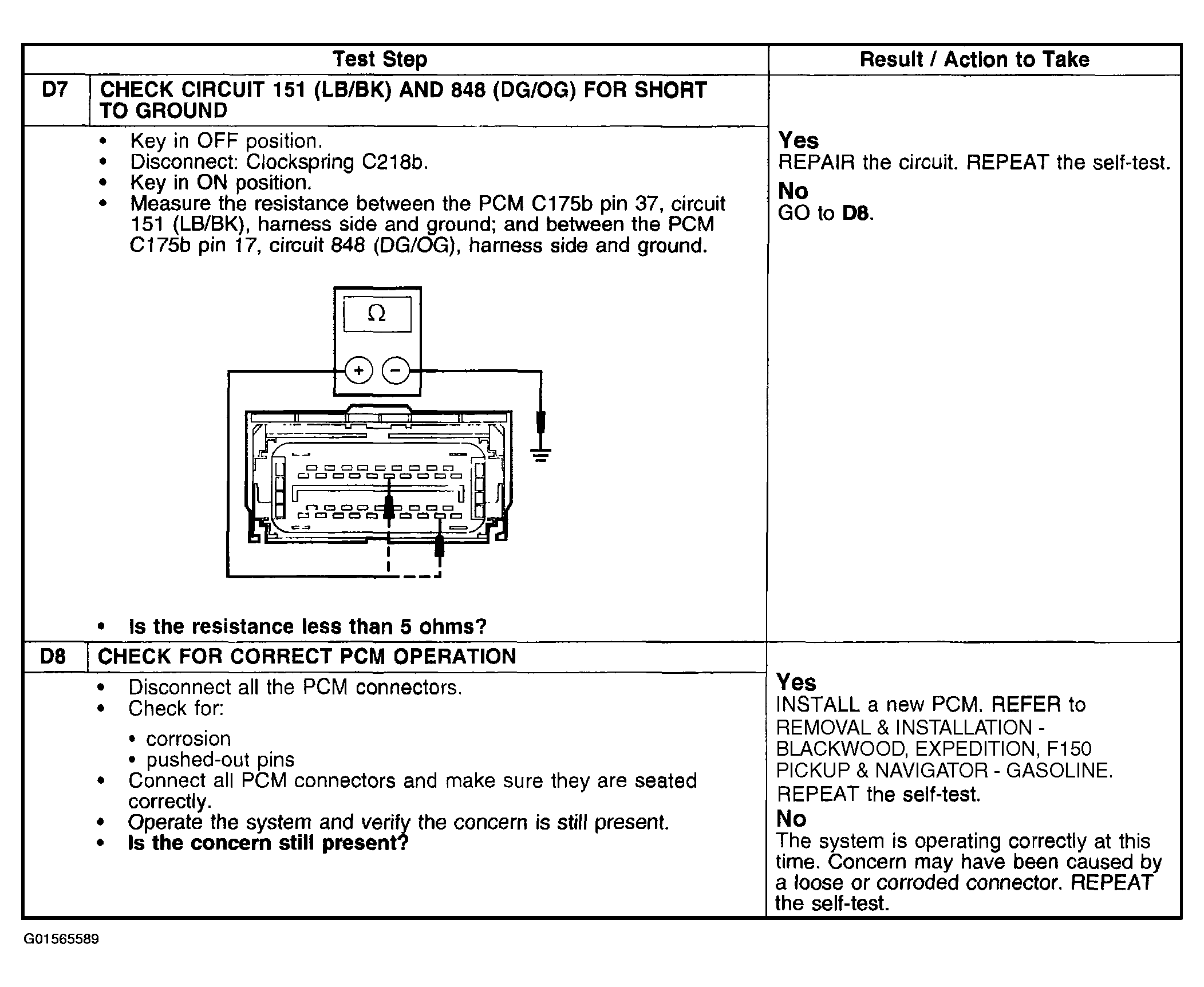

Fig 4: Pinpoint Test D Chart: Speed Control Switches Are Inoperative (D7-D8)
Courtesy of FORD MOTOR CO.
