Removal and Installation

    CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage can result.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Disconnect the stability assist module (ECU) electrical connector.

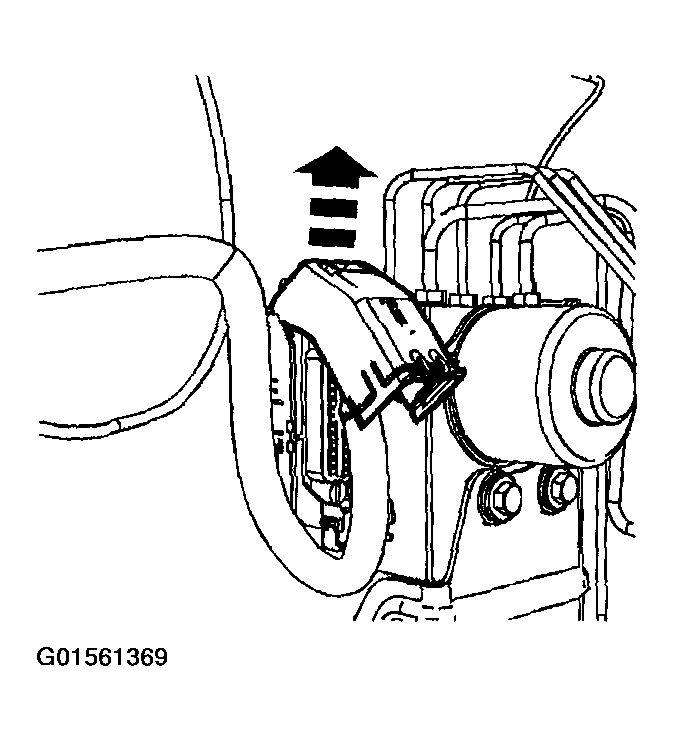

    Fig 1: Disconnecting Stability Assist Module (ECU) Electrical Connector
    G01561369Courtesy of FORD MOTOR CO.
  3. Disconnect the brake tubes from the hydraulic control unit (HCU).

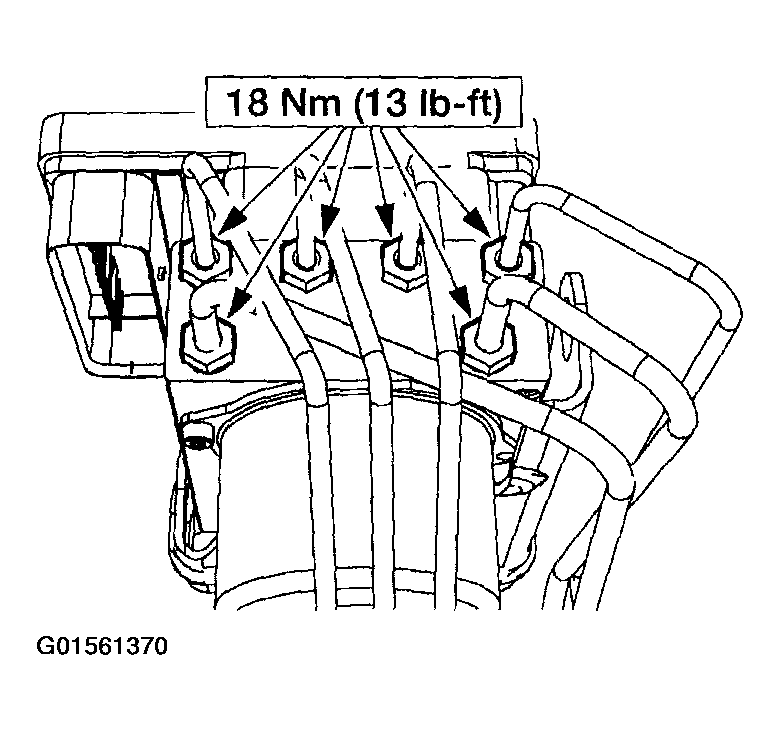

    Fig 2: Disconnecting Brake Tubes From Hydraulic Control Unit (HCU)
    G01561370Courtesy of FORD MOTOR CO.
  4. Remove the bolts and remove the HCU/ECU assembly.

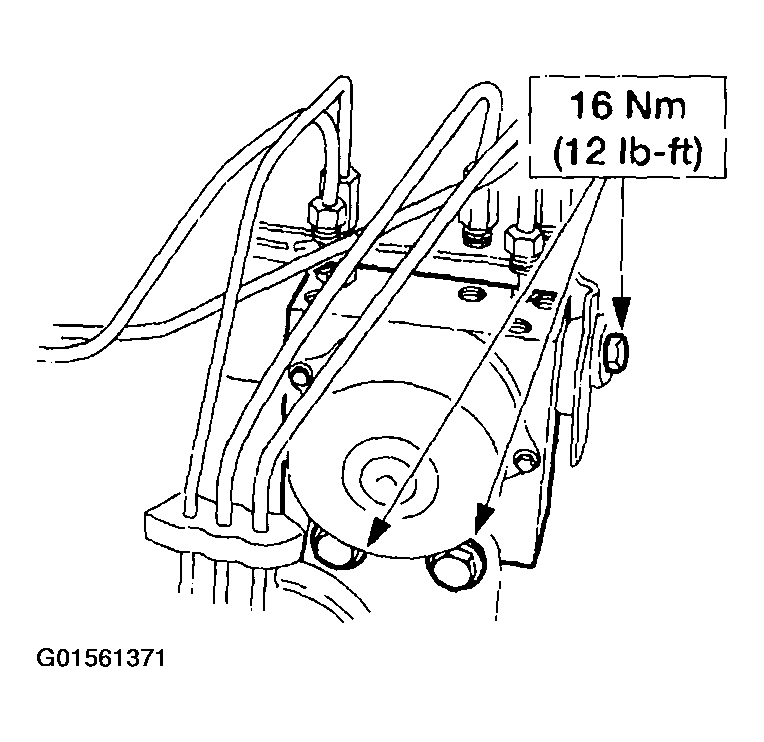

    Fig 3: Removing Bolts And Removing HCU/ECU Assembly
    G01561371Courtesy of FORD MOTOR CO.
  5. Disconnect the ECU from the HCU.
  6. To install, reverse the removal procedure.
