Pinpoint Test O: Advance TRAC® Switch Indicator Is Always On/Cannot Be Disabled

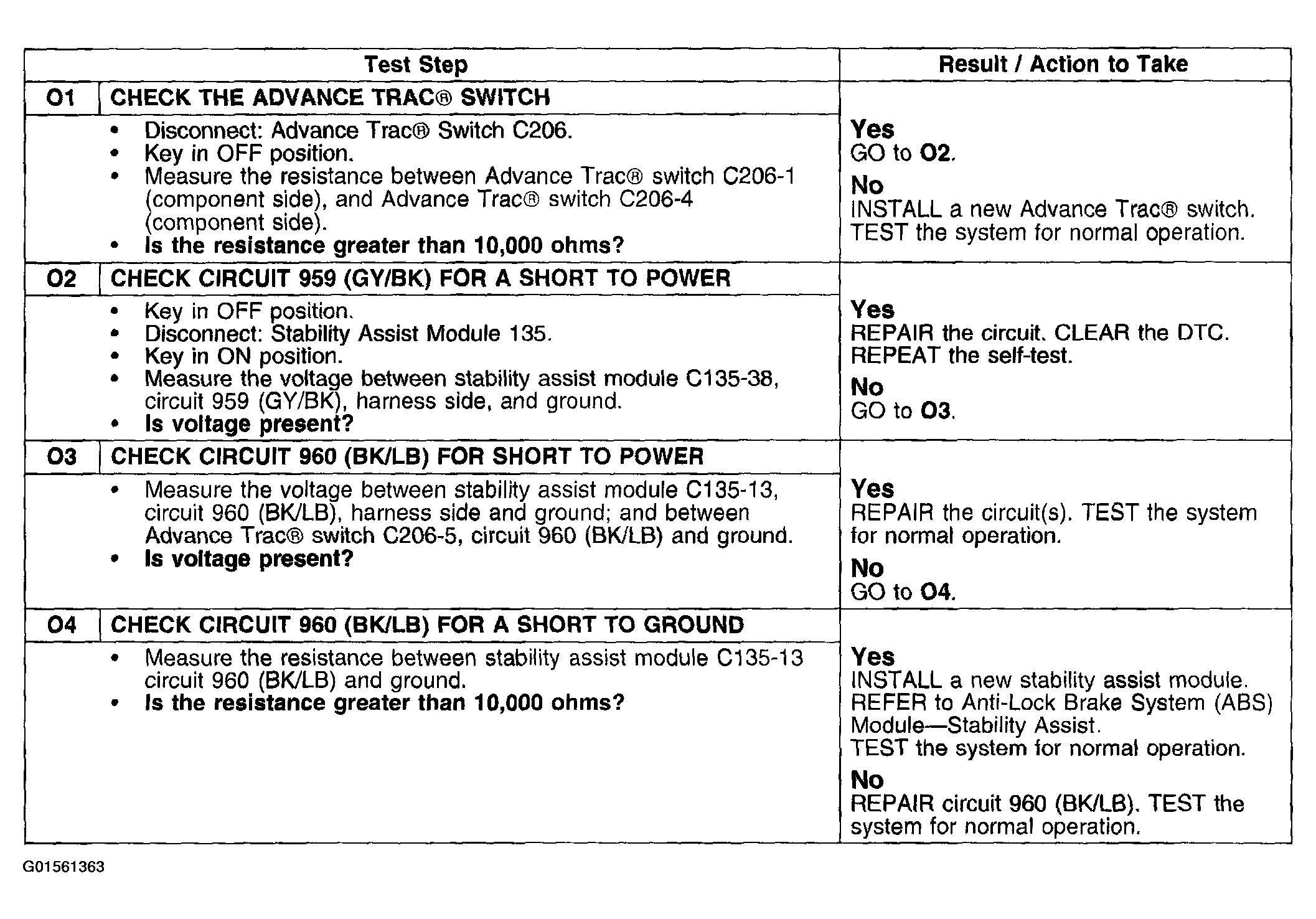

Fig 1: Pinpoint Test O: Advance Trac® Switch Indicator Is Always On/Cannot Be Disabled

G01561363

Courtesy of FORD MOTOR CO.
