Seat Control Switch - 8-Way: Installation

WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes at the beginning of the removal procedure.

Install the power seat switch and install the three screws.

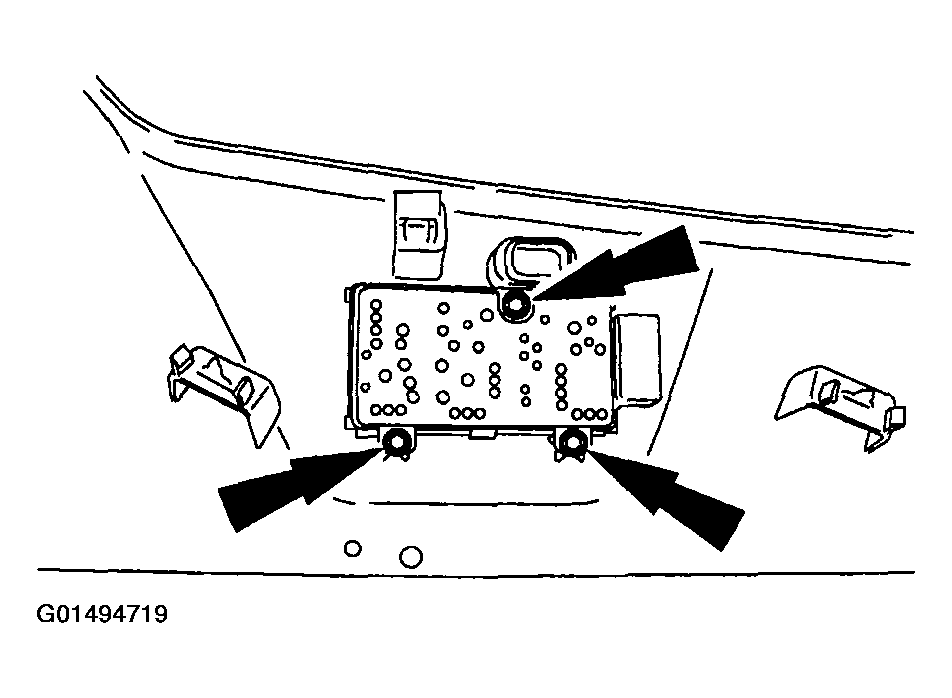

Fig 1: Installing Power Seat Switch And Screws
Courtesy of FORD MOTOR CO.
Connect the 8-way power seat and power lumbar switch electrical connectors.

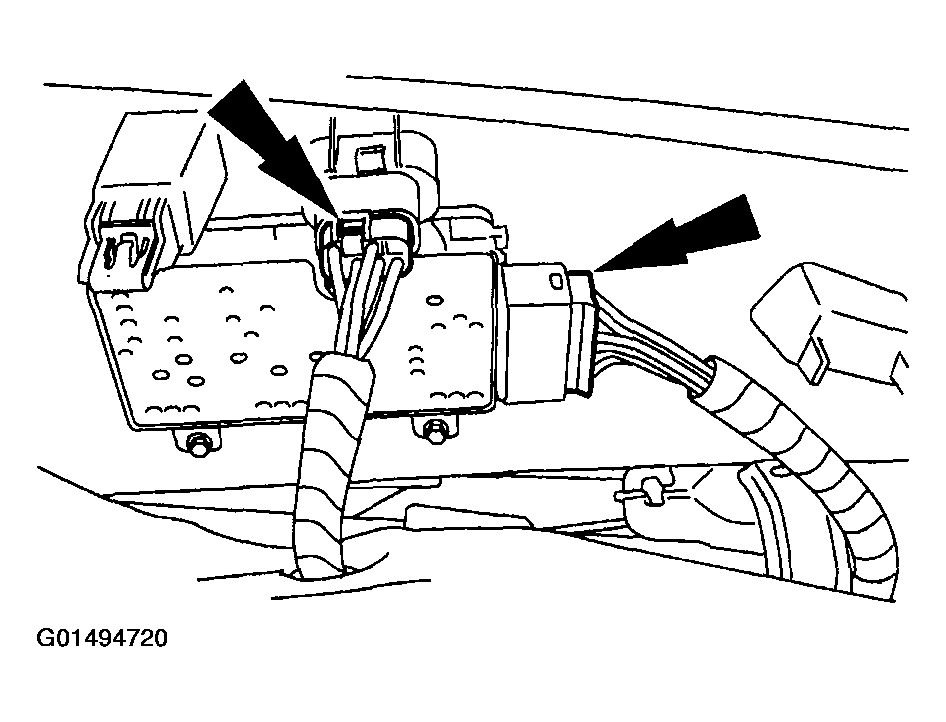

Fig 2: Connecting 8-Way Power Seat And Power Lumbar Switch Electrical Connectors
Courtesy of FORD MOTOR CO.
Push to install the three side shield retainers onto the seat frame.

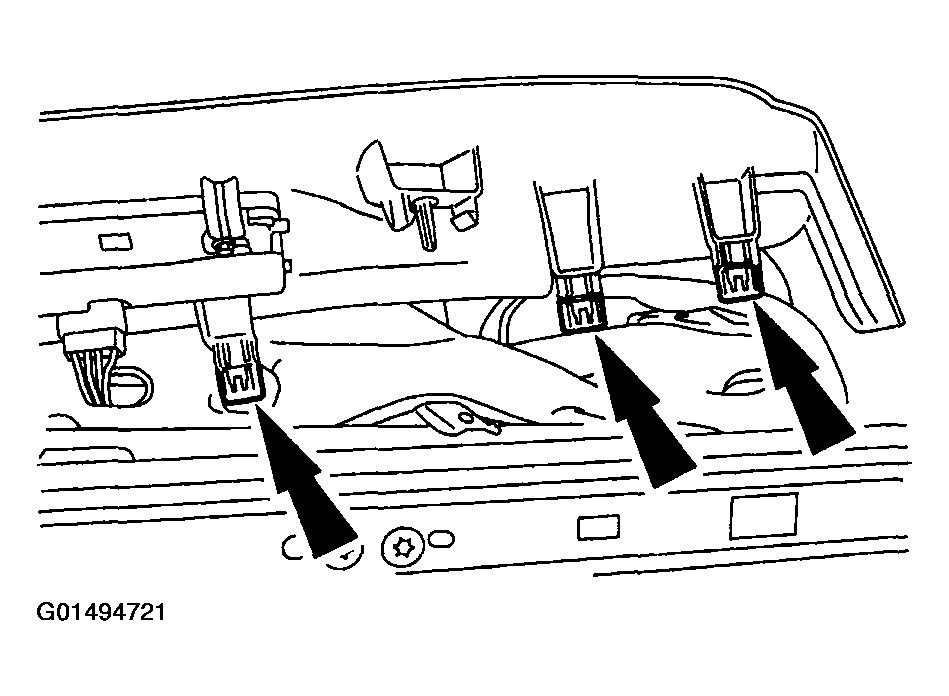

Fig 3: Installing Three Side Shield Retainers Onto Seat Frame
Courtesy of FORD MOTOR CO.
Access and install the front side shield screw.

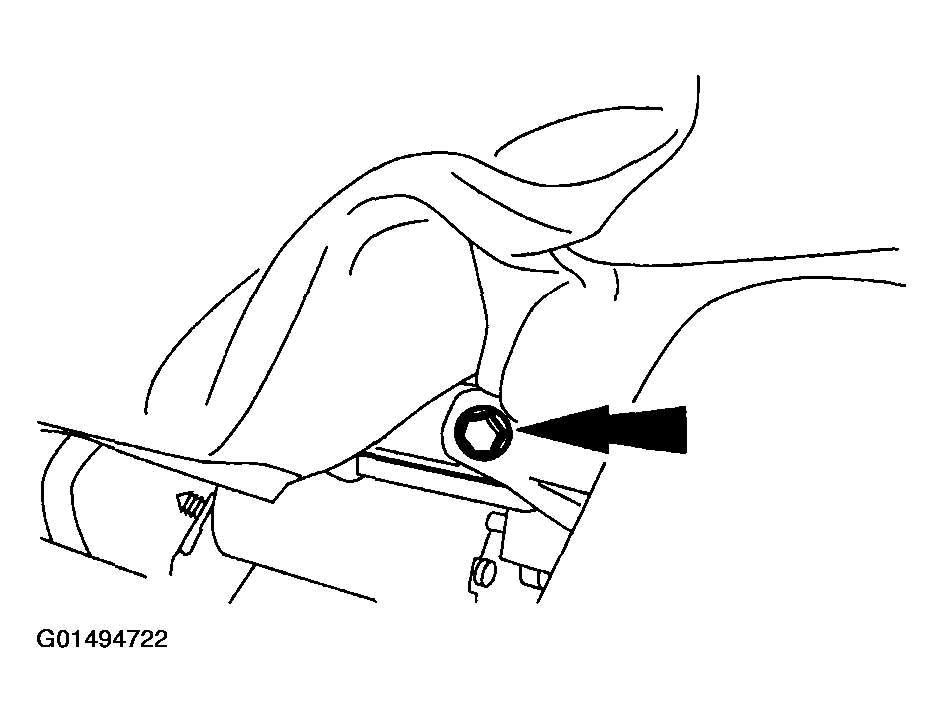

Fig 4: Installing Front Side Shield Screw
Courtesy of FORD MOTOR CO.
Install the two power seat knobs.

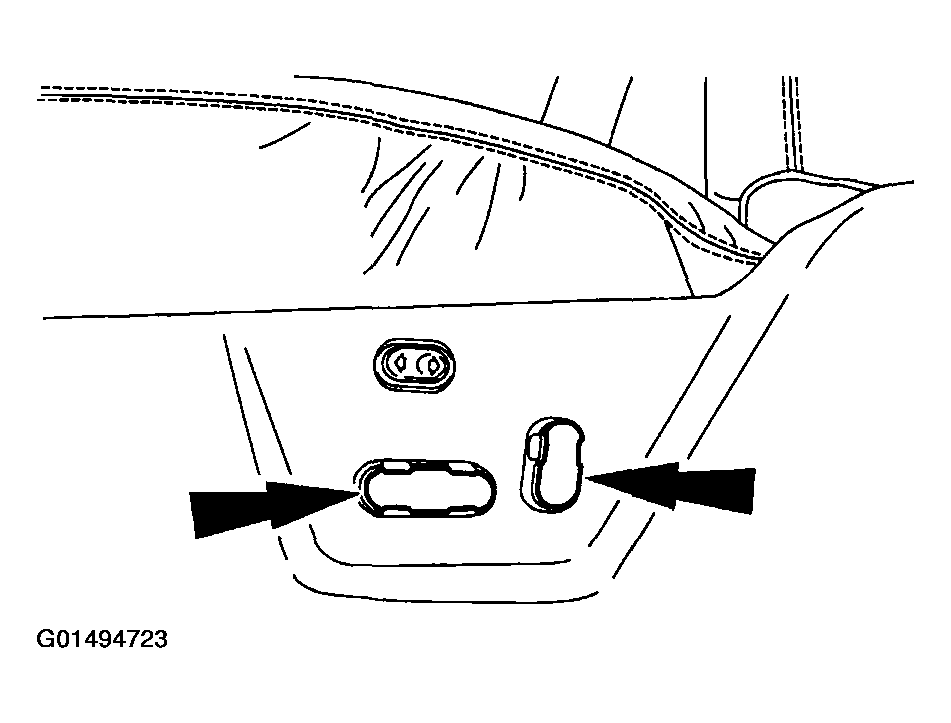

Fig 5: Installing Two Power Seat Knobs
Courtesy of FORD MOTOR CO.
Install the affected seat. For additional information, refer to FRONT SEAT - 40 PERCENT .

WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.

Reactivate the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .

WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.

With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
