Seat Control Switch - 6-Way: Installation

WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, and notes at the beginning of the removal procedure.

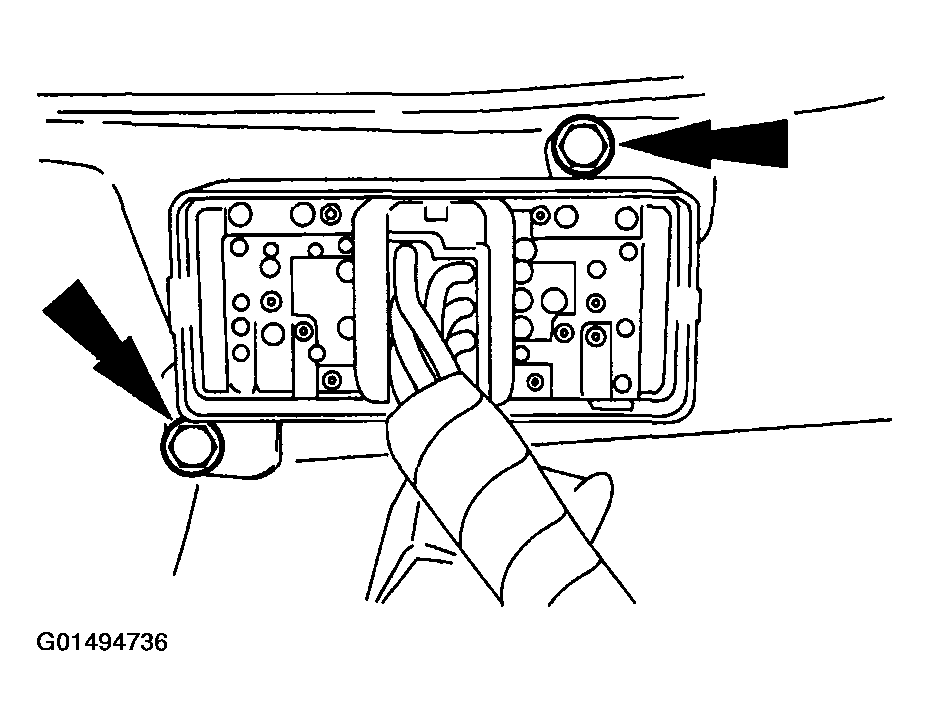

Install the 6-way power seat switch on the side shield and install the two screws.

Fig 1: Installing 6-Way Power Seat Switch On Side Shield And Installing Two Screws
Courtesy of FORD MOTOR CO.

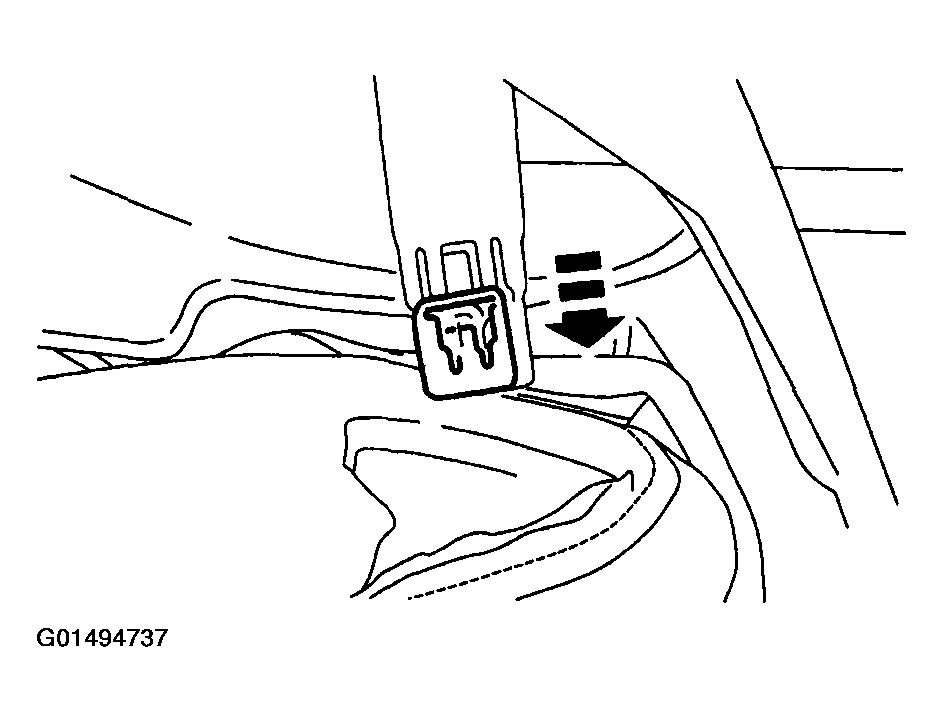

Push to install the rear side shield retainer on seat frame.

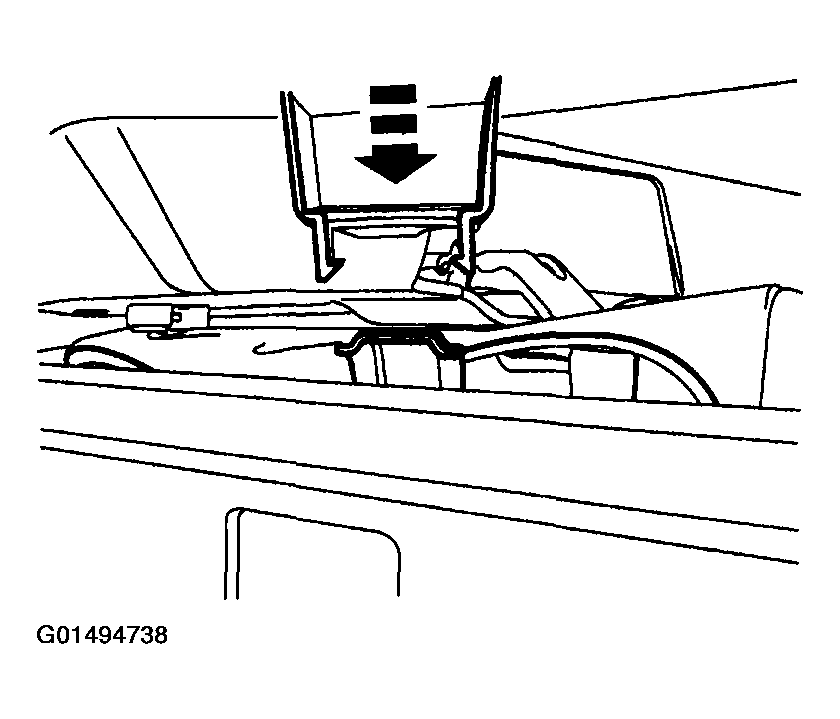

Fig 2: Installing Rear Side Shield Retainer On Seat Frame
Courtesy of FORD MOTOR CO.
Push to install the middle side shield retainer on the seat.

Fig 3: Installing Middle Side Shield Retainer On Seat
Courtesy of FORD MOTOR CO.

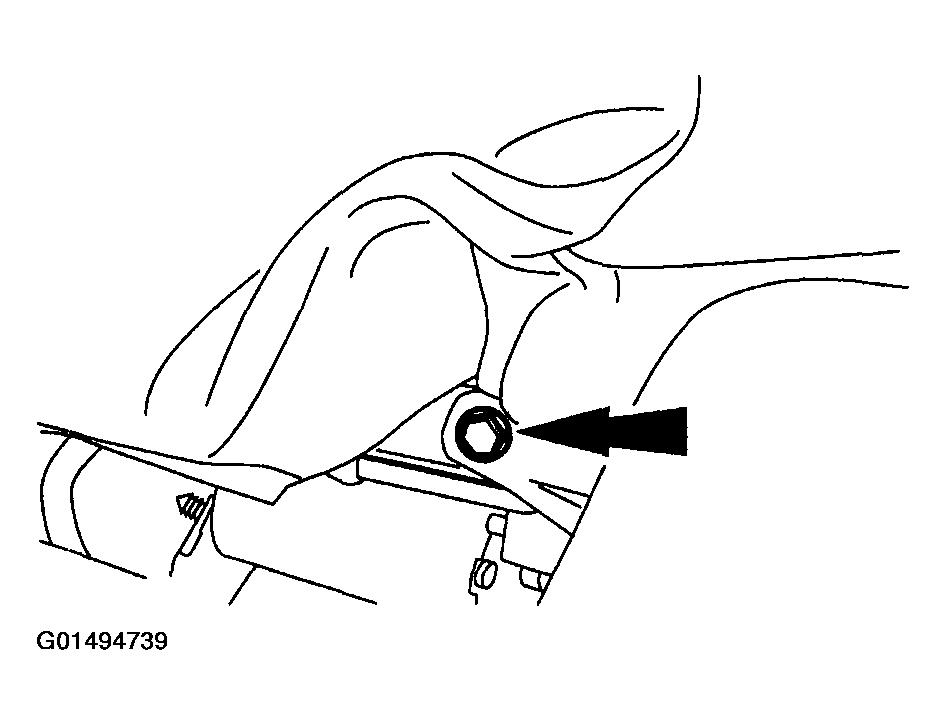

Access and install the front side shield screw.

Fig 4: Installing Front Side Shield Screw
Courtesy of FORD MOTOR CO.

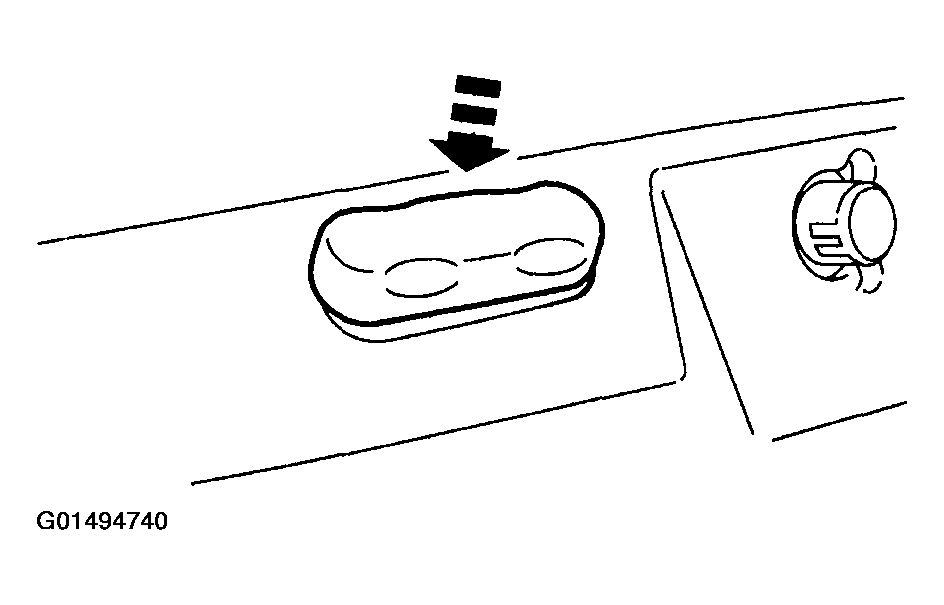

Install the 6-way power seat knob.

Fig 5: Installing 6-Way Power Seat Knob
Courtesy of FORD MOTOR CO.
Install the screw on the side shield under the lumbar knob.

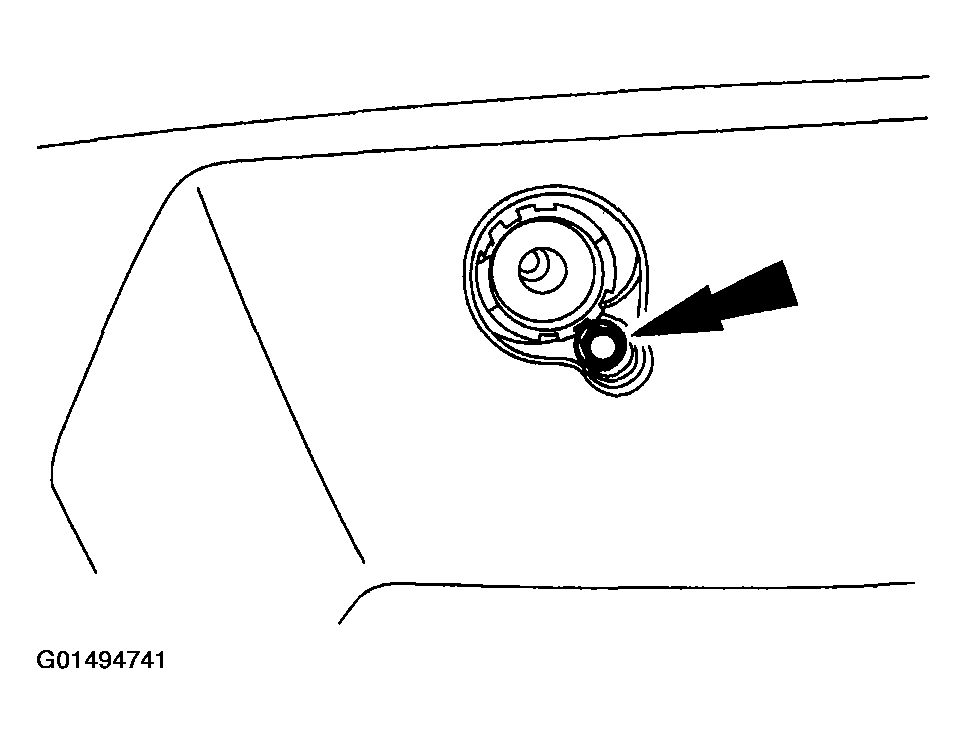

Fig 6: Installing Screw On Side Shield Under Lumbar Knob
Courtesy of FORD MOTOR CO.

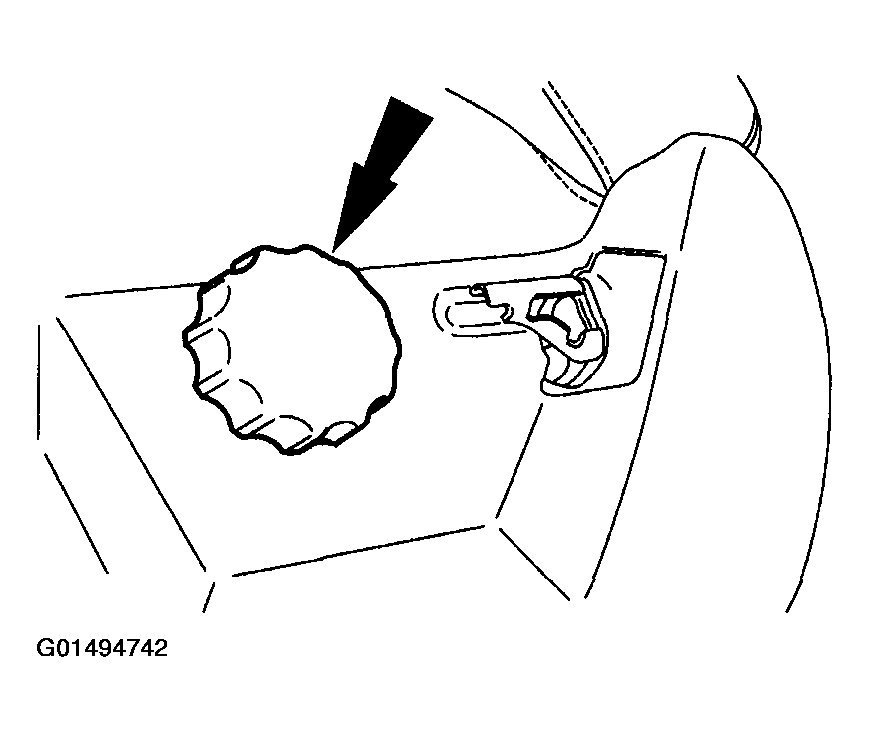

Align and install the lumbar knob.

Fig 7: Aligning And Installing Lumbar Knob
Courtesy of FORD MOTOR CO.

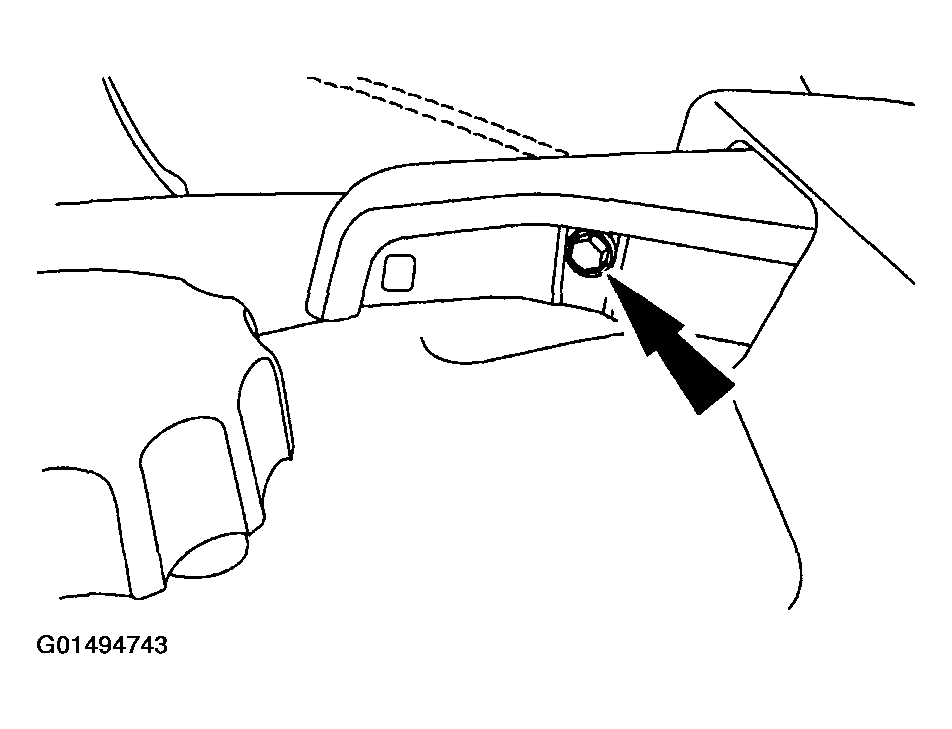

Install the recliner handle and install the screw.

Fig 8: Installing Recliner Handle And Screw
Courtesy of FORD MOTOR CO.

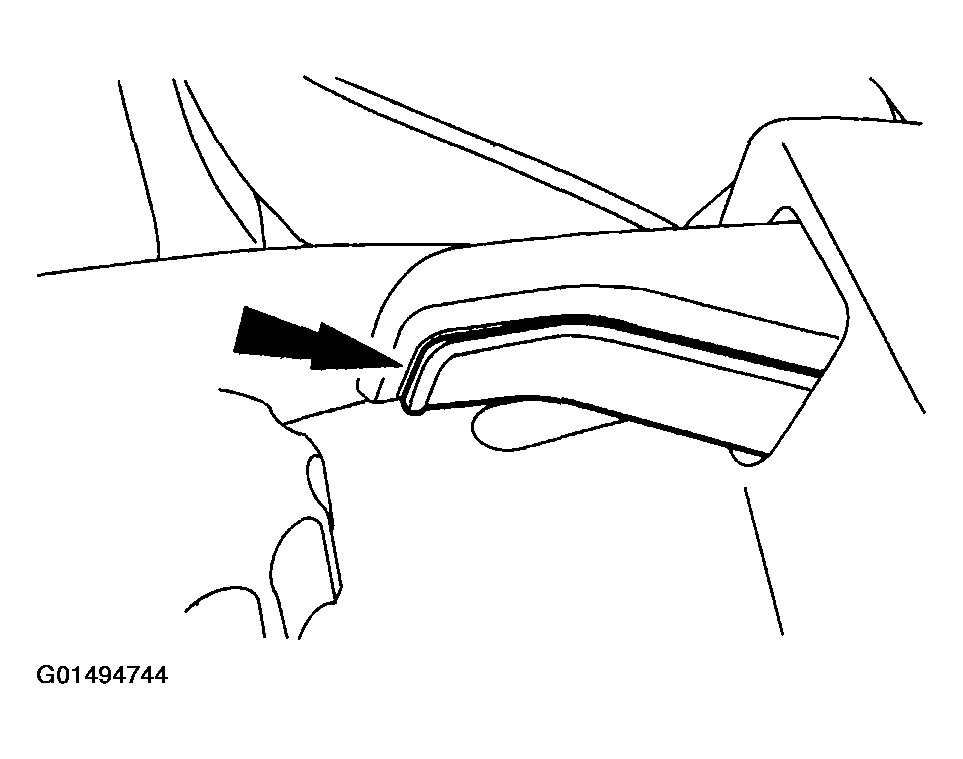

Install the recliner handle cover.

Fig 9: Installing Recliner Handle Cover
Courtesy of FORD MOTOR CO.

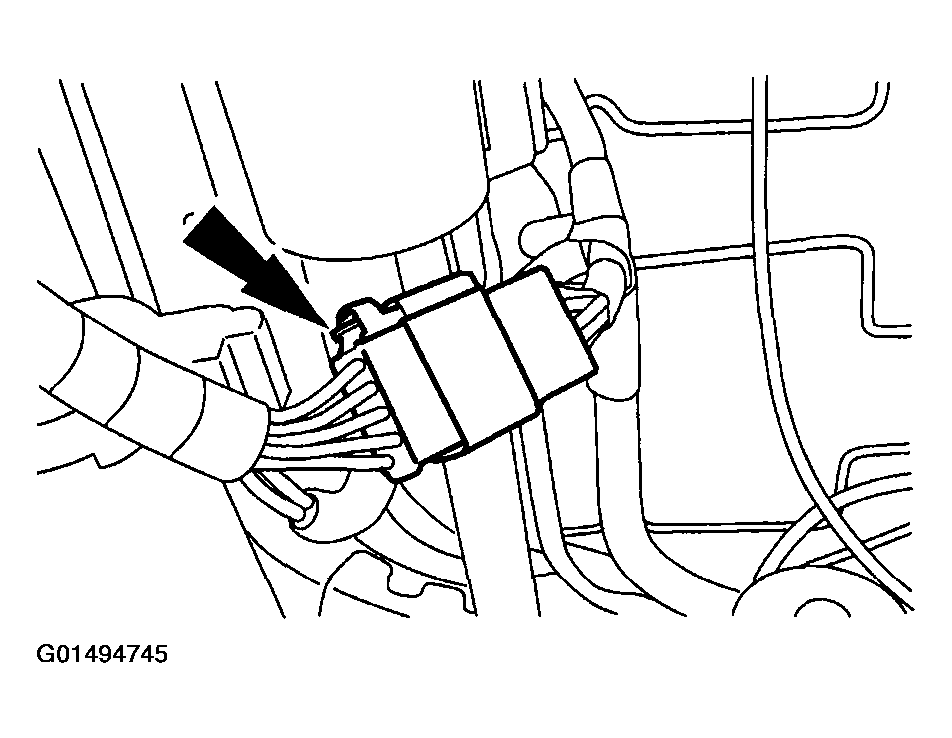

Connect the 6-way power seat switch electrical connector.

Fig 10: Connecting 6-Way Power Seat Switch Electrical Connector
Courtesy of FORD MOTOR CO.

WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the seat removal and installation procedure.

Install the affected seat. For additional information, refer to FRONT SEAT - 40 PERCENT .

WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.

Reactivate the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .

WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.

With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
