Pinpoint Test Q: DTC C1969 - Traction Control/Yaw Rate Control Switch Circuit

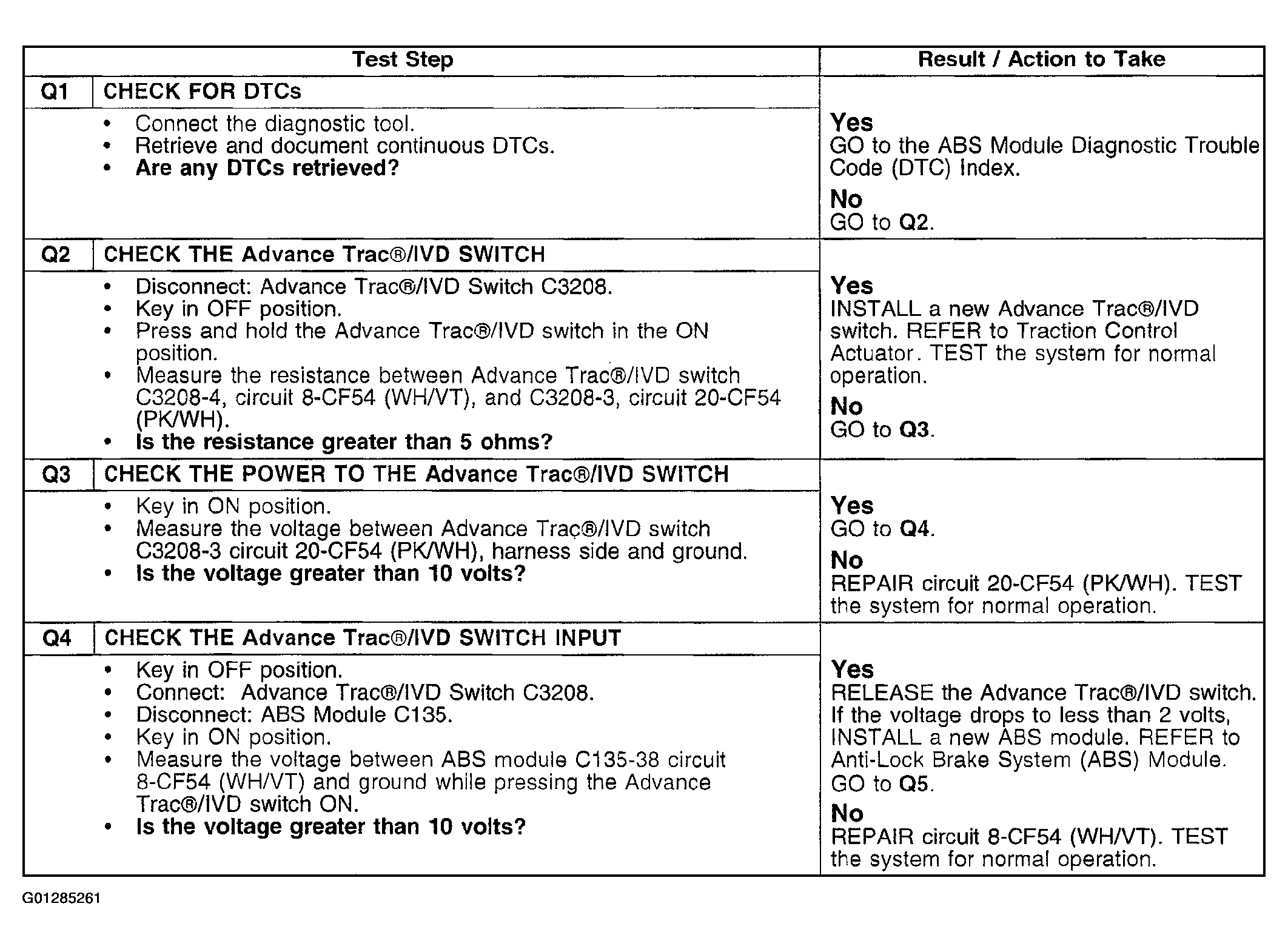

Fig 1: Pinpoint Test Q: DTC C1969 - Traction Control/Yaw Control Switch Circuit Fault (Steps Q1-Q4)
G01285261Courtesy of FORD MOTOR CO.

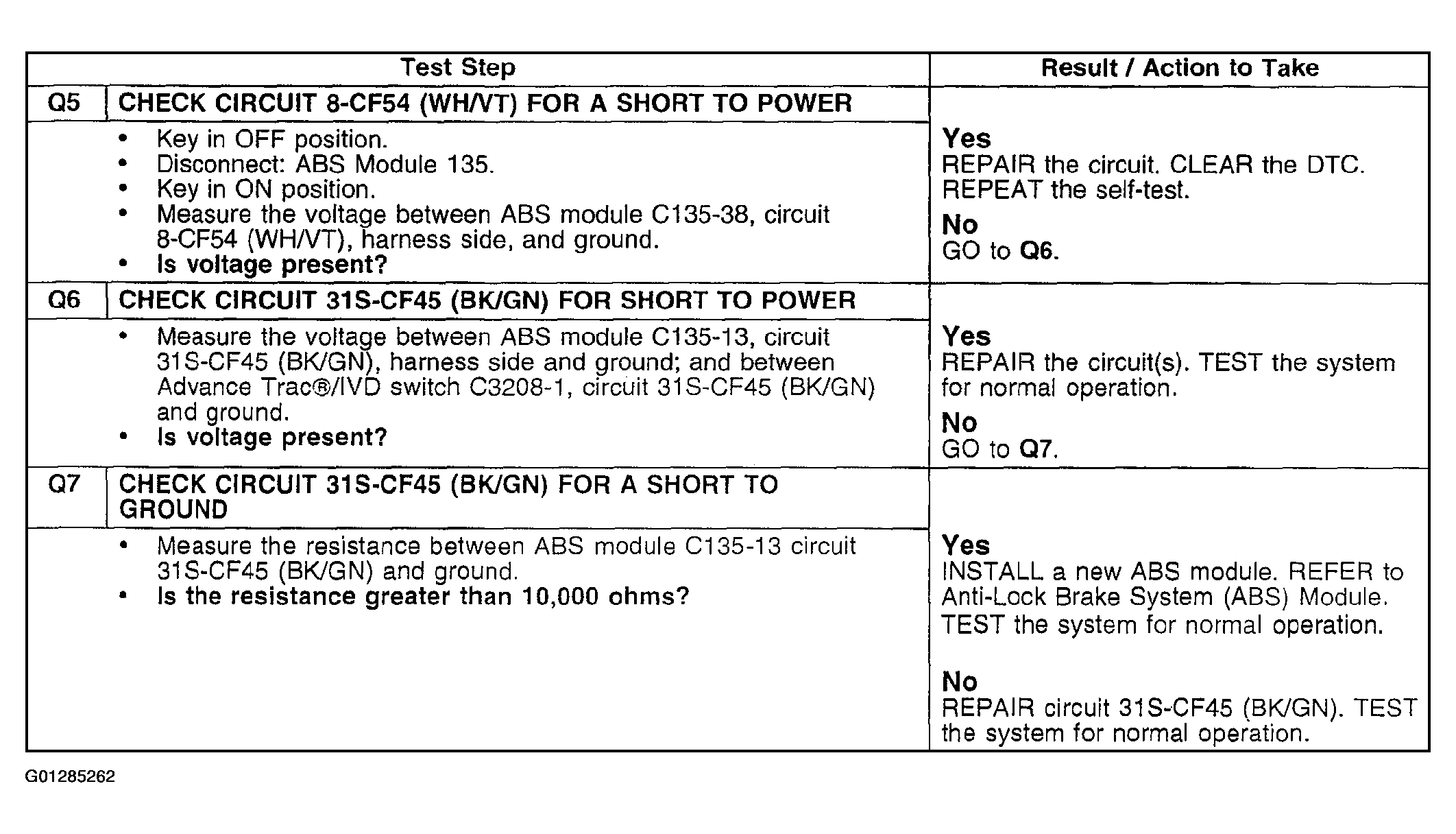

Fig 2: Pinpoint Test Q: DTC C1969 - Traction Control/Yaw Control Switch Circuit Fault (Steps Q5-Q7)
G01285262Courtesy of FORD MOTOR CO.
