Item 23: Transmission Range Sensor Installation Note

    CAUTION: The digital transmission range sensor must fit flush against the boss on the case to prevent damage to the sensor.

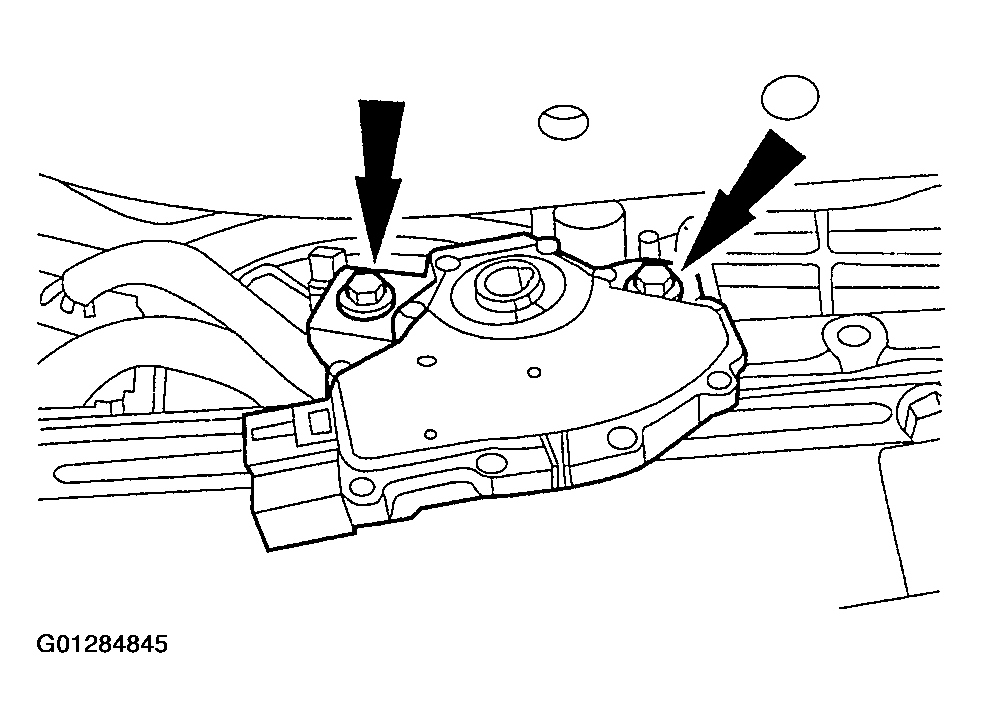

    Fig 1: Installing Digital Transmission Range (TR) Sensor
    G01284845Courtesy of FORD MOTOR CO.
  1. Install the digital transmission range (TR) sensor and loosely install the screws.
