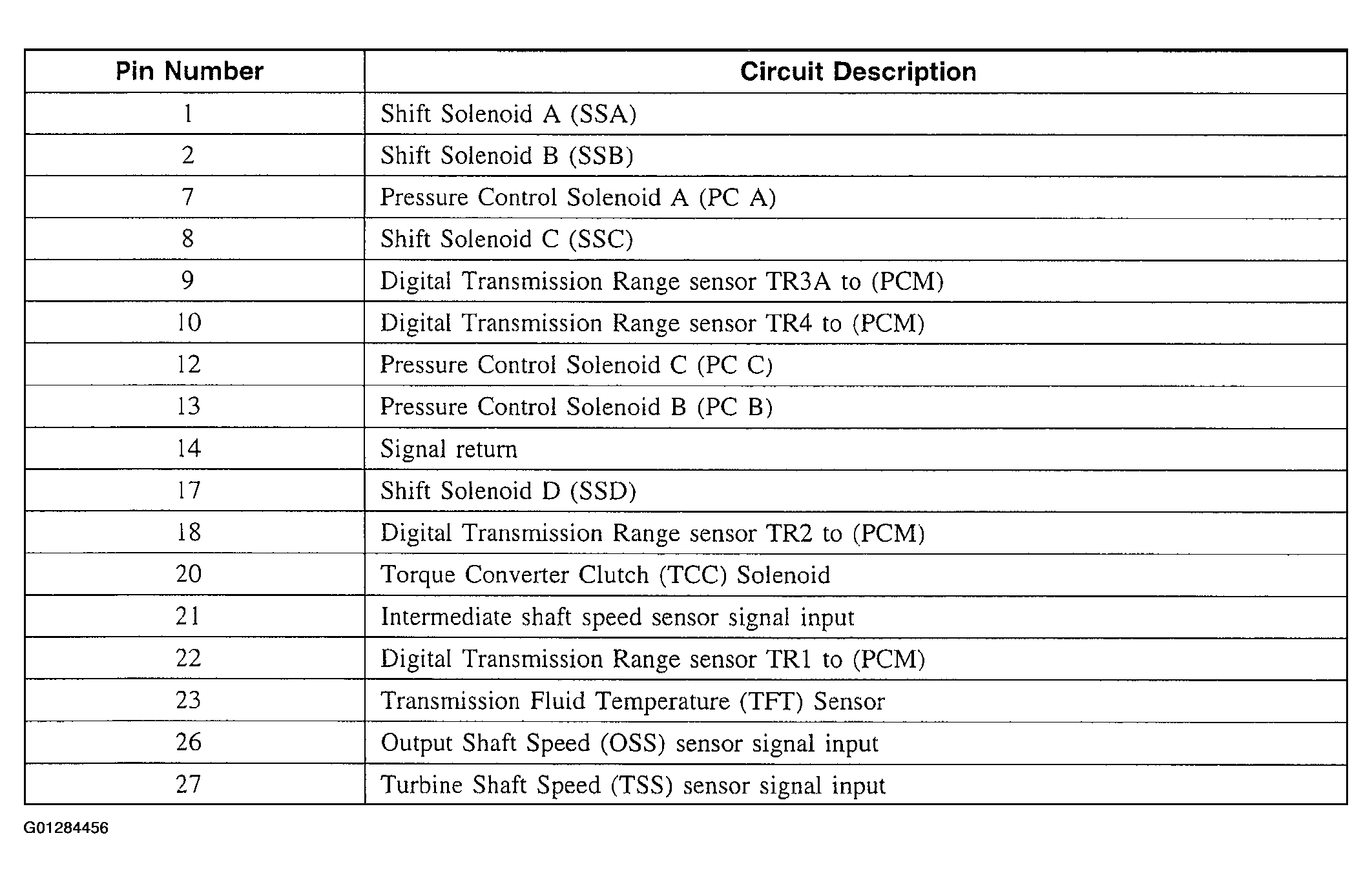

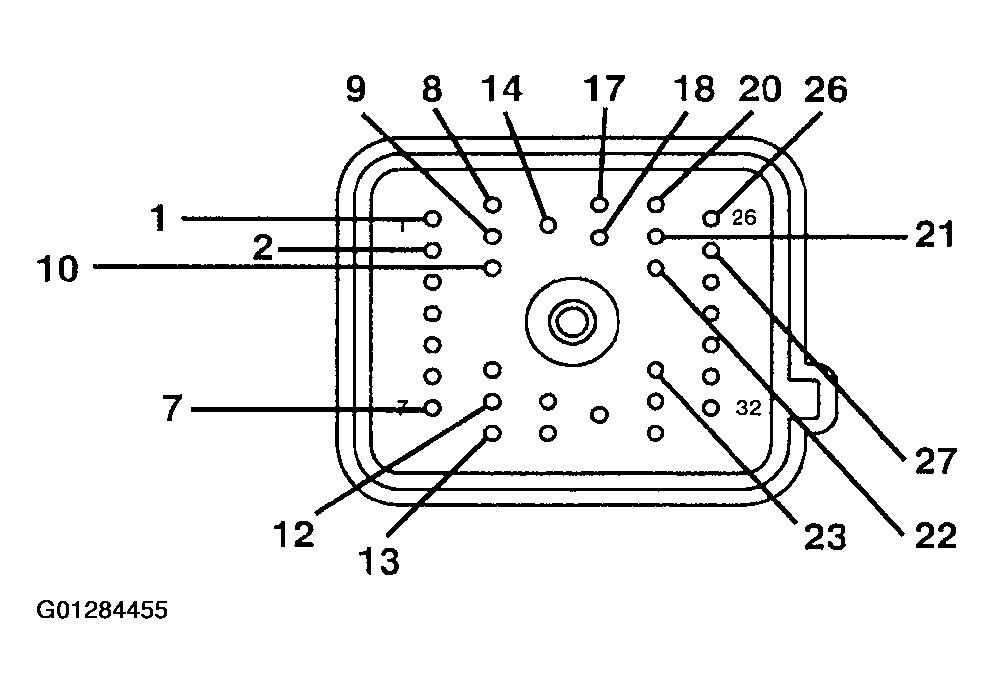

Home >> Lincoln >> 2003 >> LS 3.0 S >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - LS >> Diagnosis And Testing >> Transmission Connector Layouts >> Connector Reference and Terminal Readings >> Powertrain Control Module (PCM) C175b
