Item 2: Anti-Lock Brake System (ABS) Module Removal Note

  1. Position the battery junction box (BJB) aside.
    1. Release the clips.
    2. Position the BJB aside.

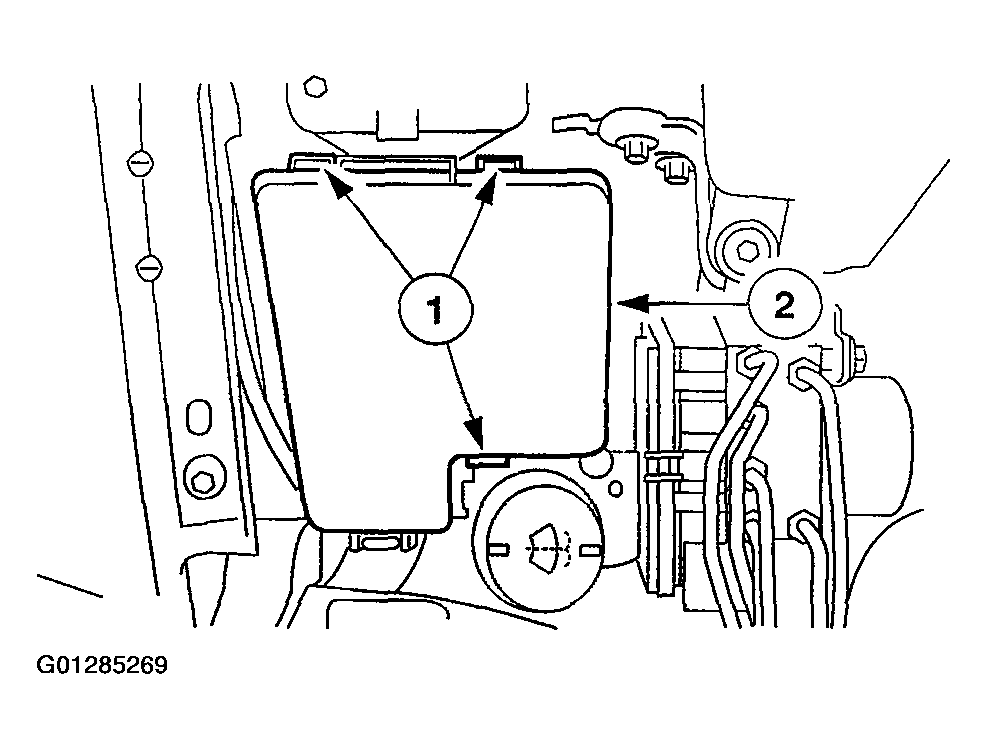

    Fig 1: Identifying Clips And BJB
    G01285269Courtesy of FORD MOTOR CO.
