Accelerometer/Yaw Rate Sensor C3073

Fig 1: Identifying Accelerometer/Yaw Rate Sensor C3073 Terminals
G01285204Courtesy of FORD MOTOR CO.

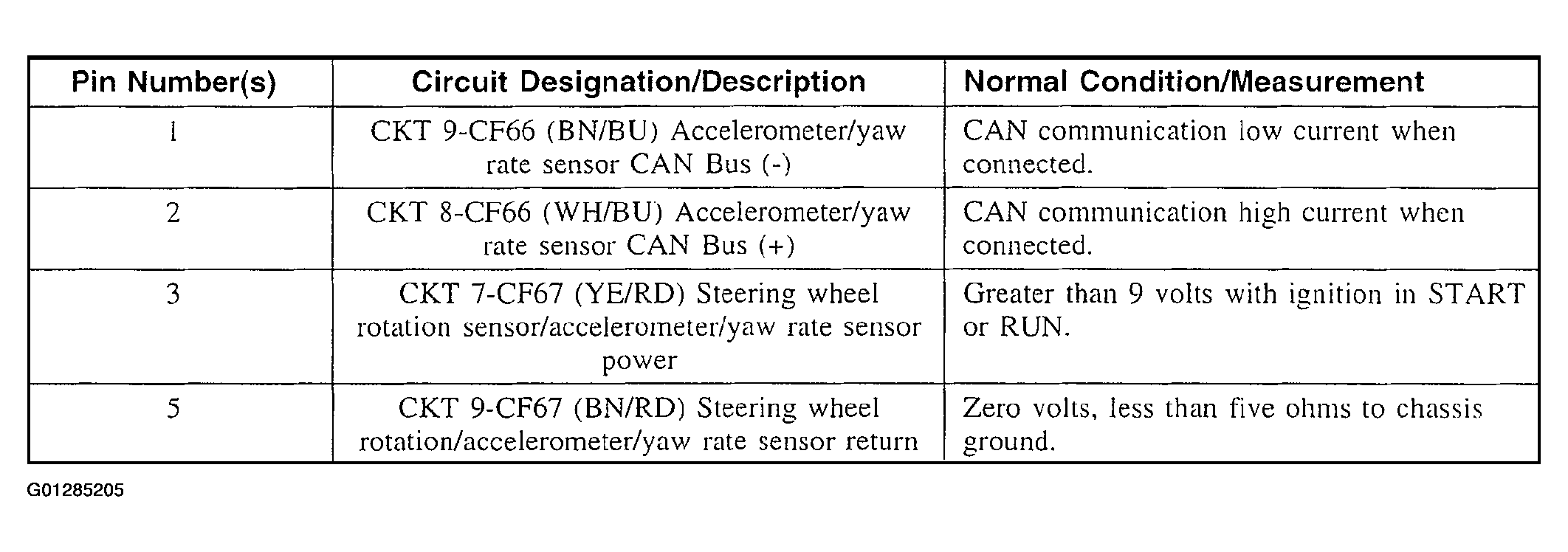

Fig 2: Accelerometer/Yaw Rate Sensor C3073 Terminals Readings
G01285205Courtesy of FORD MOTOR CO.
