Test Procedure

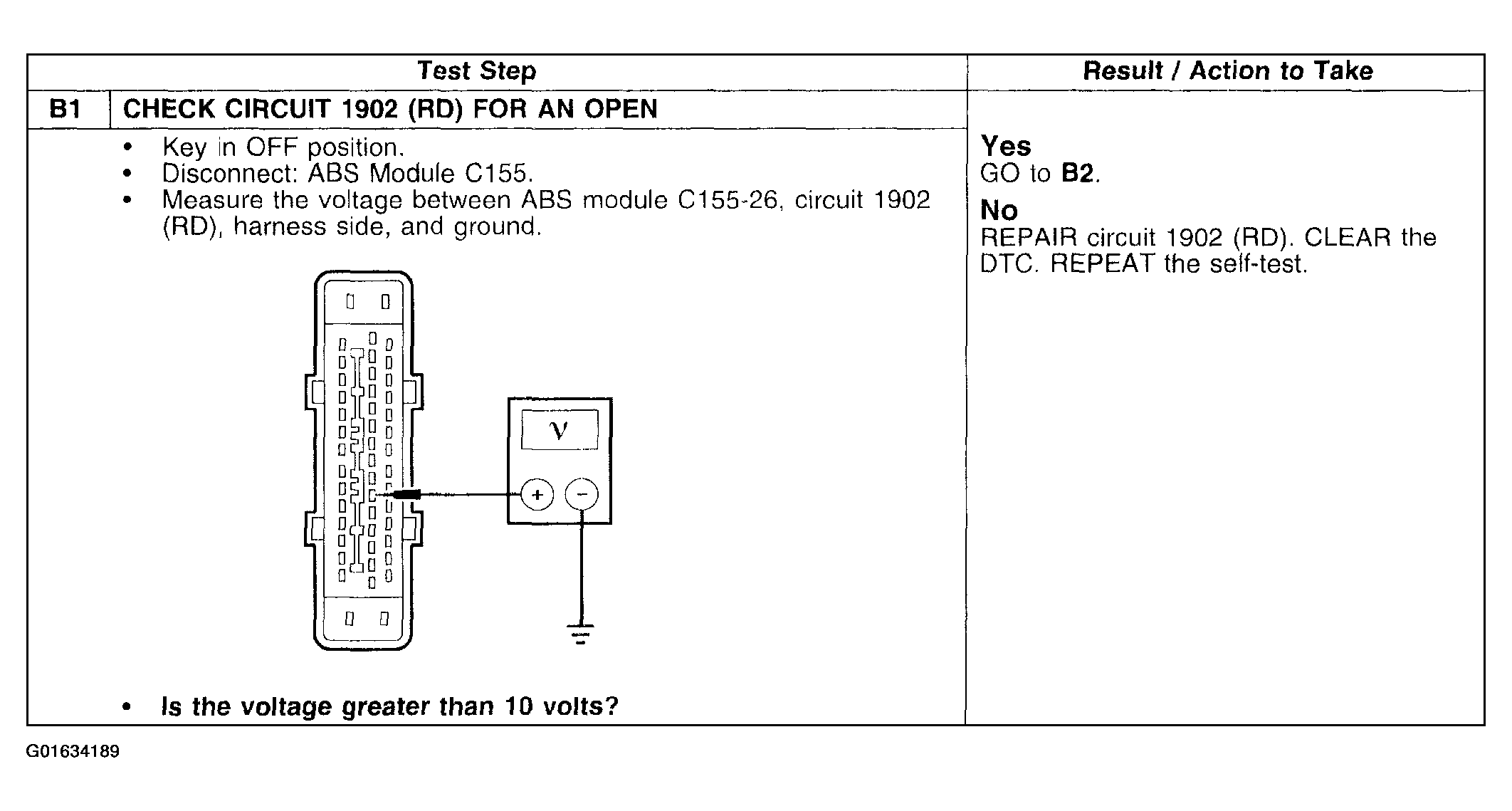

Fig 1: Pinpoint Test B: DTC B1483 - Brake Pedal Input Circuit Failure (Step B1)
G01634189Courtesy of FORD MOTOR CO.

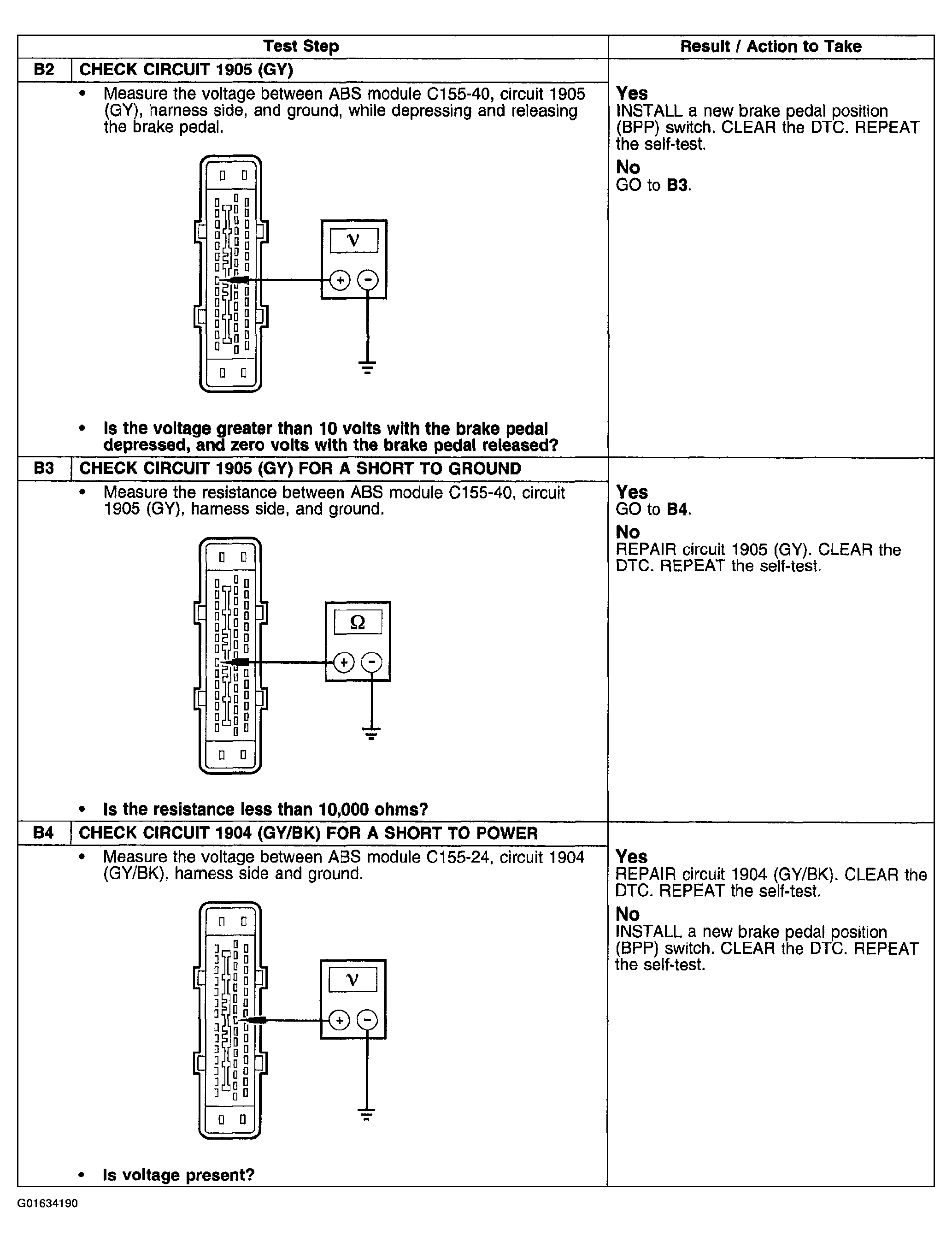

Fig 2: Pinpoint Test B: DTC B1483 - Brake Pedal Input Circuit Failure (Step B2-B4)
G01634190Courtesy of FORD MOTOR CO.
