Disassembly And Assembly: Notes

1. Position the vehicle on a hoist.
2. Remove the rear axle assembly. For additional information, refer to REAR AXLE ASSEMBLY .
3. Remove the components in the order indicated in the following illustration.
4. To assemble, reverse the disassembly procedure.

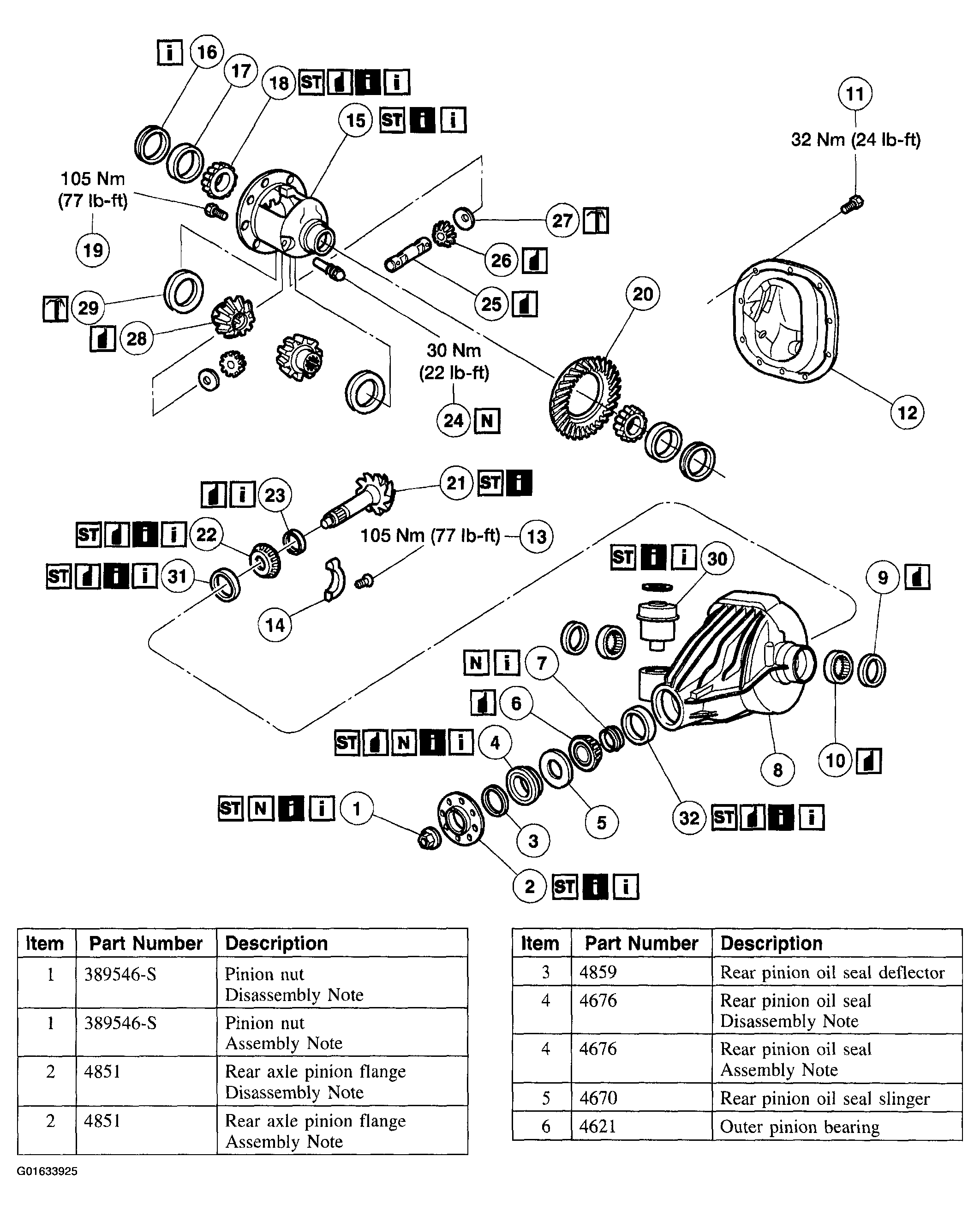

   Fig 1: Rear Axle Assembly Disassembly Sequence

   Courtesy of FORD MOTOR CO.

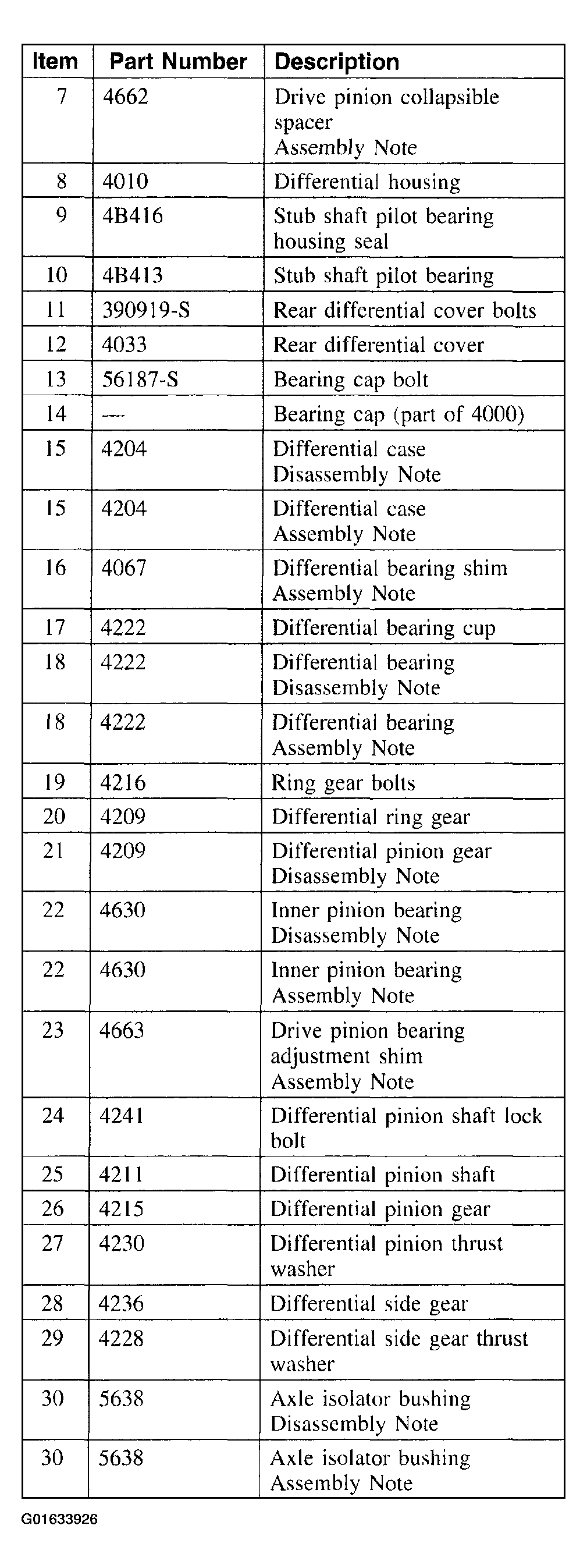

   Fig 2: Rear Axle Assembly Disassembly Sequence Legend (1 Of 2)

   Courtesy of FORD MOTOR CO.

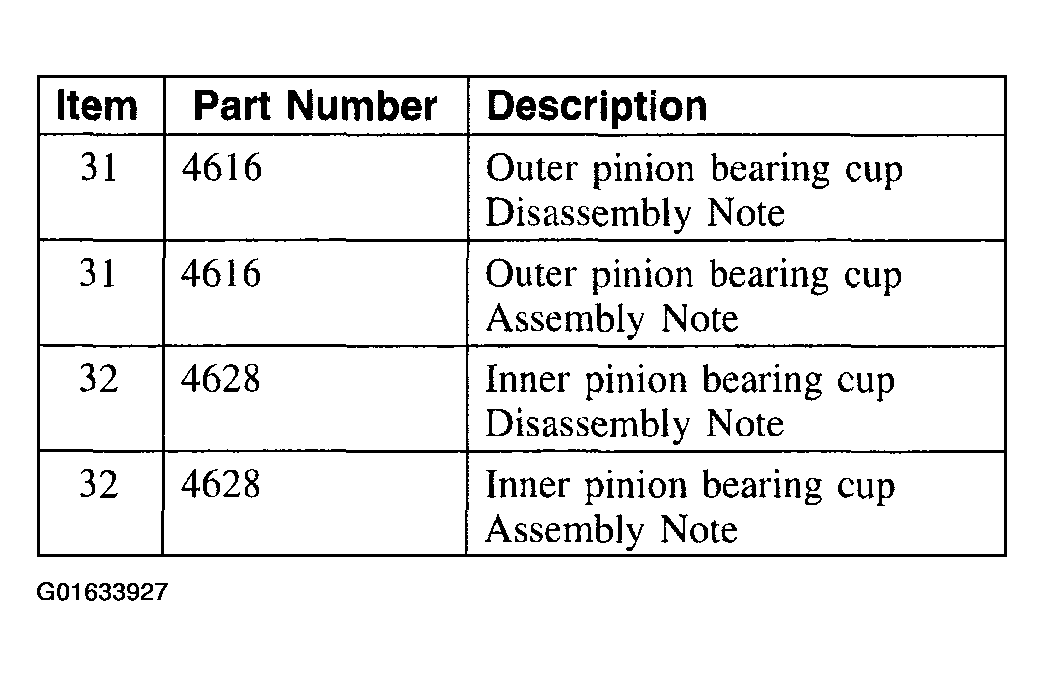

   Fig 3: Rear Axle Assembly Disassembly Sequence Legend (2 Of 2)

   Courtesy of FORD MOTOR CO.
5. Fill the axle with the specified quantity of the specified lubricant.
