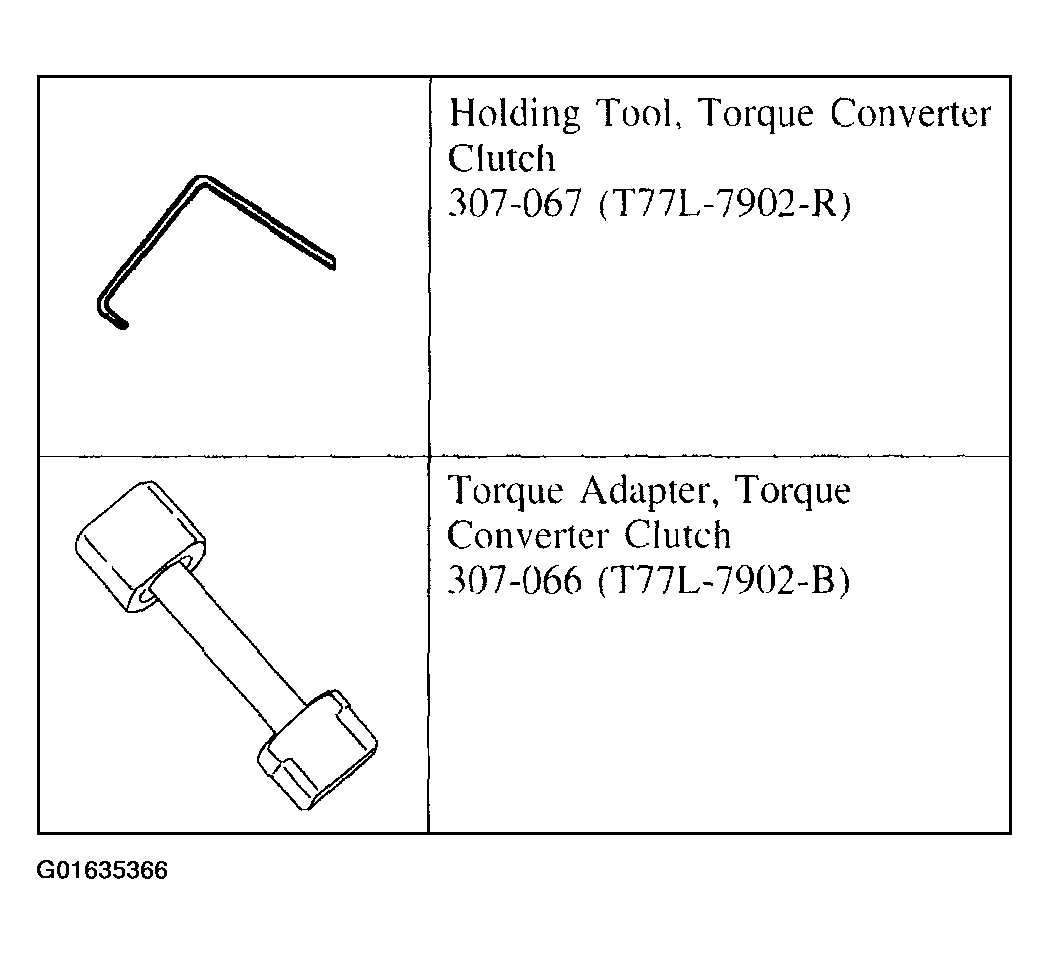

Special Tool(s)

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

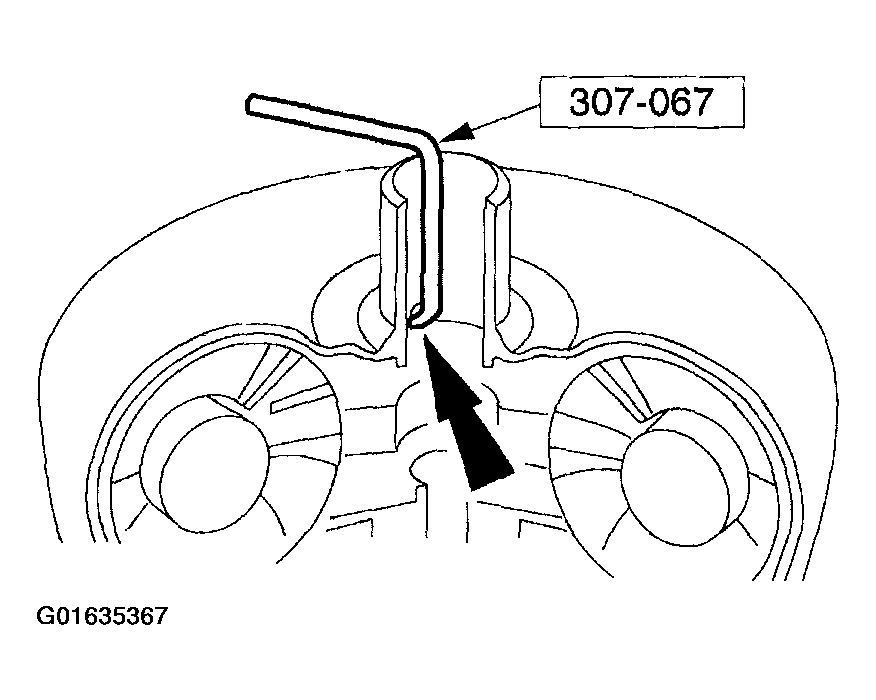

Insert the special tool into one of the grooves in the stator bearing retainer.

Fig 2: Inserting Special Tool
Courtesy of FORD MOTOR CO.

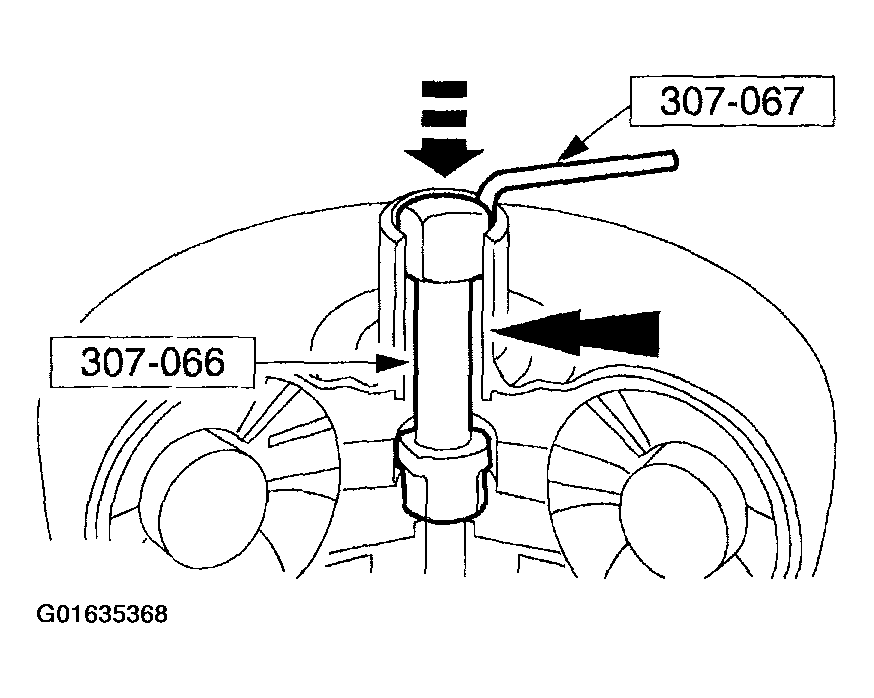

Install the special tools into the converter one-way clutch inner race spline.

Fig 3: Installing Special Tools Into Converter
Courtesy of FORD MOTOR CO.

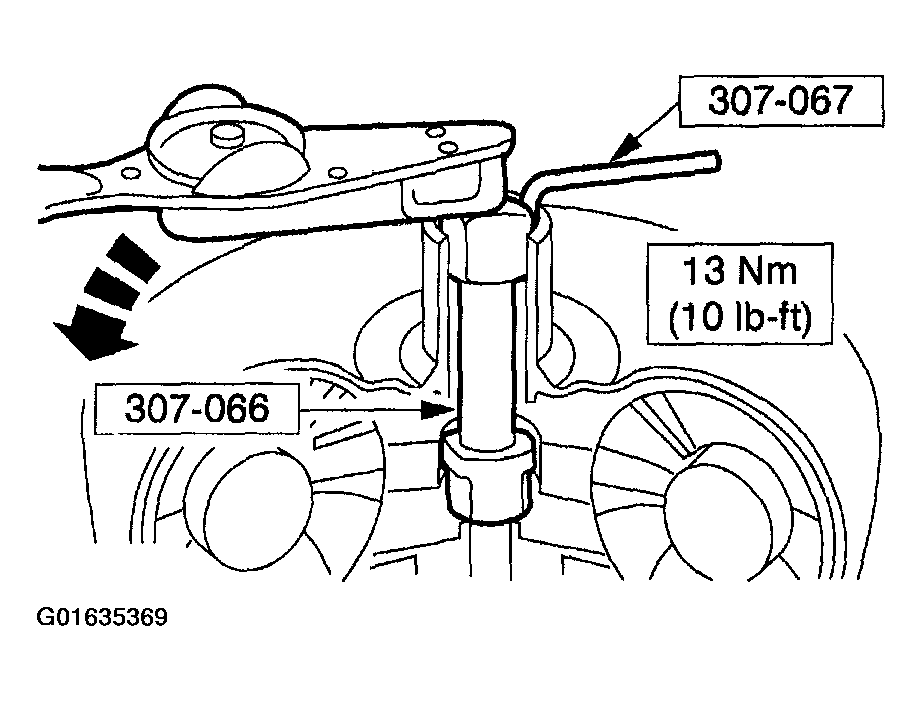

Use the special tool to hold the stator bearing retainer while using the special tool to turn the converter one-way clutch inner race spline.
- The torque converter one-way clutch should lock up and hold torque in the counterclockwise direction.
- The torque converter one-way clutch should rotate freely in the clockwise direction.
- Try the clutch for lockup and hold in at least five positions.
- If the converter fails the lockup torque test, install a new or rebuilt torque converter.

  Fig 4: Holding Stator Bearing Retainer
  Courtesy of FORD MOTOR CO.
