Special Tool(s)

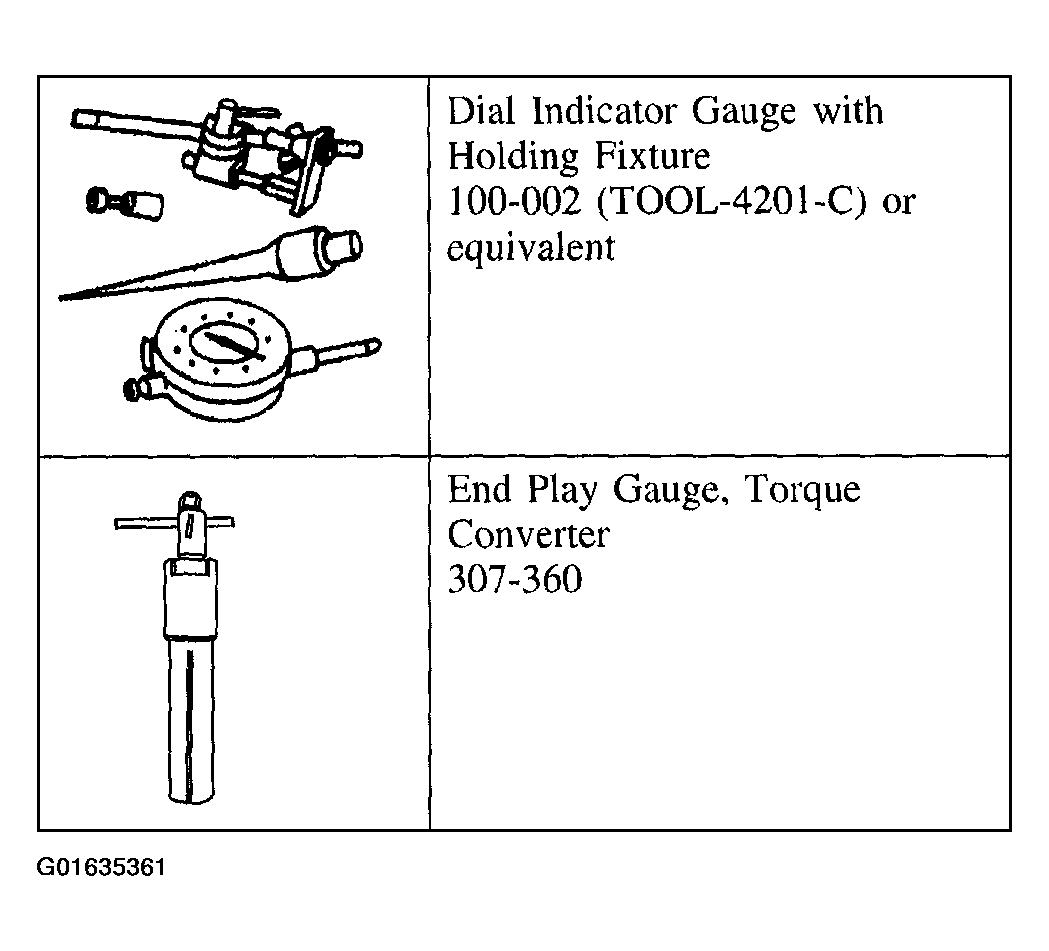

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

Install the special tool into the torque converter until it bottoms out.
- Tighten the inner post until the tool is securely locked.

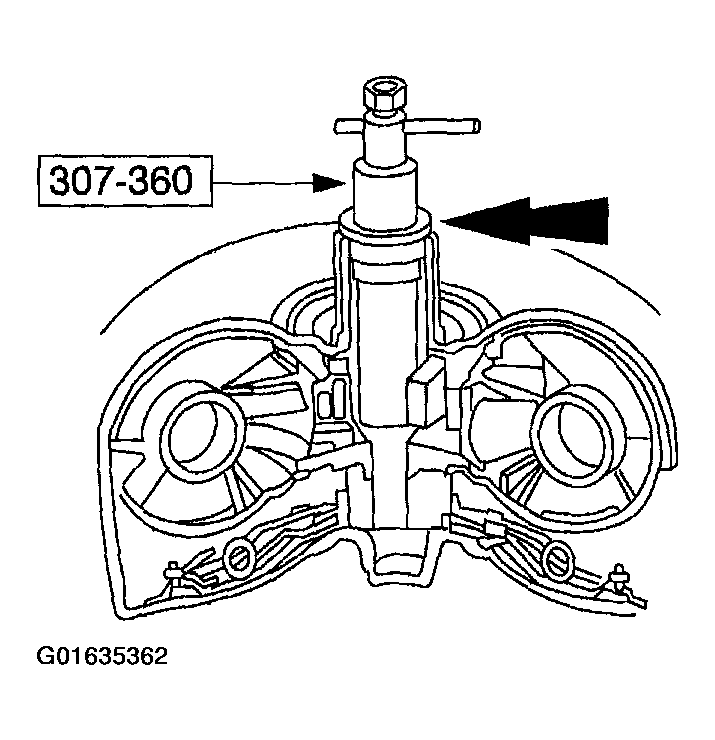

  Fig 2: Tightening Inner Post
  Courtesy of FORD MOTOR CO.
Install the special tool on the converter impeller housing and zero the dial.

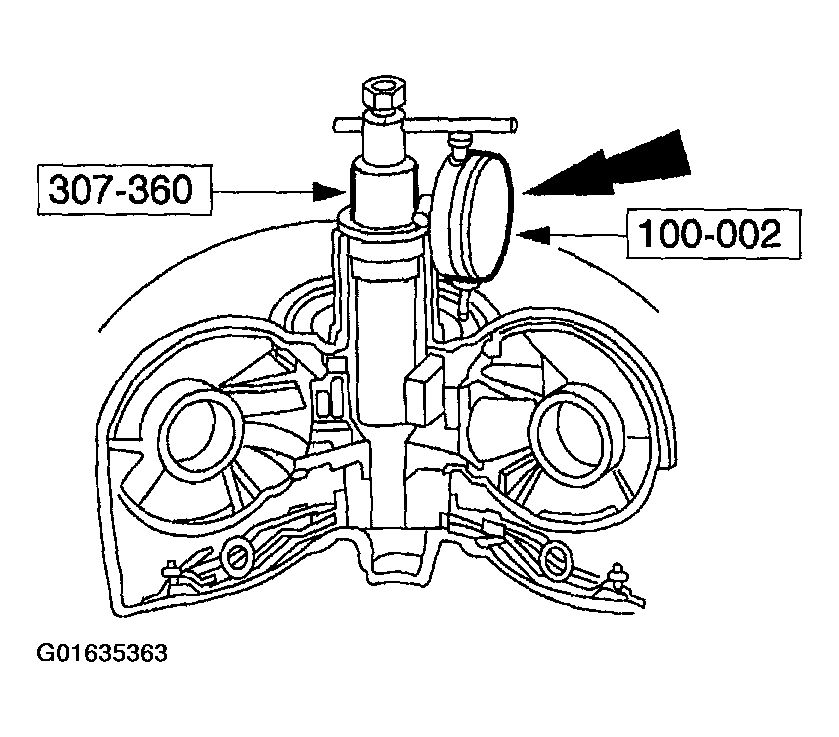

Fig 3: Installing Dial Indicator Gauge On Converter Impeller Housing
Courtesy of FORD MOTOR CO.
Lift up on the special tool and note the dial indicator reading. If the reading exceeds end play limits, install a new or rebuilt torque converter.

Fig 4: Torque Converter End Play Chart
Courtesy of FORD MOTOR CO.

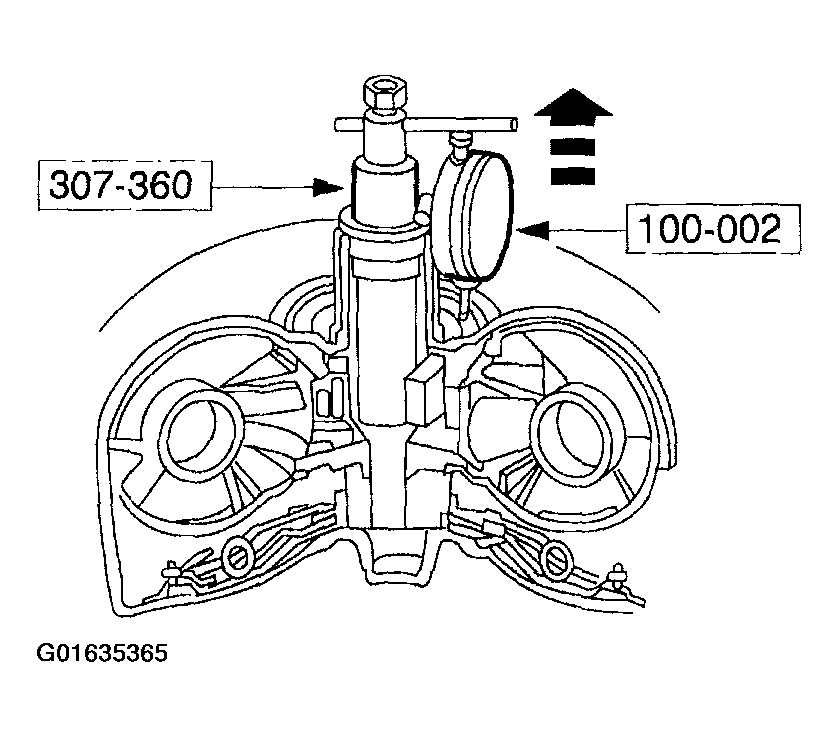

Fig 5: Checking Torque Converter End Play
Courtesy of FORD MOTOR CO.
