Digital Transmission Range (TR) Sensor

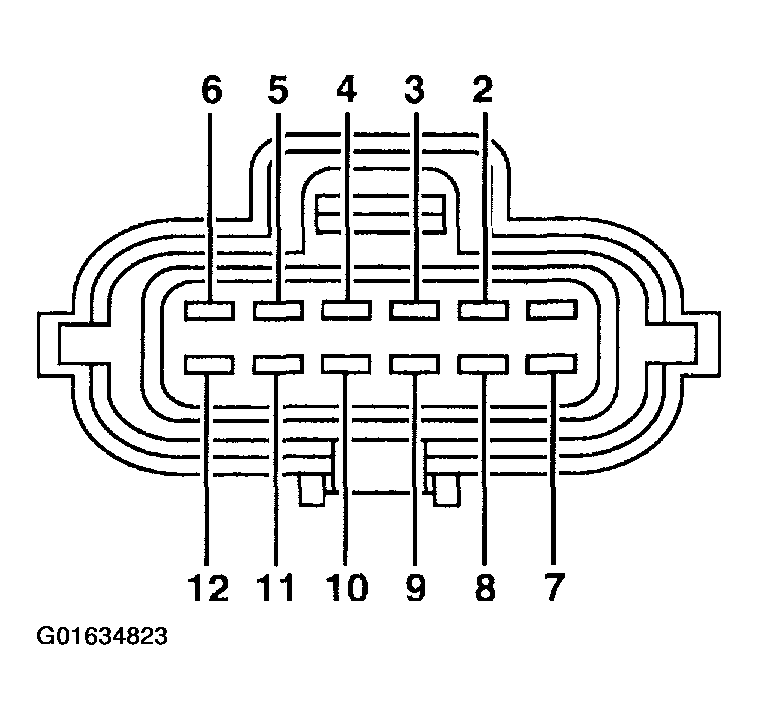

Fig 1: Identifying Digital Transmission Range (TR) Sensor Connector
G01634823Courtesy of FORD MOTOR CO.

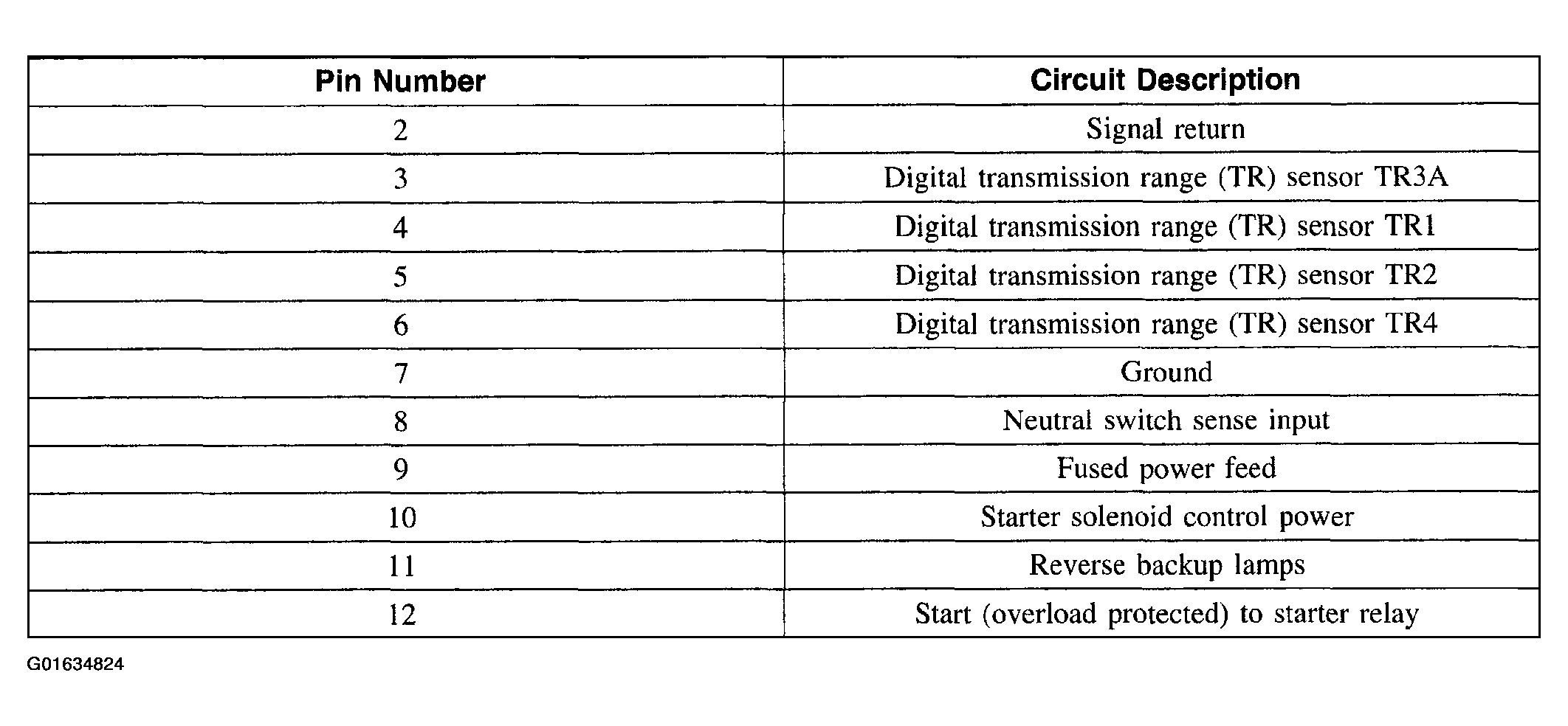

Fig 2: Identifying Digital Transmission Range (TR) Sensor Connector Terminal Pins
G01634824Courtesy of FORD MOTOR CO.
