Home >> Lincoln >> 2003 >> Aviator AWD >> Repair and Diagnosis >> Transmission >> Automatic Transaxle/Transmission >> Diagnosis And Testing >> Pinpoint Tests - OSC Equipped Vehicles >> SSA, SSB

SSA, SSB

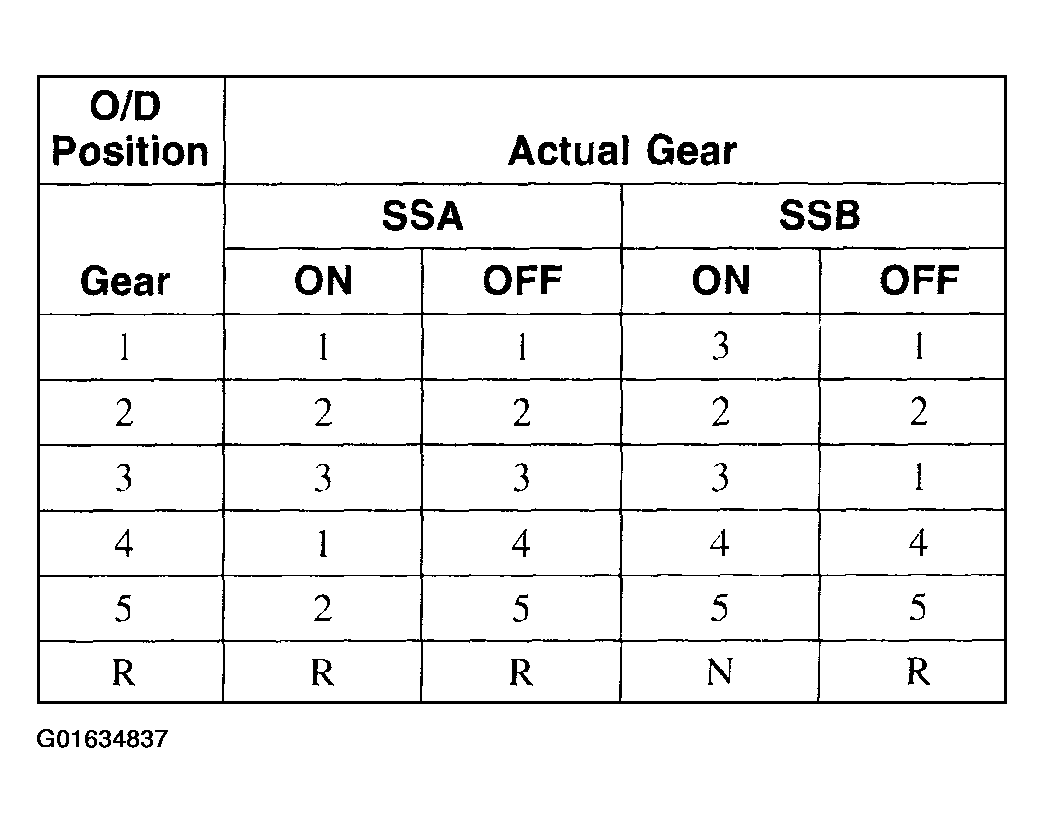

Fig 1: SSA, SSB Chart (1 Of 2)

G01634837

Courtesy of FORD MOTOR CO.

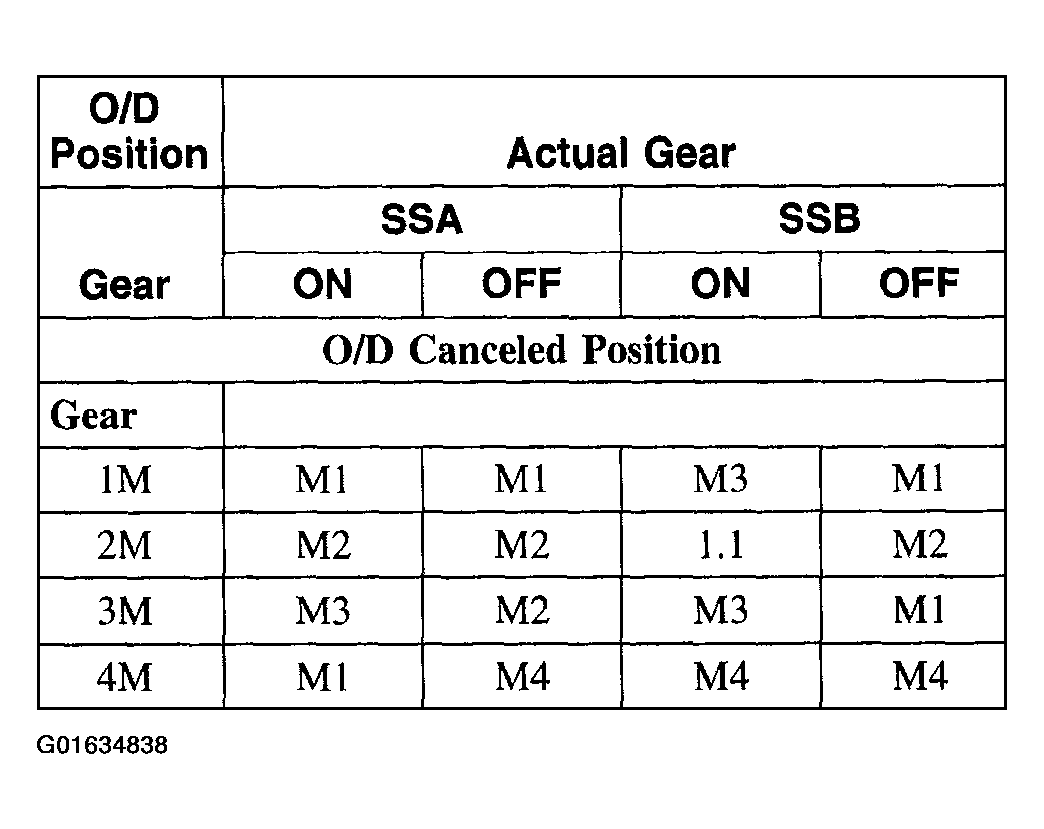

Fig 2: SSA, SSB Chart (2 Of 2)

G01634838

Courtesy of FORD MOTOR CO.
