Home >> Lincoln >> 2003 >> Aviator AWD >> Repair and Diagnosis >> Transmission >> Automatic Transaxle/Transmission >> Diagnosis And Testing >> Pinpoint Tests - OSC Equipped Vehicles >> Pinpoint Test C: Digital Transmission Range (TR) Sensor >> Test Procedure

Test Procedure

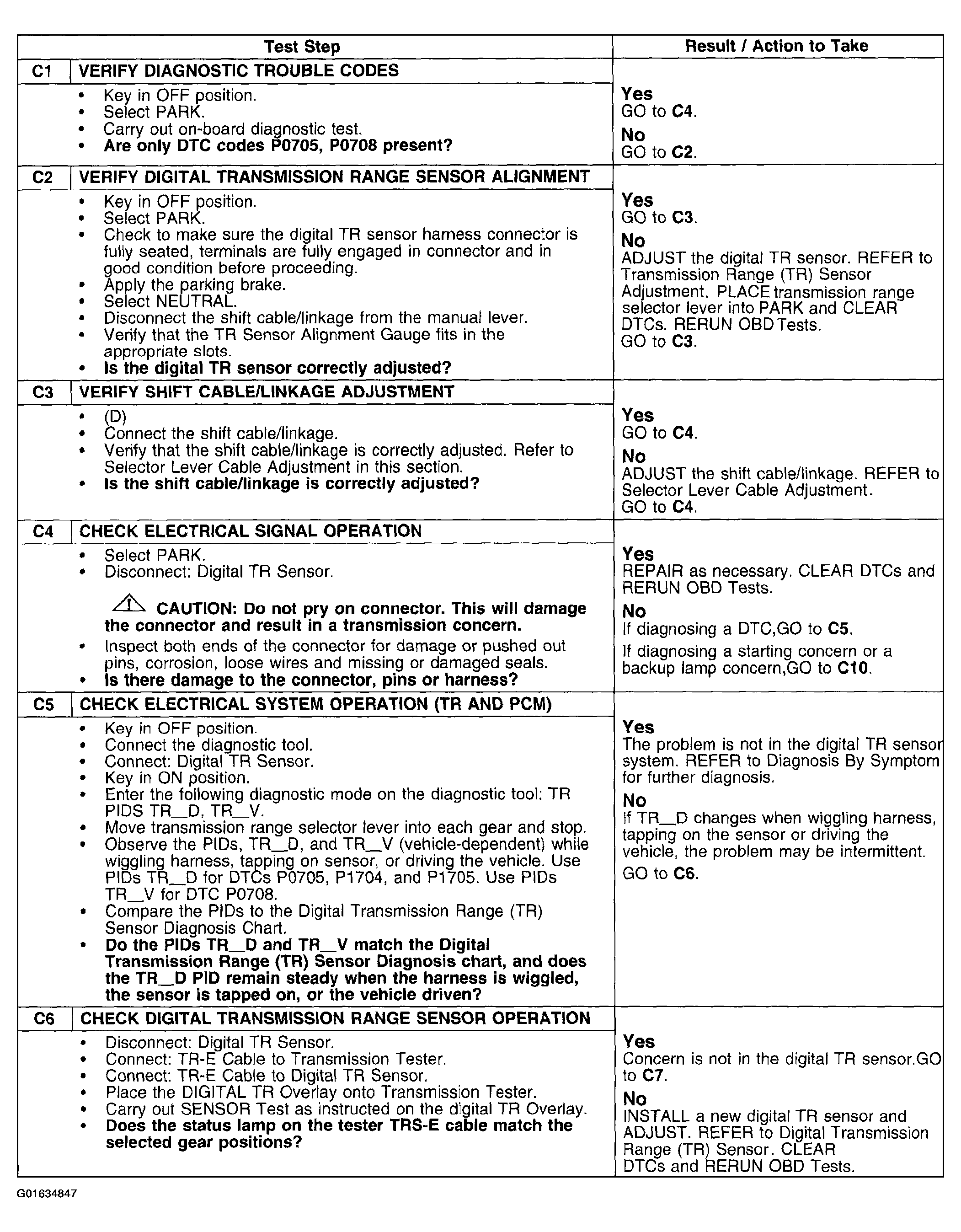

Fig 1: Pinpoint Test C: Digital Transmission Range (TR) Sensor (Steps C1-C5)
G01634847Courtesy of FORD MOTOR CO.

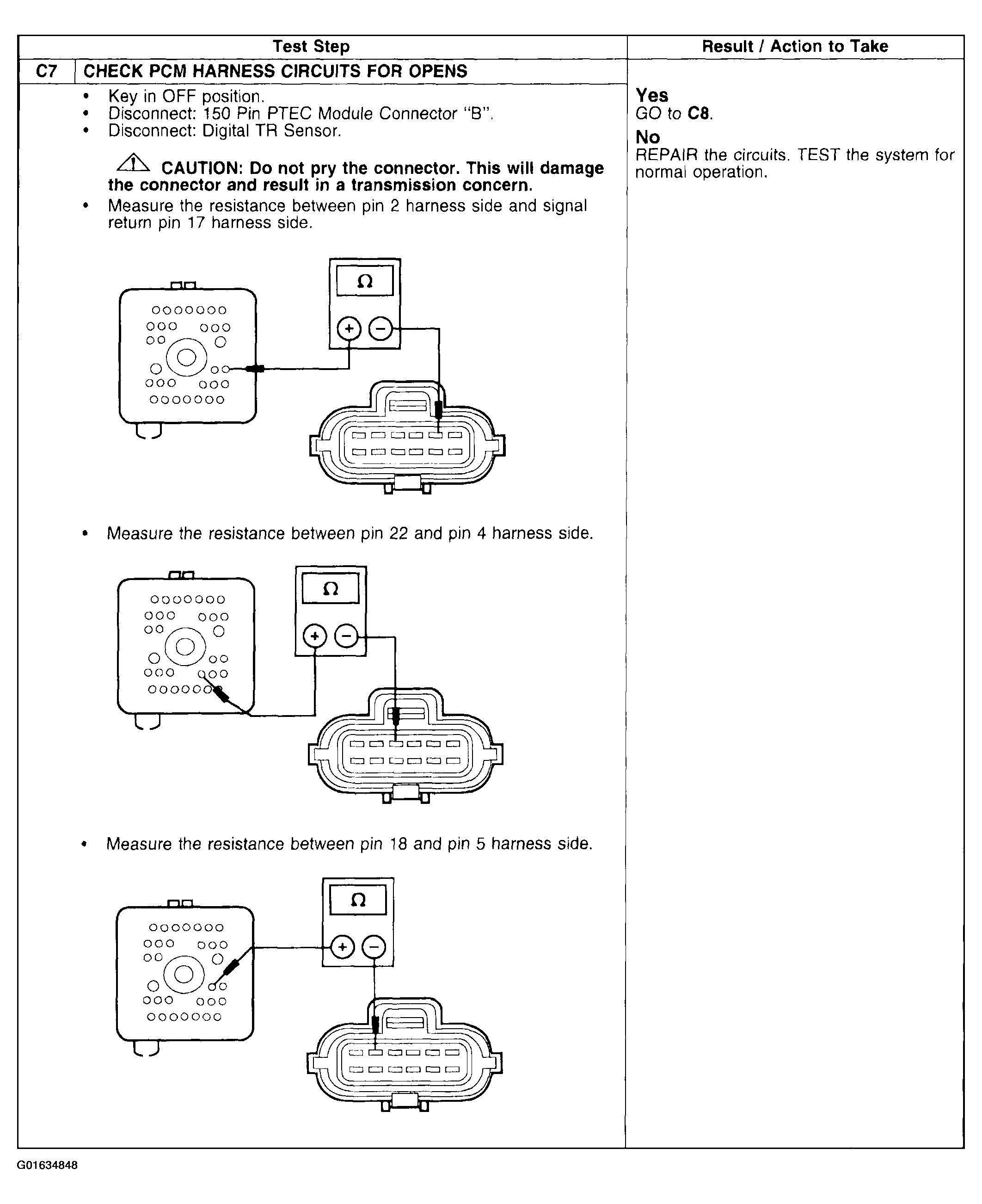

Fig 2: Pinpoint Test C: Digital Transmission Range (TR) Sensor (Step C7)
G01634848Courtesy of FORD MOTOR CO.

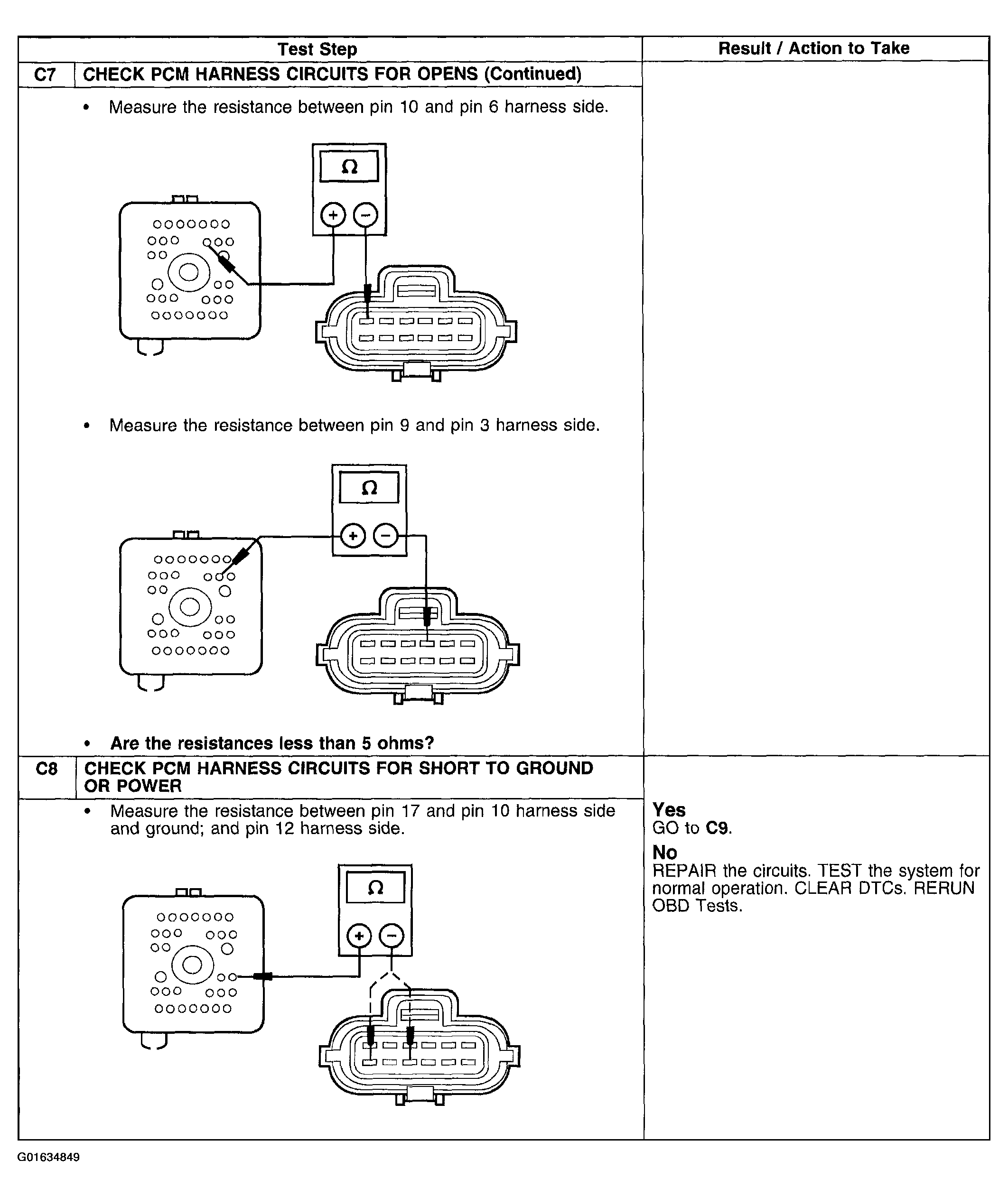

Fig 3: Pinpoint Test C: Digital Transmission Range (TR) Sensor (Steps C7 Cont. & C8)
G01634849Courtesy of FORD MOTOR CO.

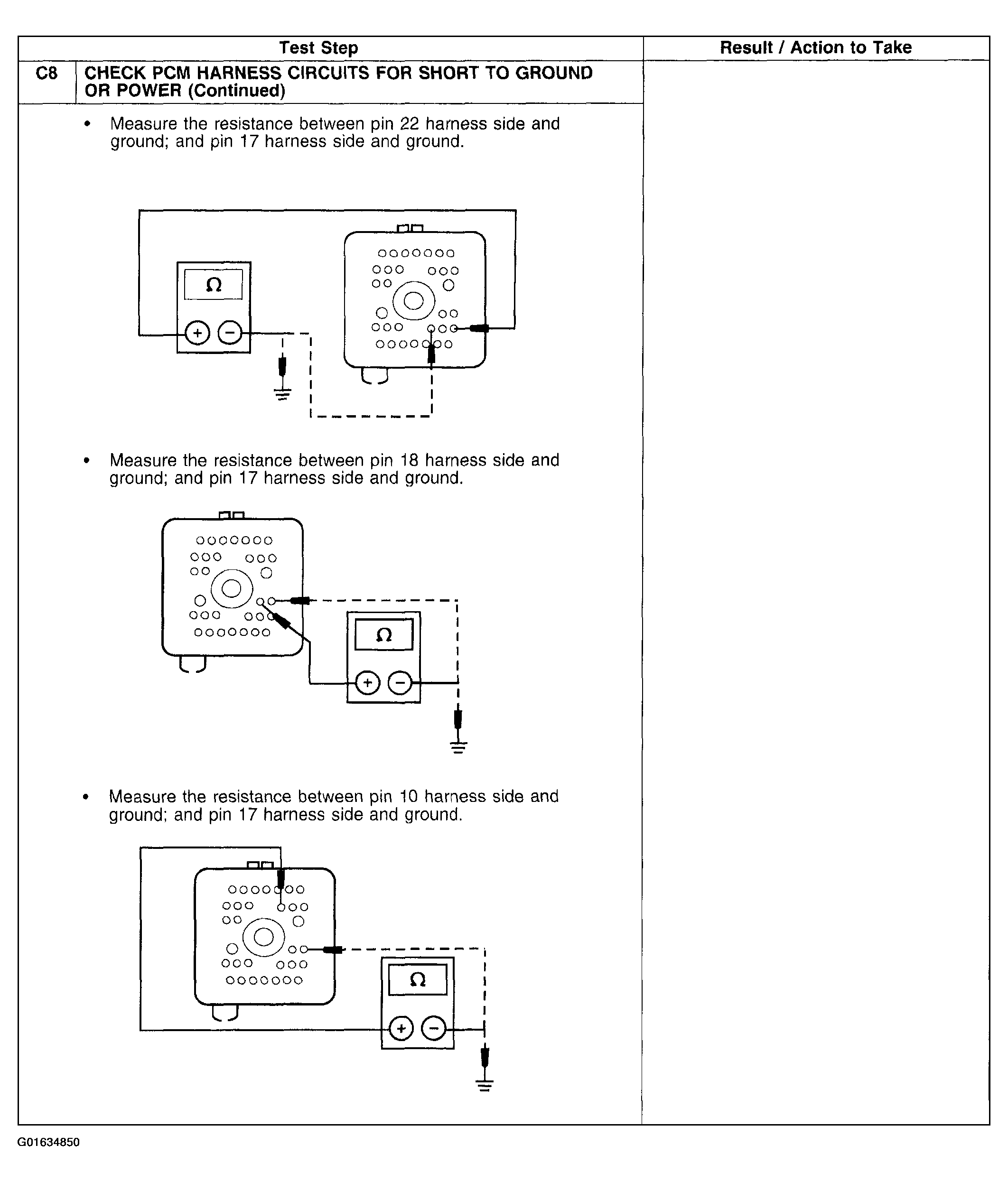

Fig 4: Pinpoint Test C: Digital Transmission Range (TR) Sensor (Step C8 Cont.)
G01634850Courtesy of FORD MOTOR CO.

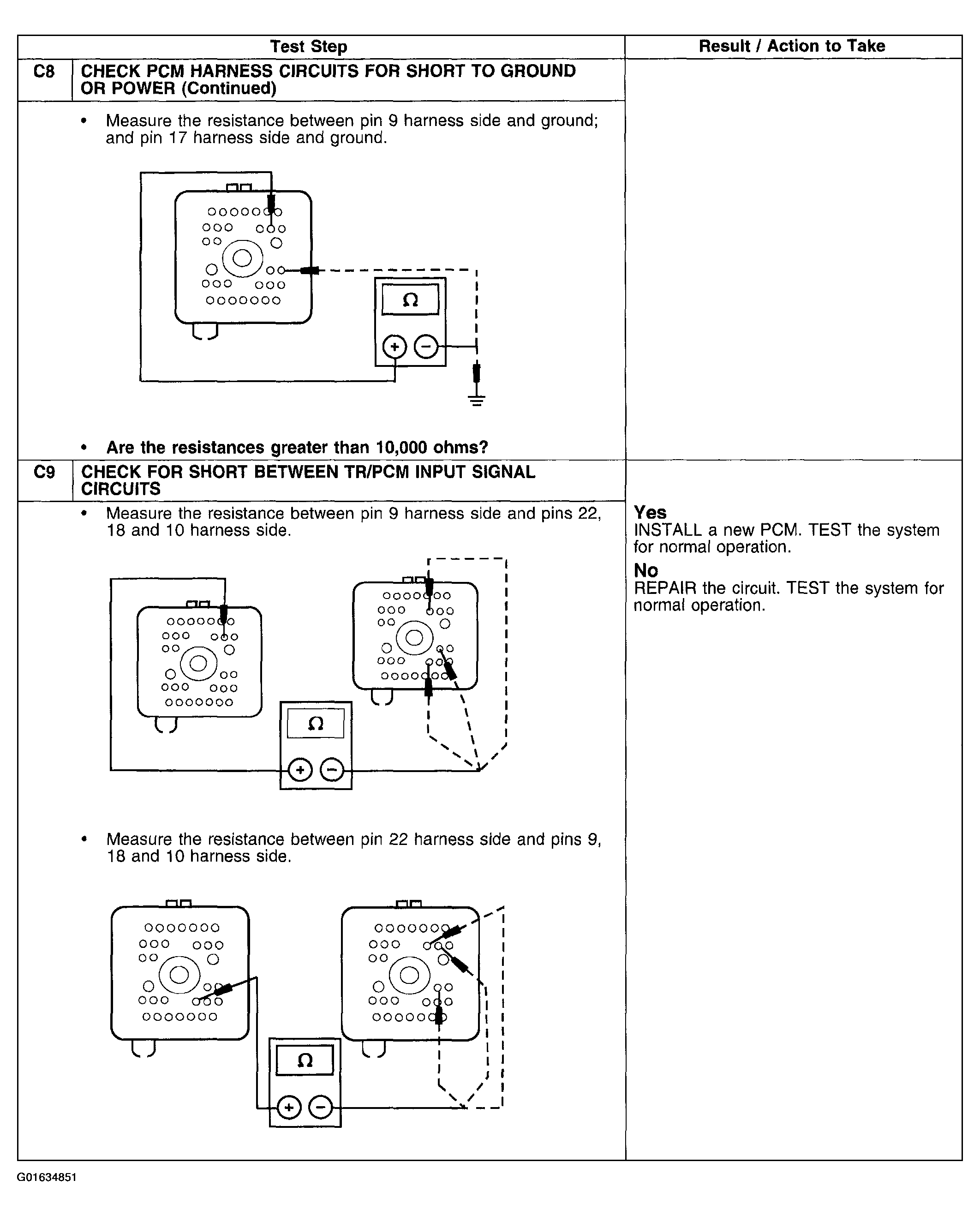

Fig 5: Pinpoint Test C: Digital Transmission Range (TR) Sensor (Steps C8 Cont. & C9)
G01634851Courtesy of FORD MOTOR CO.

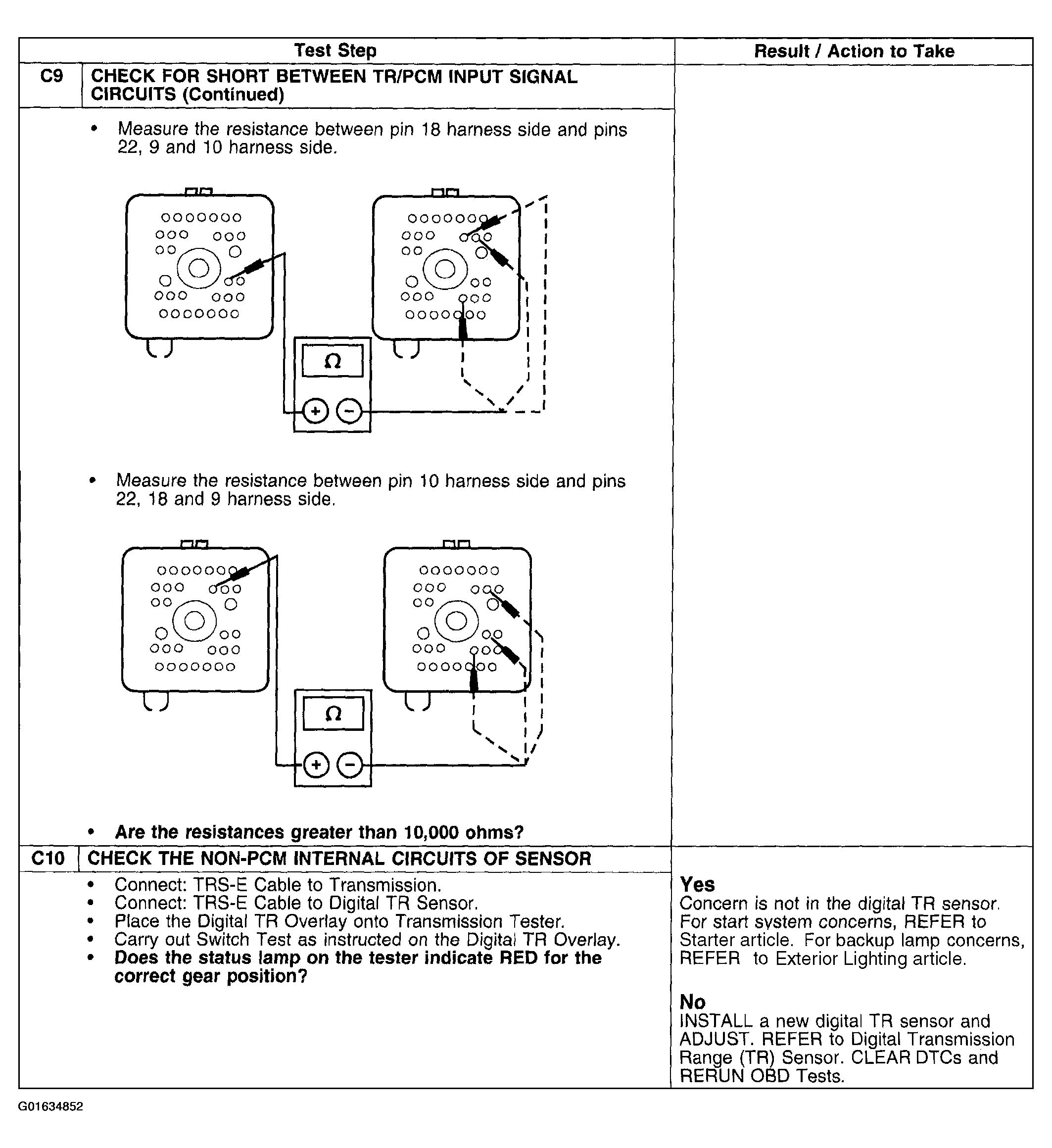

Fig 6: Pinpoint Test C: Digital Transmission Range (TR) Sensor (Steps C9 Cont. & C10)
G01634852Courtesy of FORD MOTOR CO.
