Removal And Installation

WARNING: This page is about a different car, the 2004 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ambient air temperature sensor.
    1. Disconnect the ambient air temperature sensor electrical connector.
    2. Remove the ambient air temperature sensor.

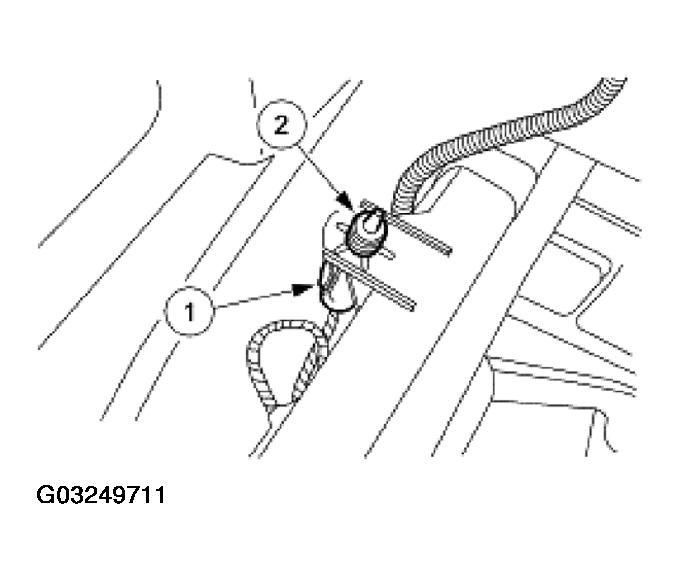

    Fig 1: Removing Ambient Air Temperature Sensor
    G03249711Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
