Engine Coolant Temperature Sender Unit: Installation

WARNING: This page is about a different car, the 2004 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the water temperature indicator sender unit.
    1. Install the water temperature indicator sender unit.
    2. Connect the electrical connector.

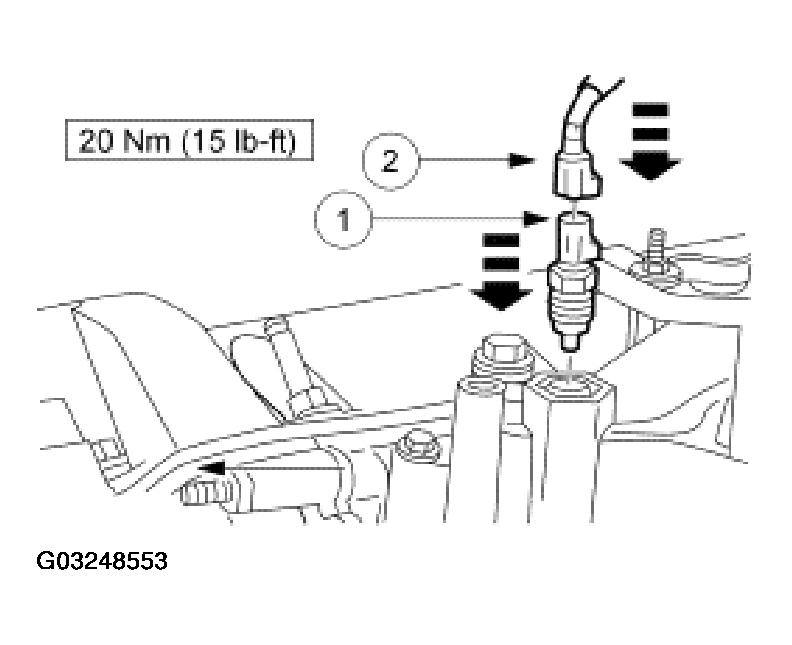

    Fig 1: Connecting Electrical Connector
    G03248553Courtesy of FORD MOTOR CO.
  2. Install the engine appearance cover.

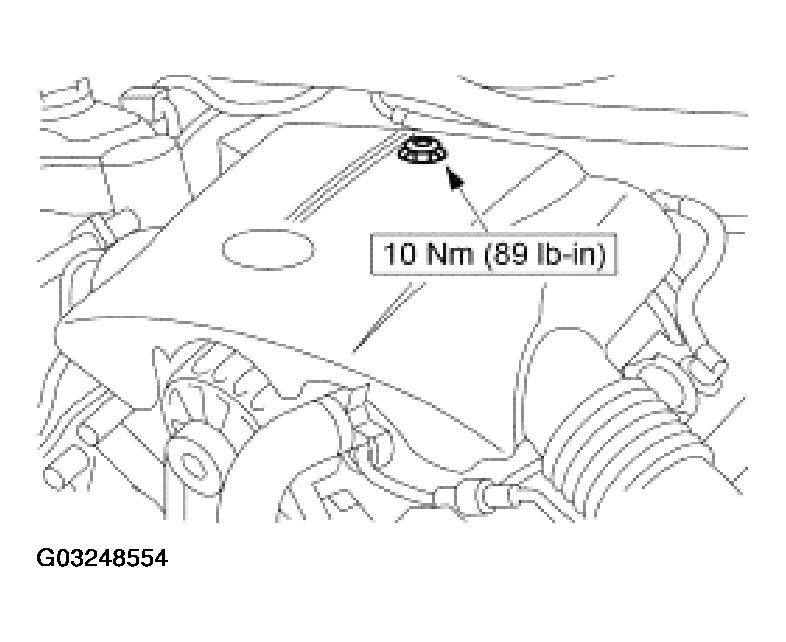

    Fig 2: Installing Engine Appearance Cover
    G03248554Courtesy of FORD MOTOR CO.
  3. Fill the engine cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
