Pinpoint Test H: The Speed Control Is Inoperative - No DTCS
WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

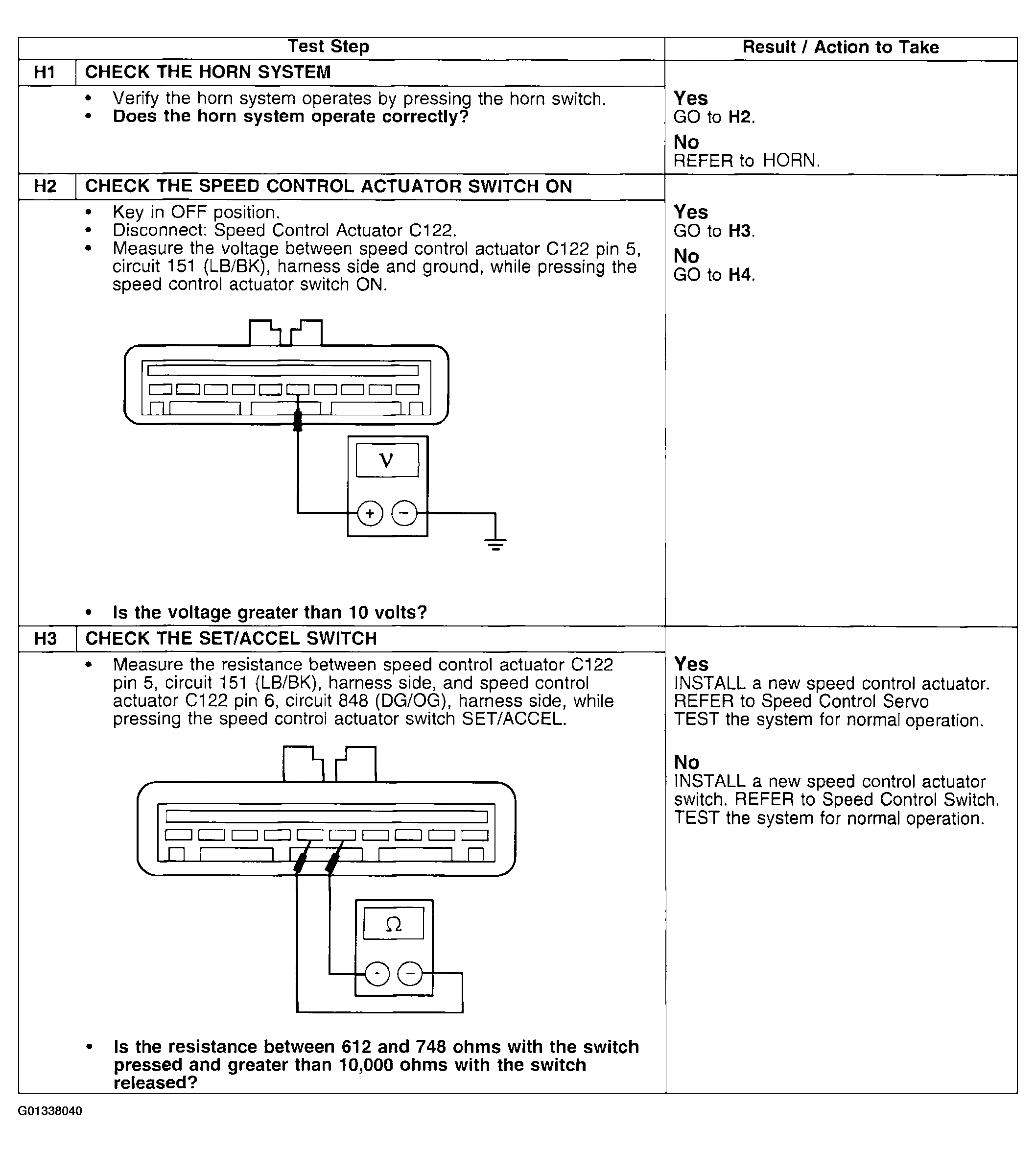

Fig 1: Pinpoint Test H: The Speed Control Is Inoperative - No DTCs (1 Of 3)
Courtesy of FORD MOTOR CO.

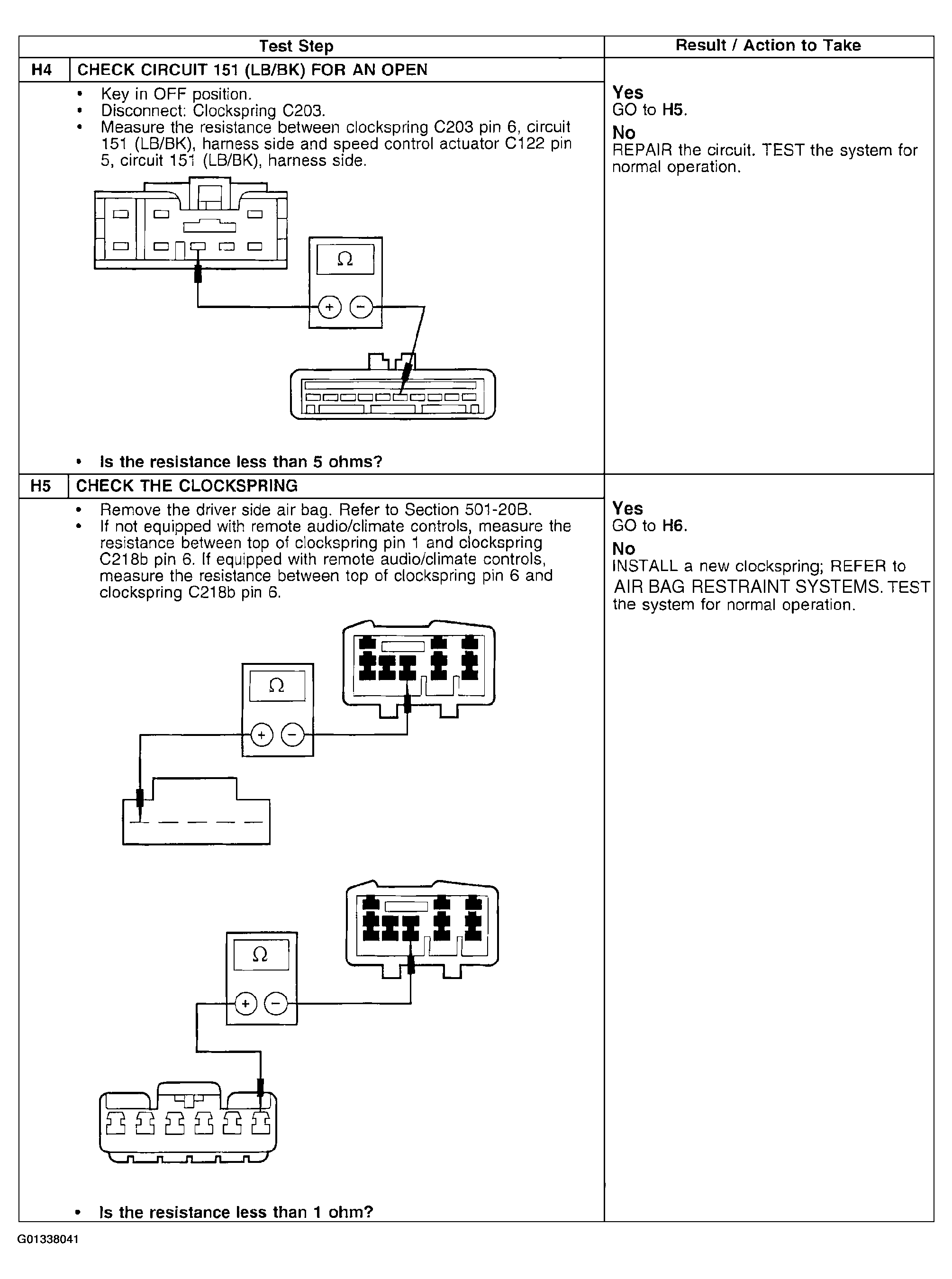

Fig 2: Pinpoint Test H: The Speed Control Is Inoperative - No DTCs (2 Of 3)
Courtesy of FORD MOTOR CO.

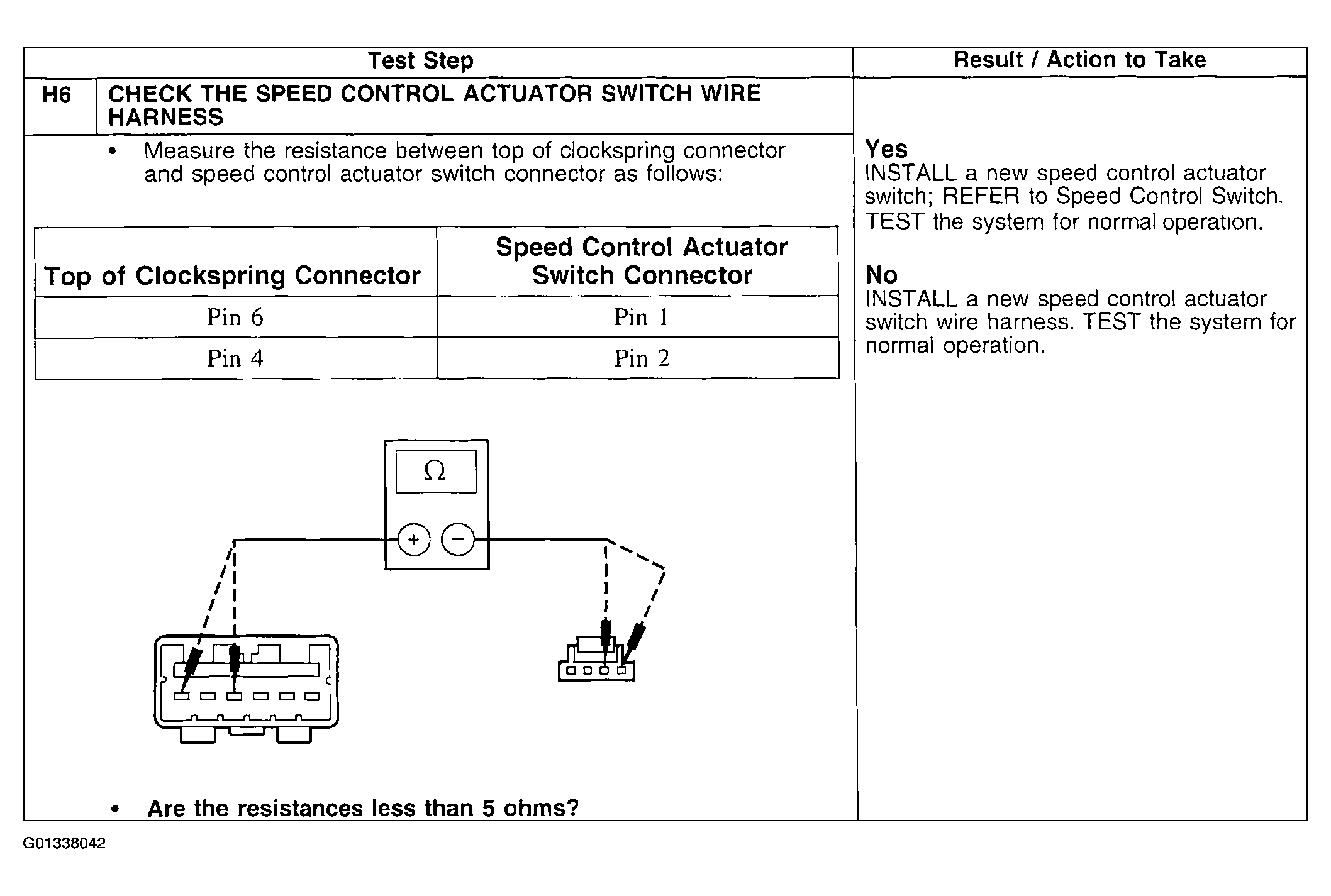

Fig 3: Pinpoint Test H: The Speed Control Is Inoperative - No DTCs (3 Of 3)
