Pinpoint Test I: Battery Condition Test
>>
Possible Causes
Possible Causes
battery charge
battery

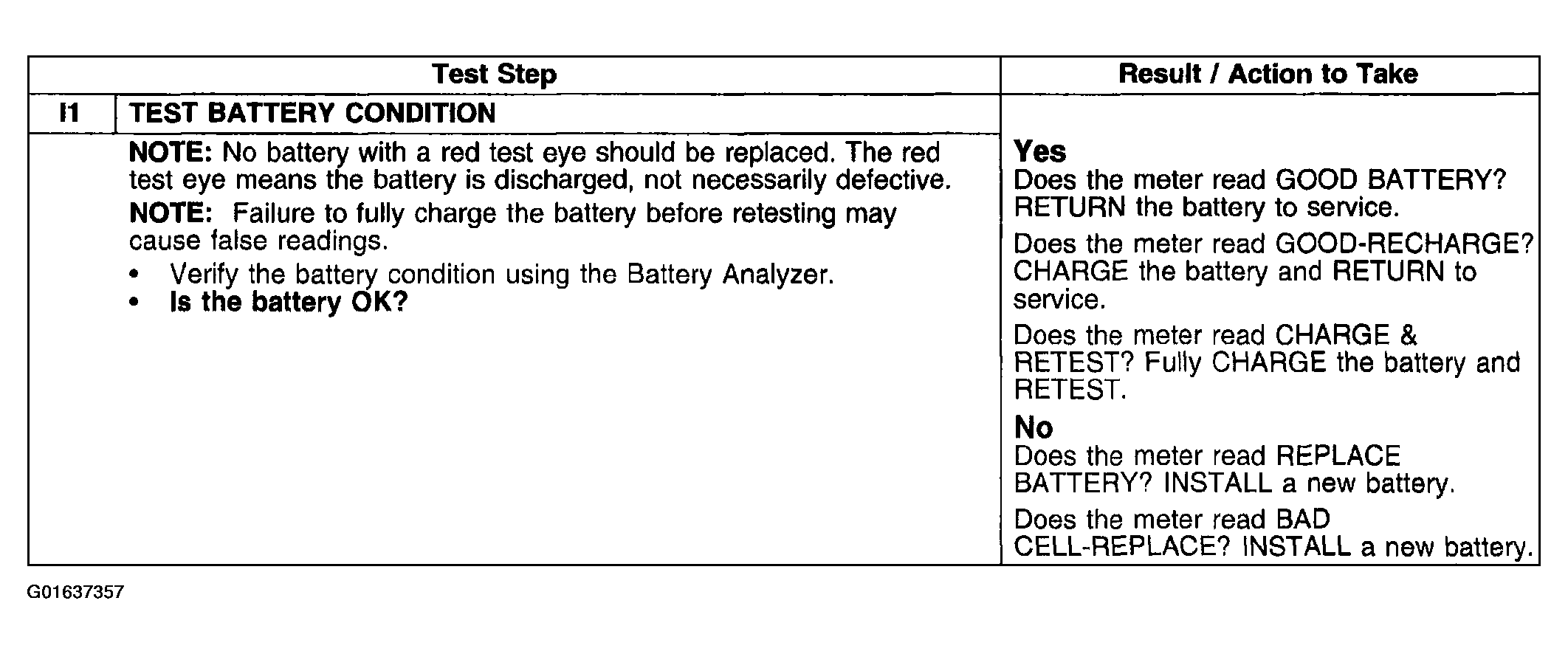

Fig 1: Pinpoint Test I: Battery Condition Test
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
