Home >> Lincoln >> 2003 >> Aviator AWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Control >> Diagnosis And Testing >> Anti-Lock Control >> Pinpoint Tests >> Pinpoint Test M: DTC C1960 - Driver Brake Apply Circuit Fault >> Test Procedure

Test Procedure

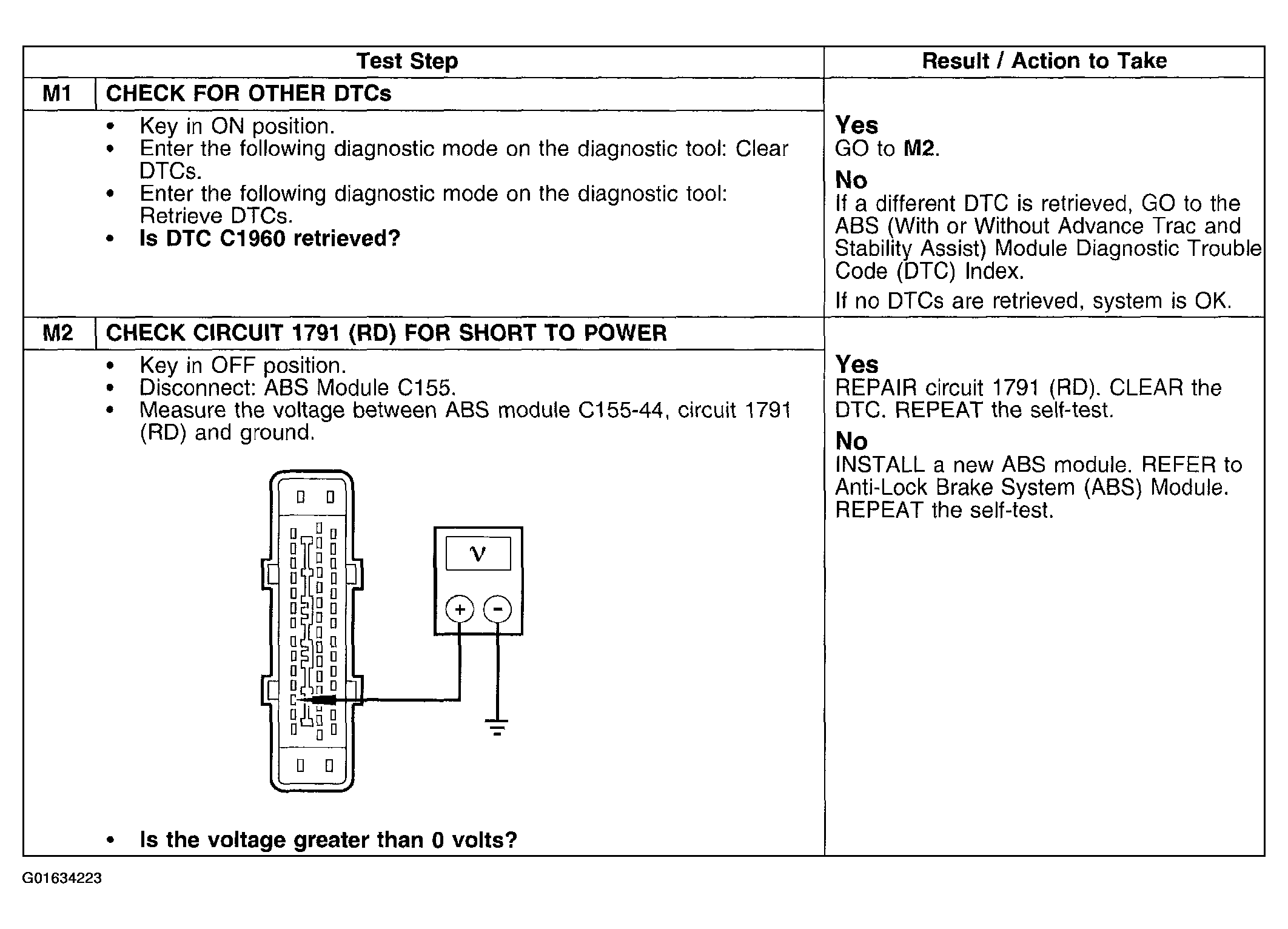

Fig 1: Pinpoint Test M: DTC C1960 - Driver Brake Apply Circuit Fault

G01634223

Courtesy of FORD MOTOR CO.
