Connector Circuit Reference

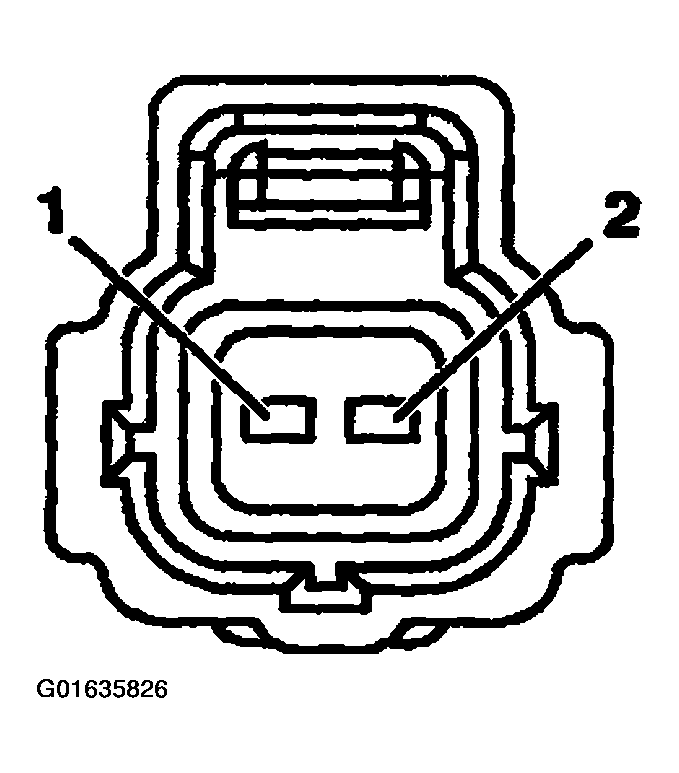

Fig 1: Identifying Washer Pump Motor C137 Connector Terminals
G01635826Courtesy of FORD MOTOR CO.

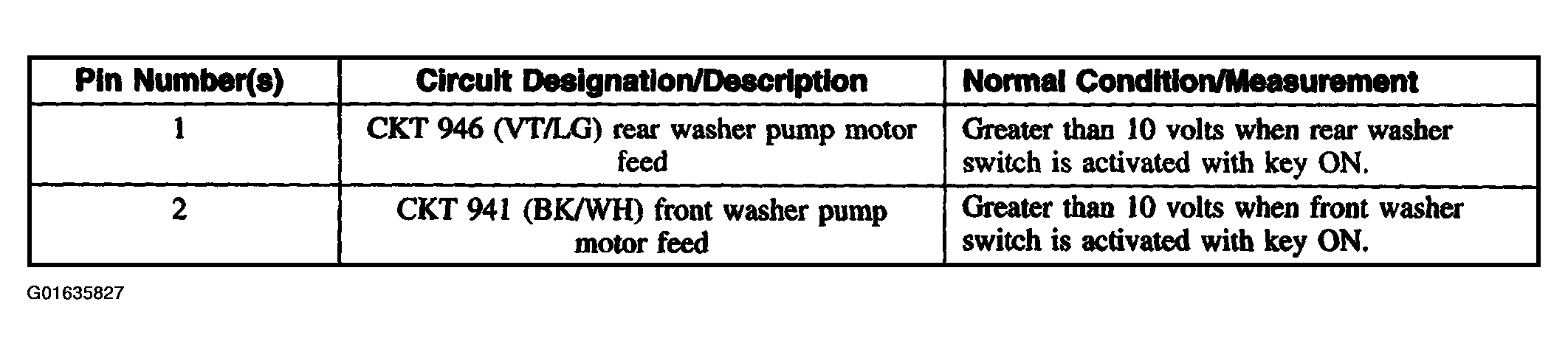

Fig 2: Washer Pump Motor C137 Connector Terminals Specifications
G01635827Courtesy of FORD MOTOR CO.

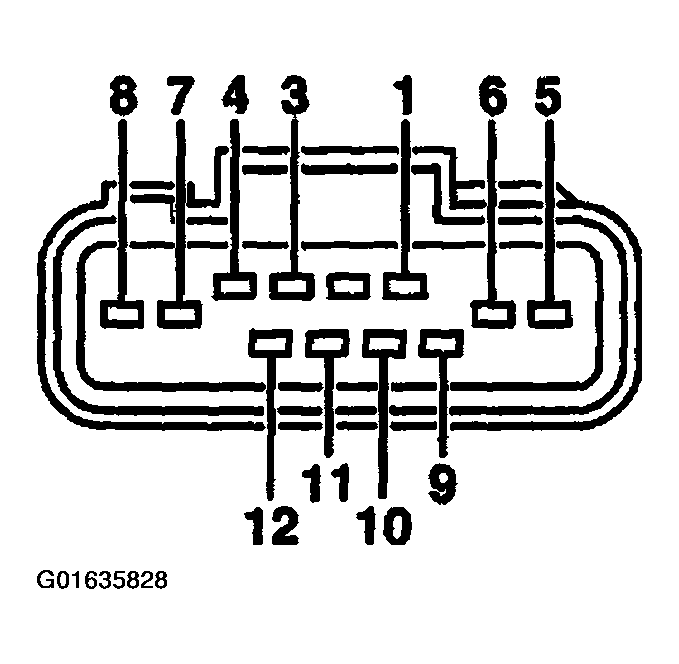

Fig 3: Identifying Windshield Wiper Motor C1348 Connector Terminals
G01635828Courtesy of FORD MOTOR CO.

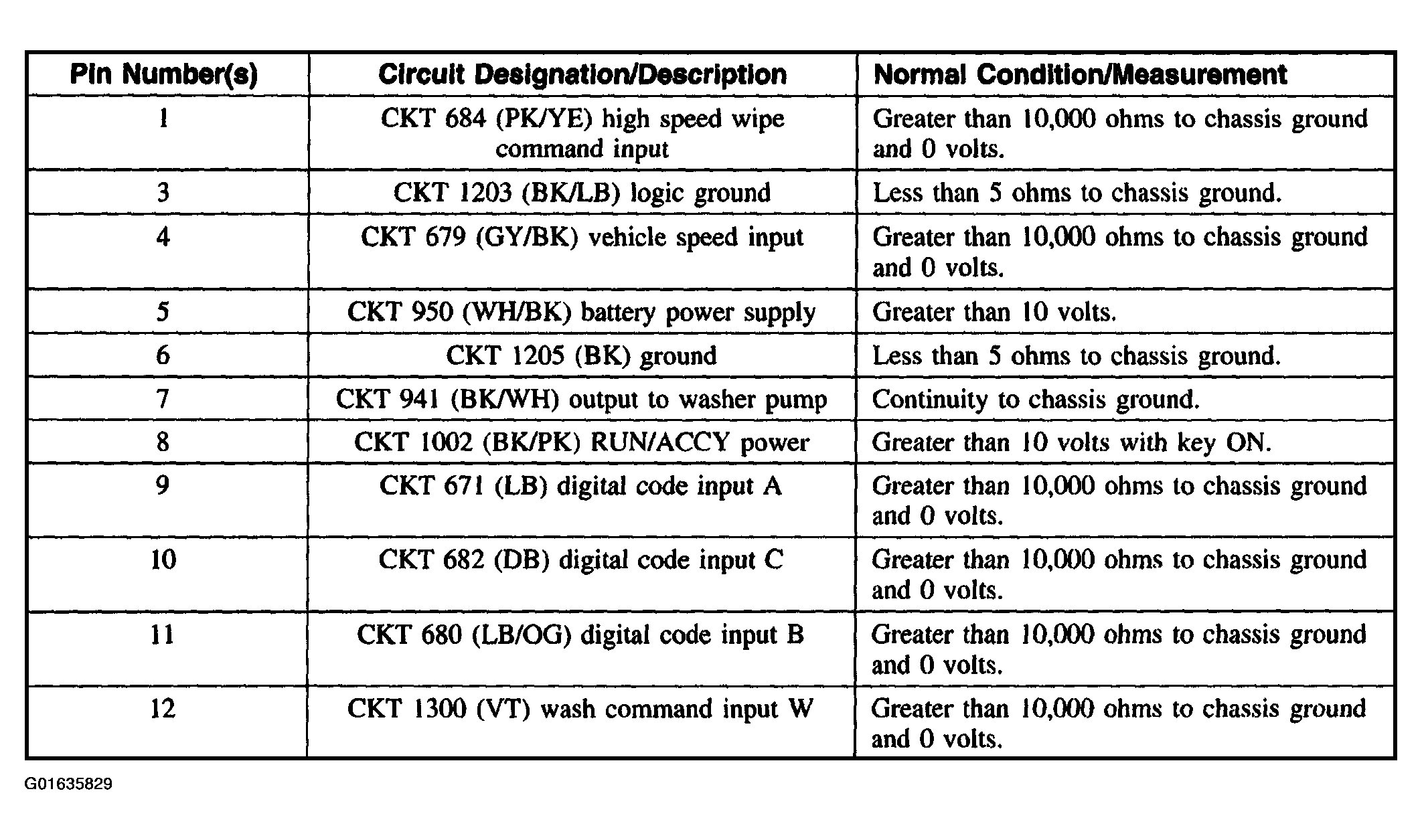

Fig 4: Windshield Wiper Motor C1348 Connector Terminals Specifications
G01635829Courtesy of FORD MOTOR CO.

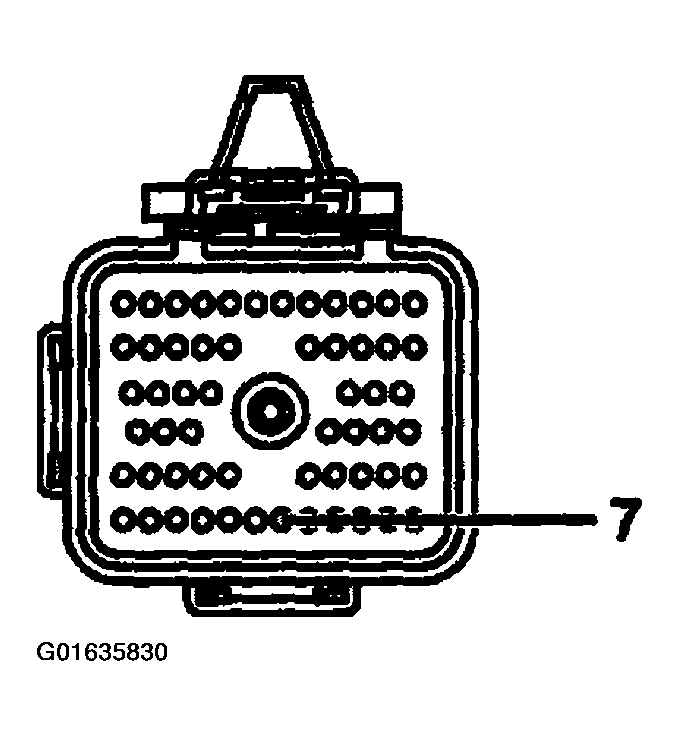

Fig 5: Identifying PCM C175a Connector Terminals
G01635830Courtesy of FORD MOTOR CO.

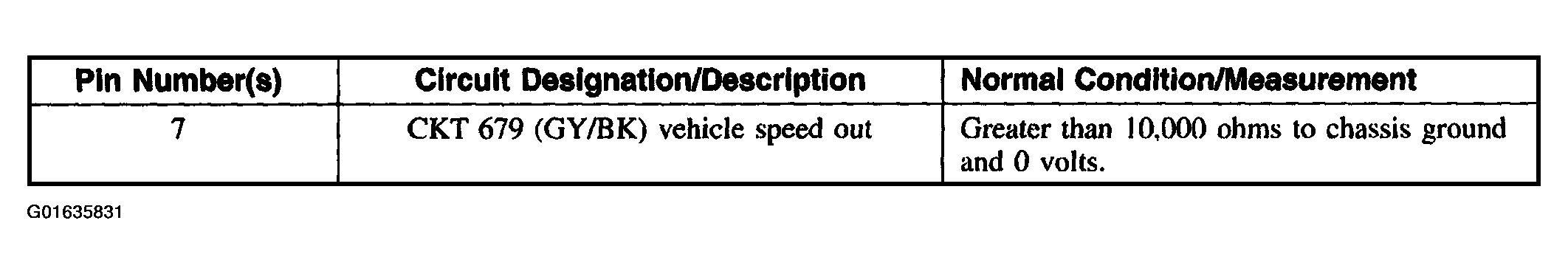

Fig 6: PCM C175a Connector Terminals Specifications
G01635831Courtesy of FORD MOTOR CO.

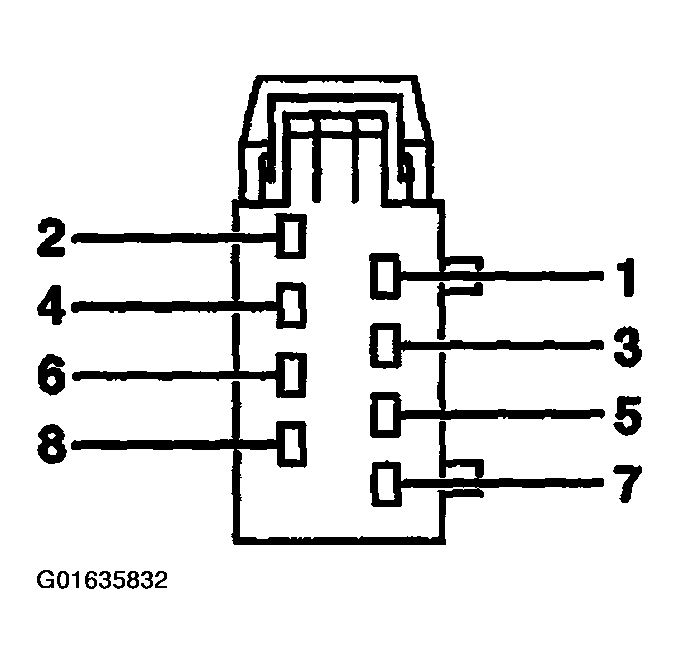

Fig 7: Identifying Multifunction Switch C202a Connector Terminals
G01635832Courtesy of FORD MOTOR CO.

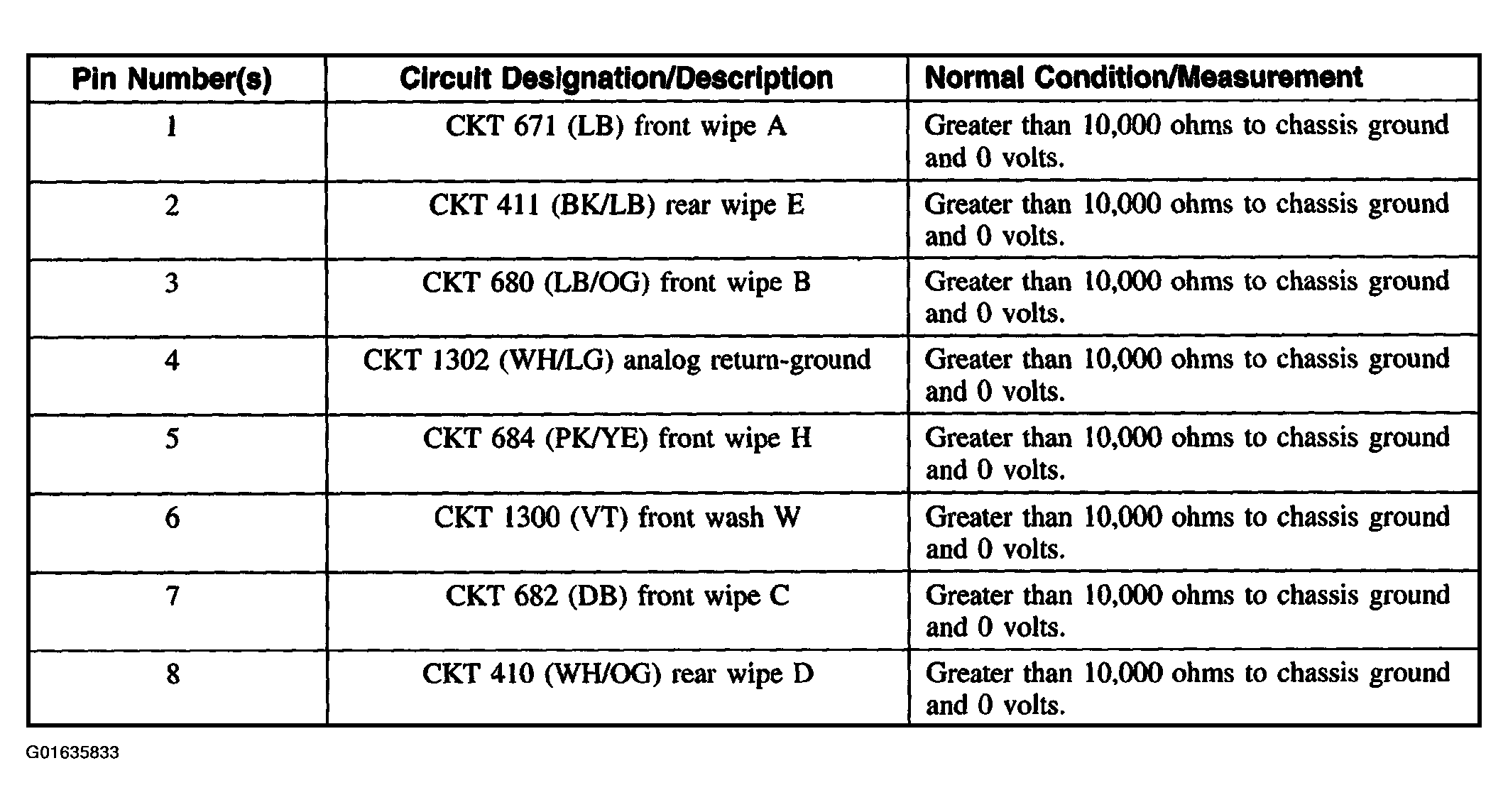

Fig 8: Multifunction Switch C202a Connector Terminals Specifications
G01635833Courtesy of FORD MOTOR CO.

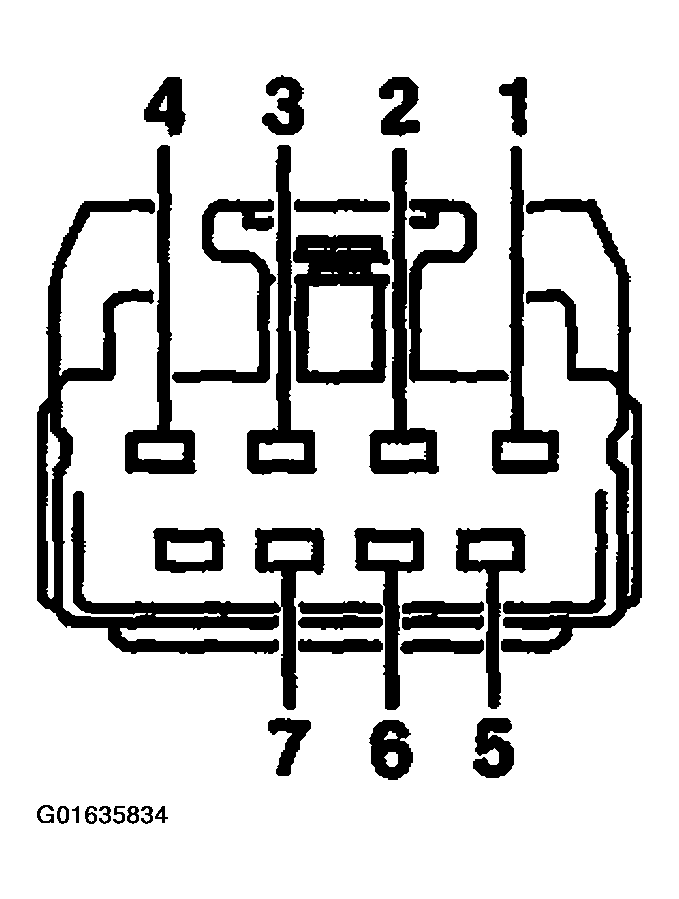

Fig 9: Identifying Rear Wiper Motor C4171 Connector Terminals
G01635834Courtesy of FORD MOTOR CO.

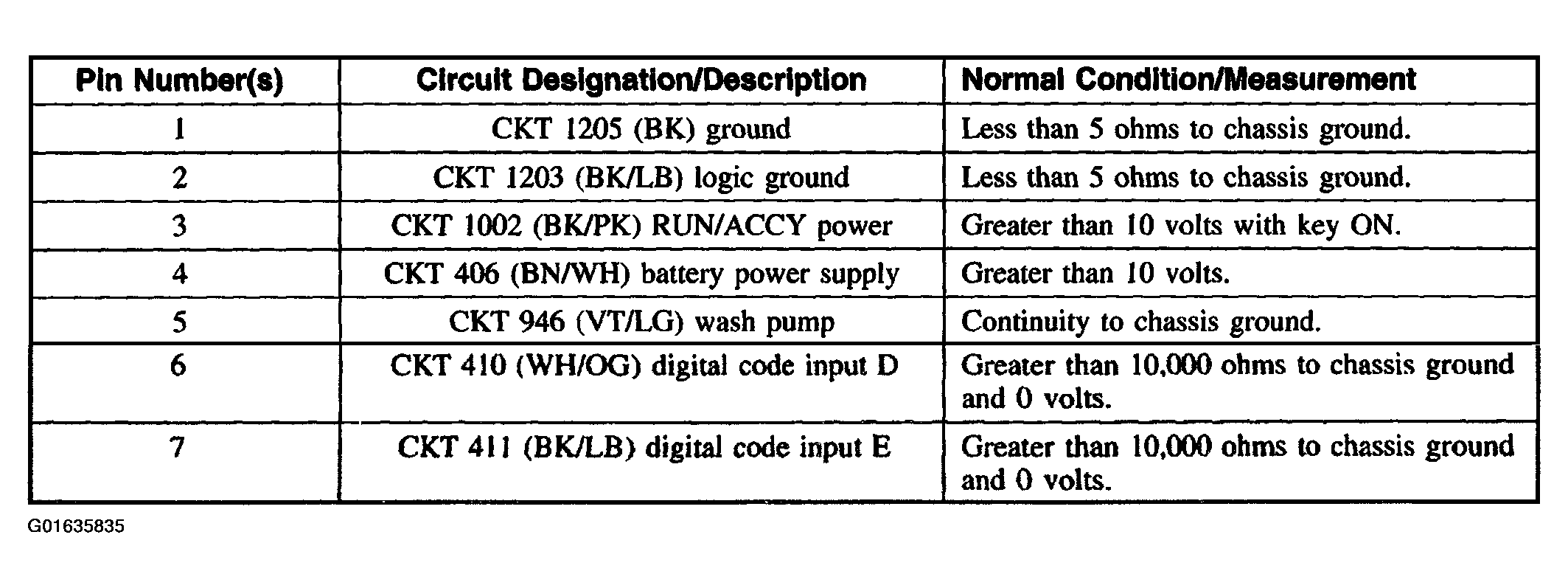

Fig 10: Rear Wiper Motor C4171 Connector Terminals Specifications
G01635835Courtesy of FORD MOTOR CO.
