Test Procedure

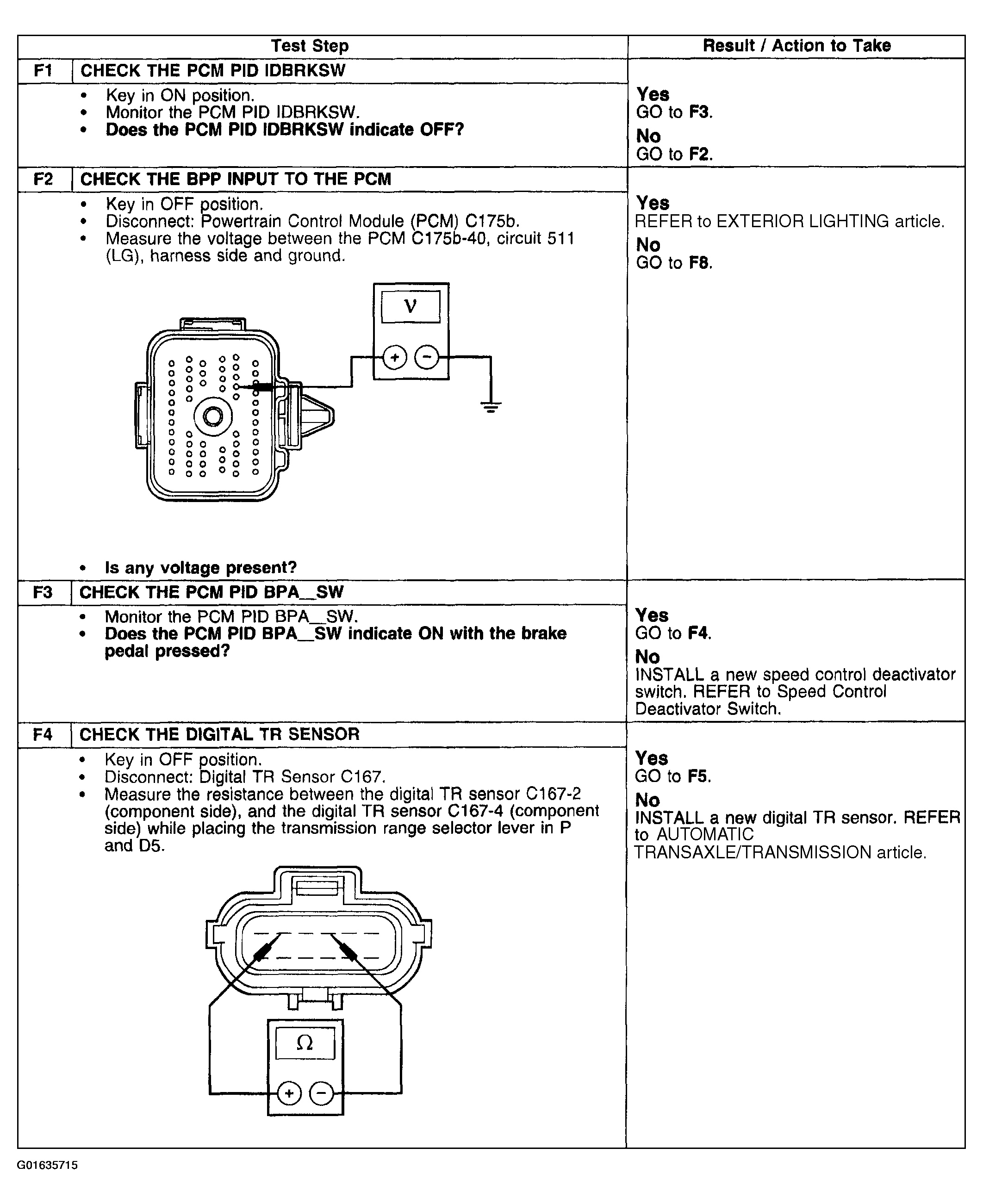

Fig 1: Pinpoint Test F: The Speed Control Is Inoperative-No DTCs (Steps F1-F4)
G01635715Courtesy of FORD MOTOR CO.

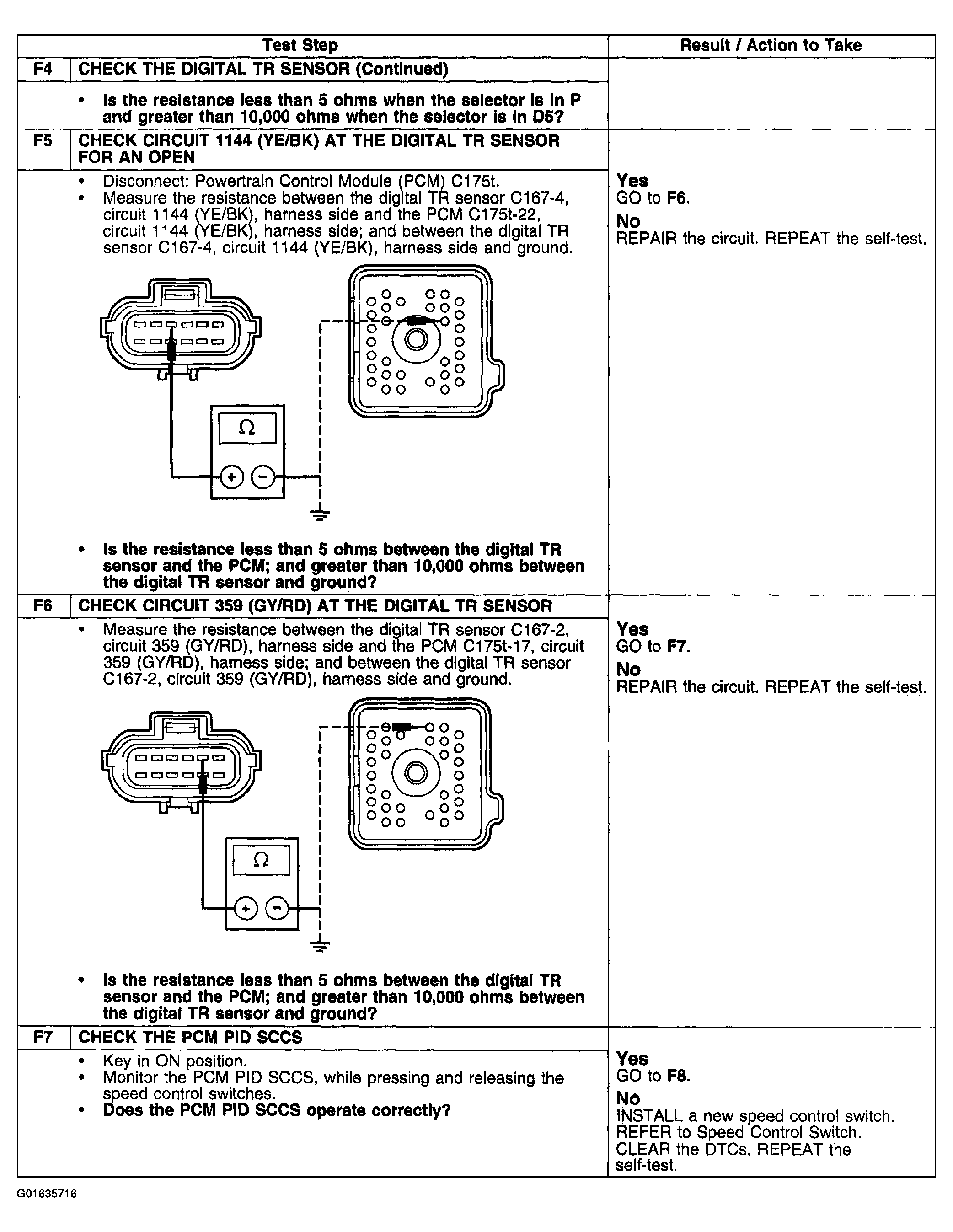

Fig 2: Pinpoint Test F: The Speed Control Is Inoperative-No DTCs (Steps F4 Cont.-F7)
G01635716Courtesy of FORD MOTOR CO.

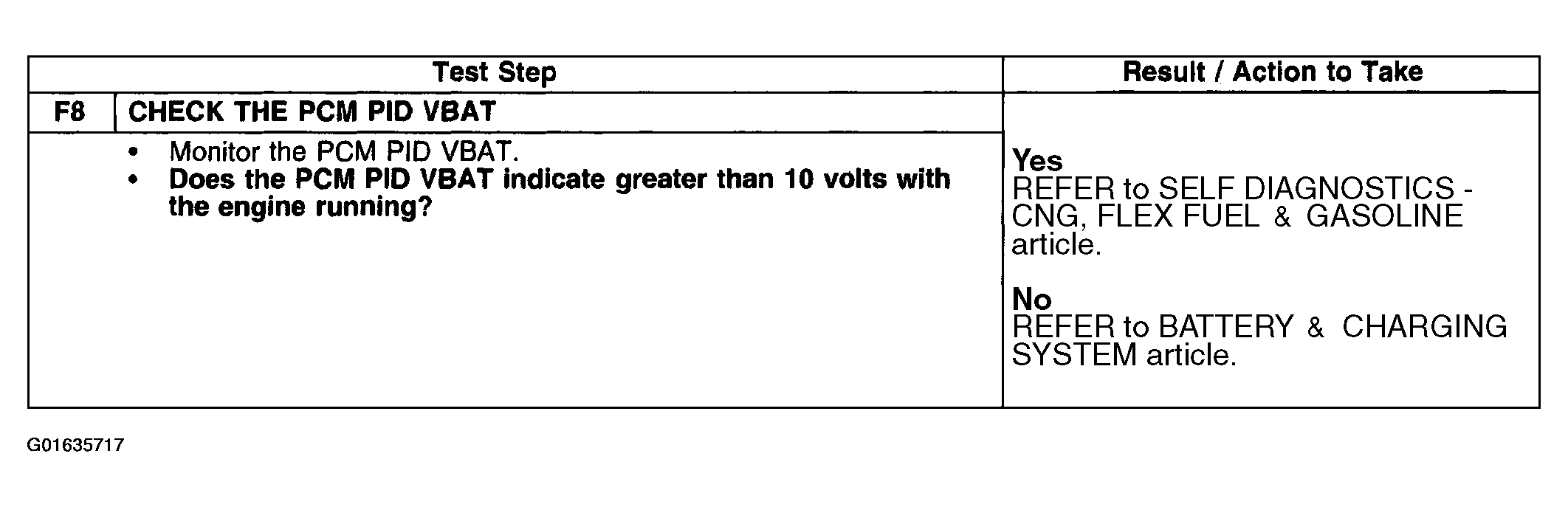

Fig 3: Pinpoint Test F: The Speed Control Is Inoperative-No DTCs (Step F8)
G01635717Courtesy of FORD MOTOR CO.
