Test Procedure

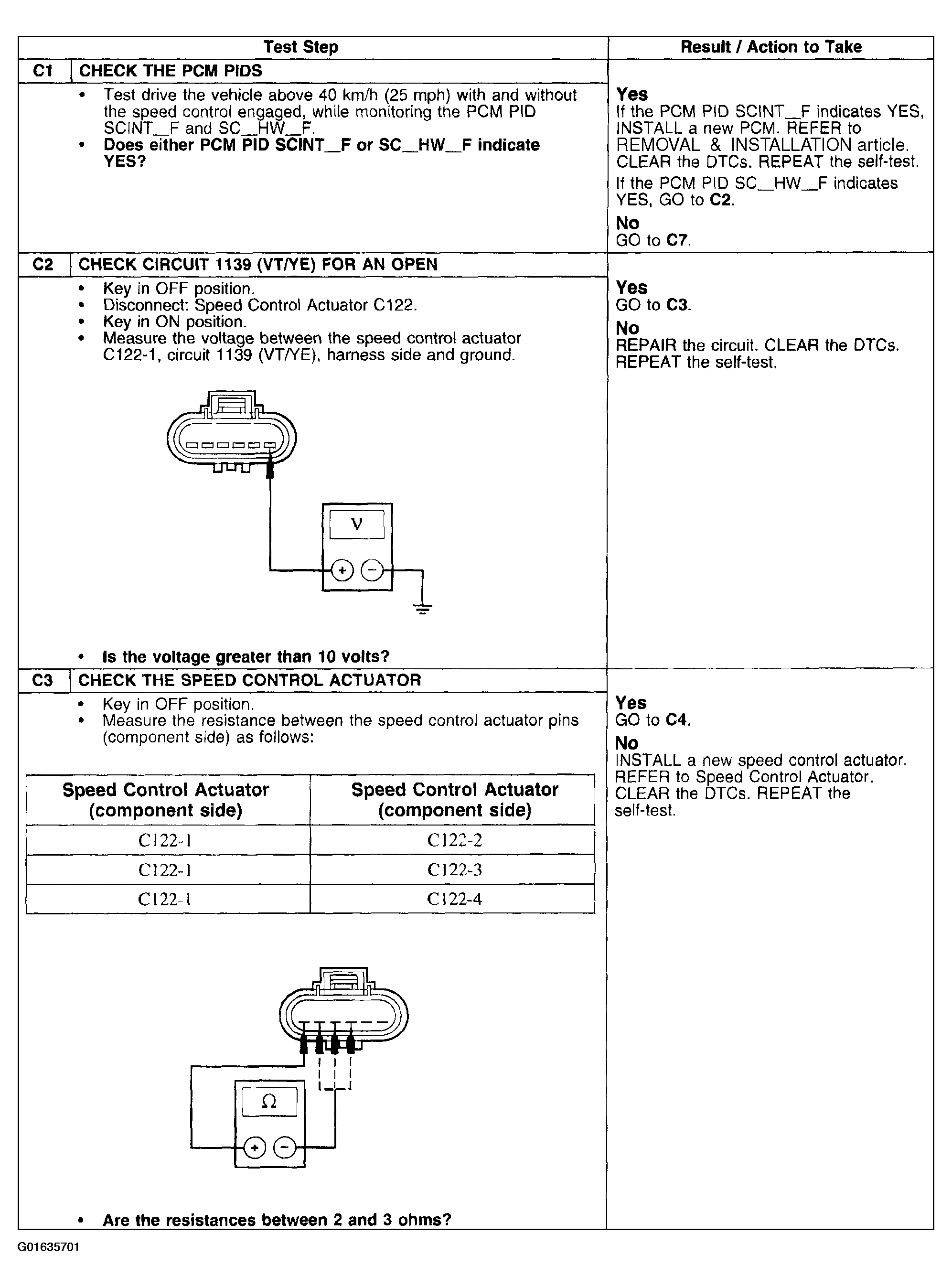

Fig 1: Pinpoint Test C: DTC P1567-NGSC Driver Fault (Steps C1-C3)
G01635701Courtesy of FORD MOTOR CO.

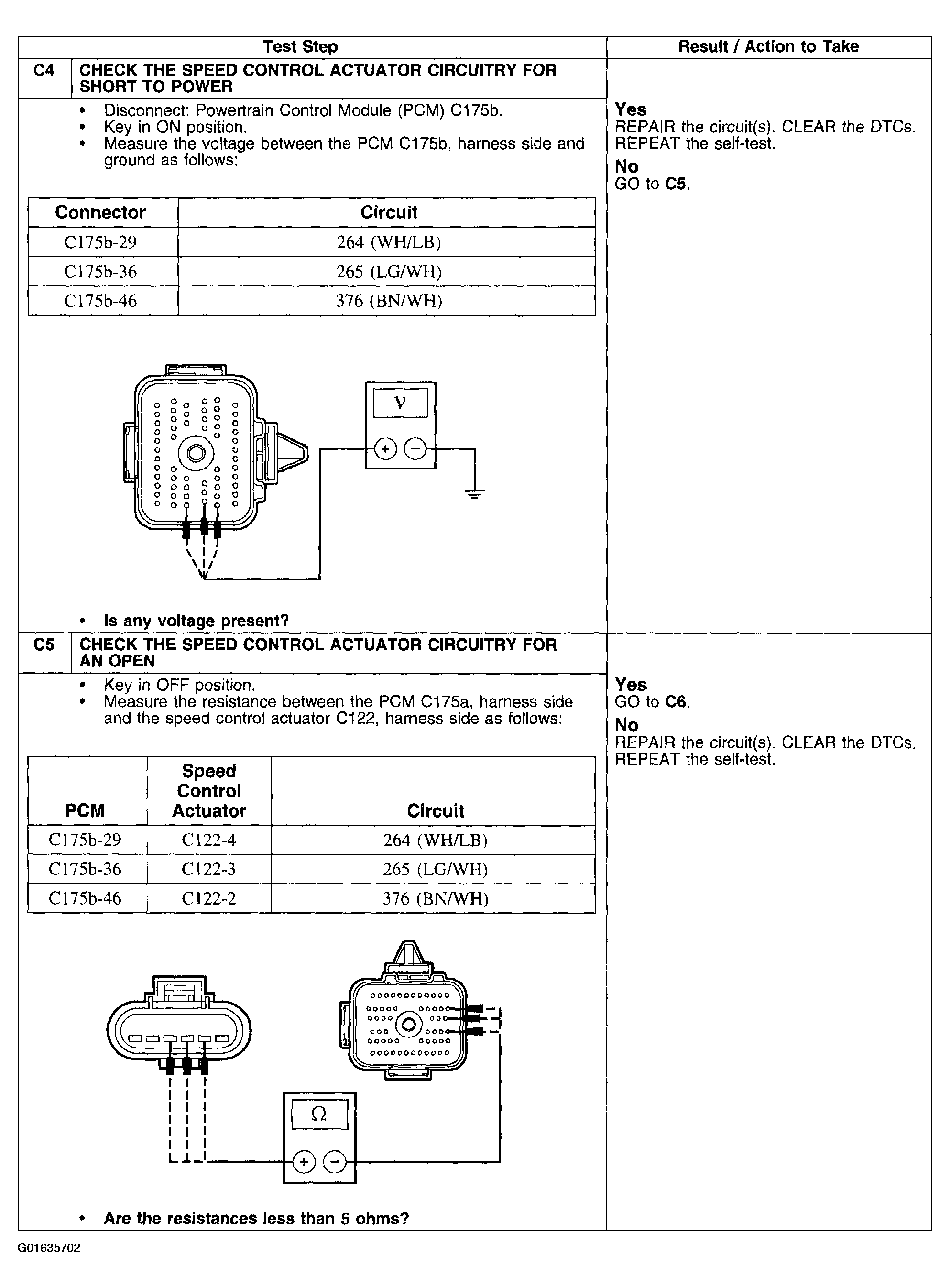

Fig 2: Pinpoint Test C: DTC P1567-NGSC Driver Fault (Steps C4 & C5)
G01635702Courtesy of FORD MOTOR CO.

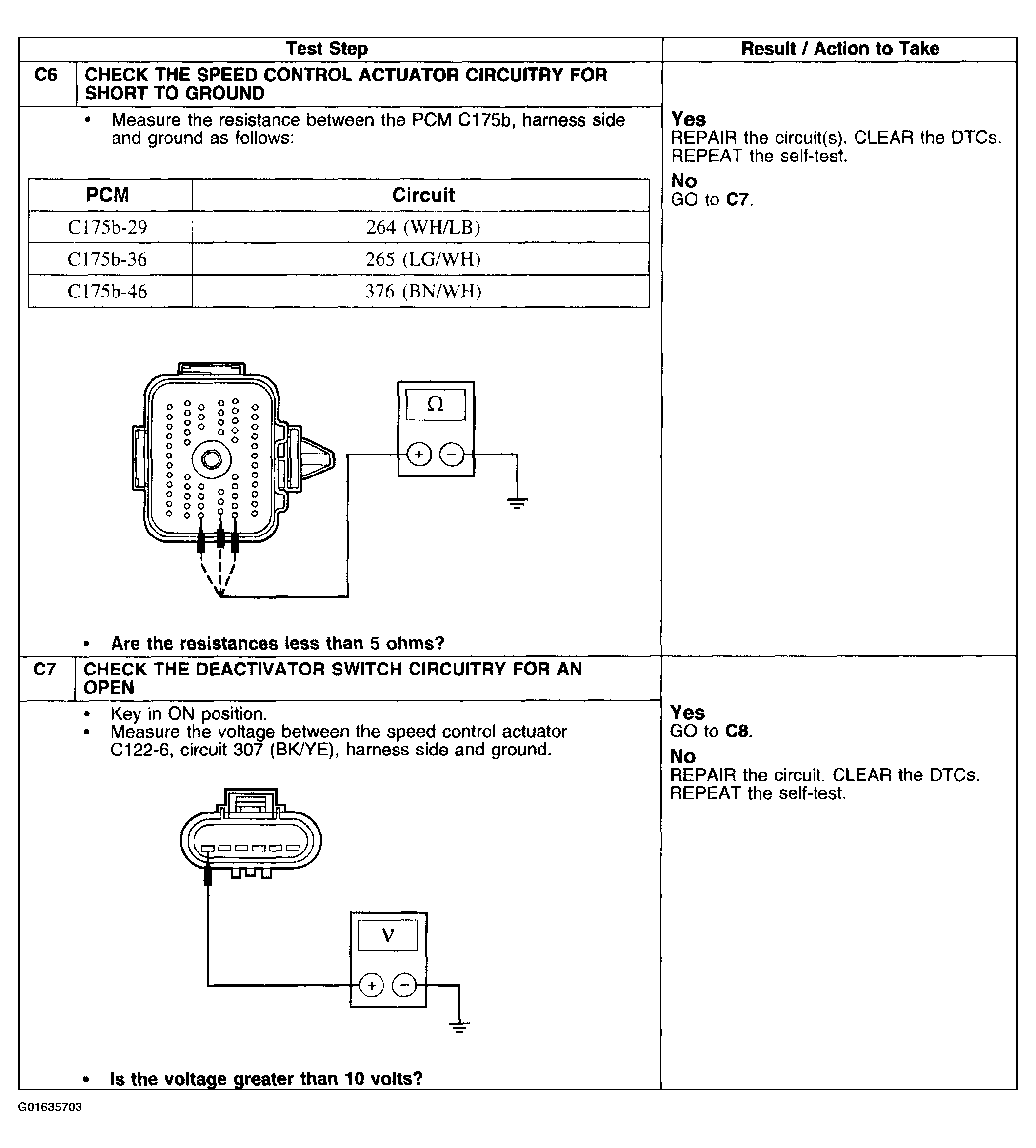

Fig 3: Pinpoint Test C: DTC P1567-NGSC Driver Fault (Steps C6 & C7)
G01635703Courtesy of FORD MOTOR CO.

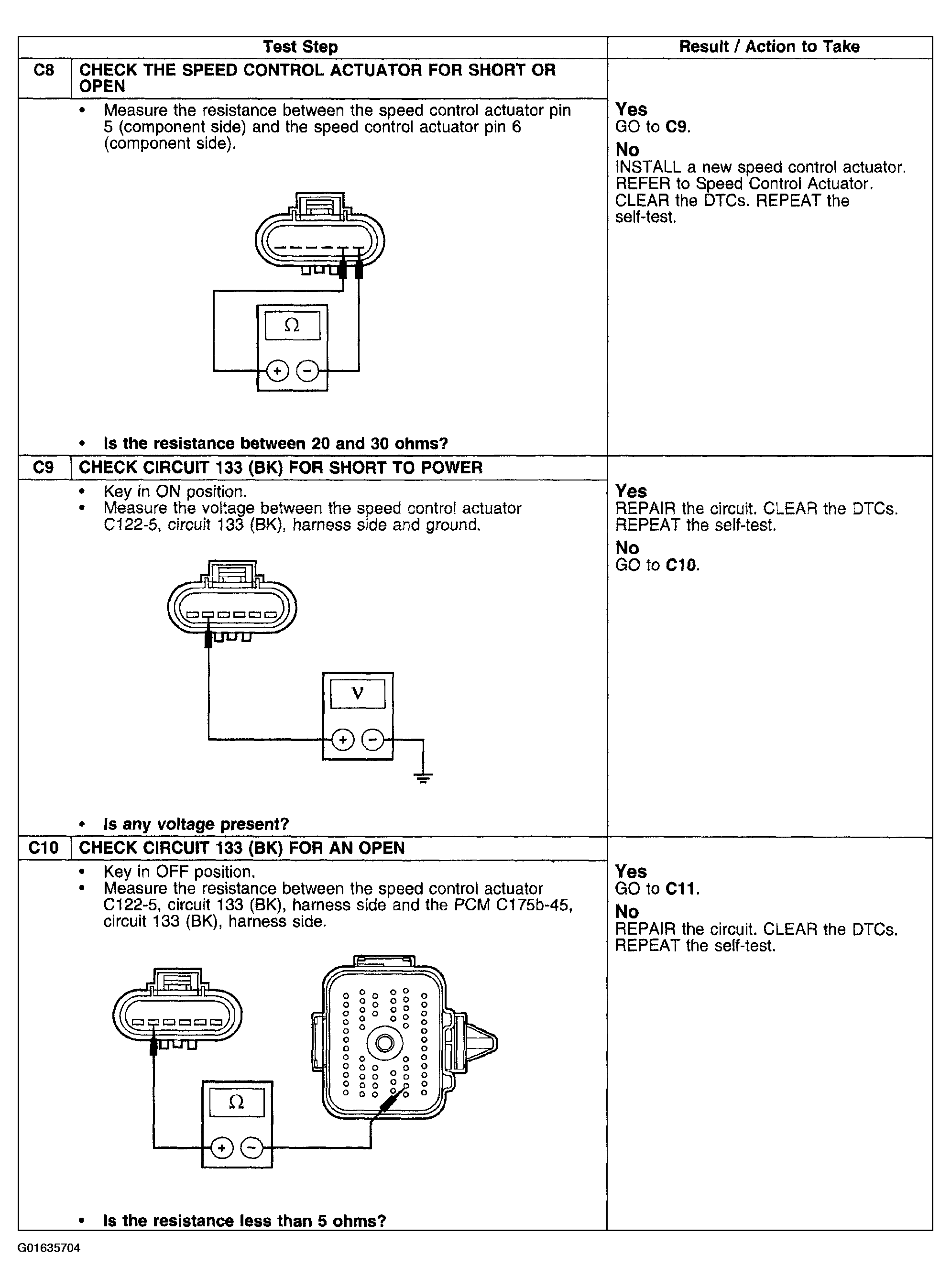

Fig 4: Pinpoint Test C: DTC P1567-NGSC Driver Fault (Steps C8-C10)
G01635704Courtesy of FORD MOTOR CO.

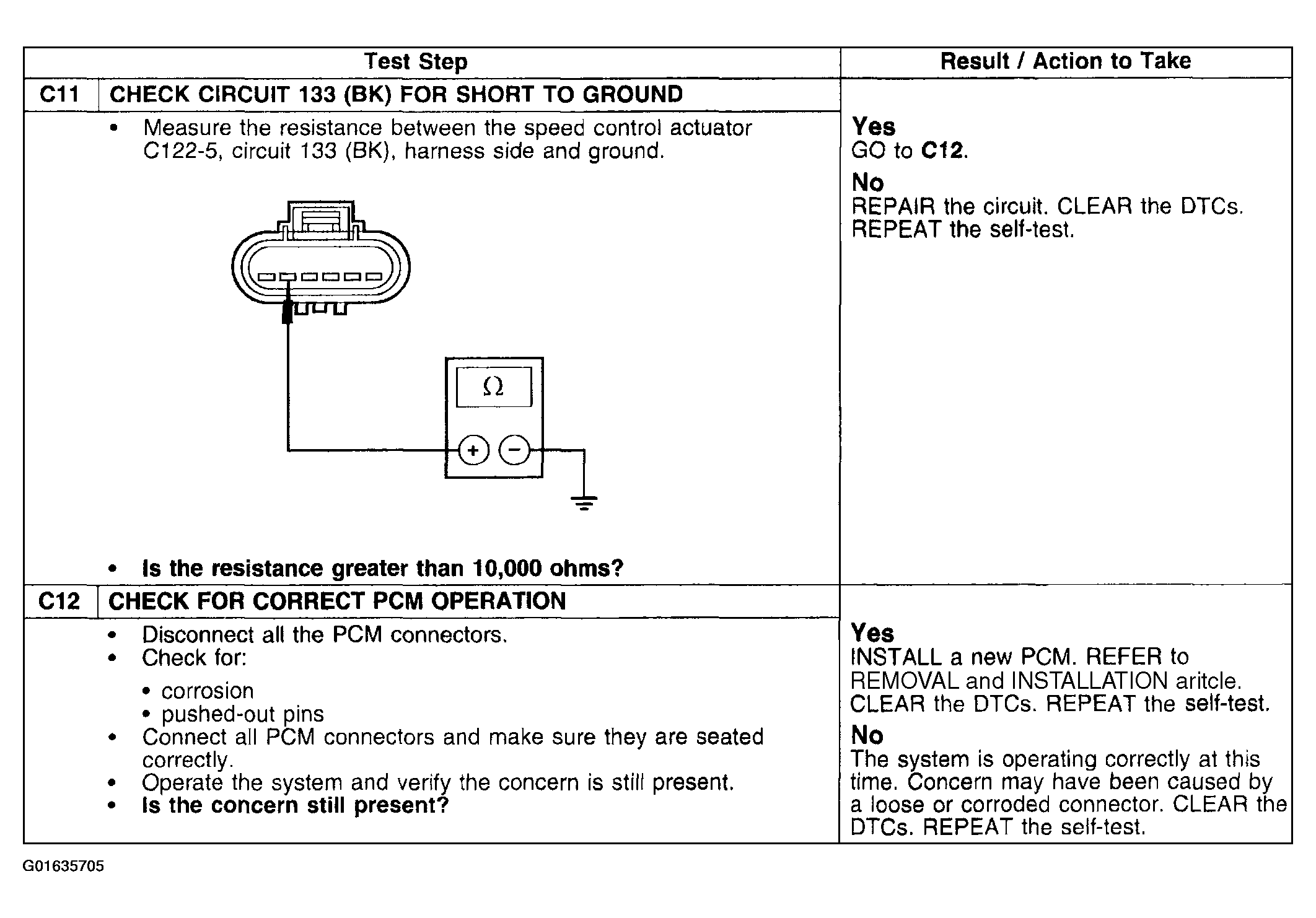

Fig 5: Pinpoint Test C: DTC P1567-NGSC Driver Fault (Steps C11 & C12)
G01635705Courtesy of FORD MOTOR CO.
